8.
9.
FR8
e30bg102.10
A
B
C
A

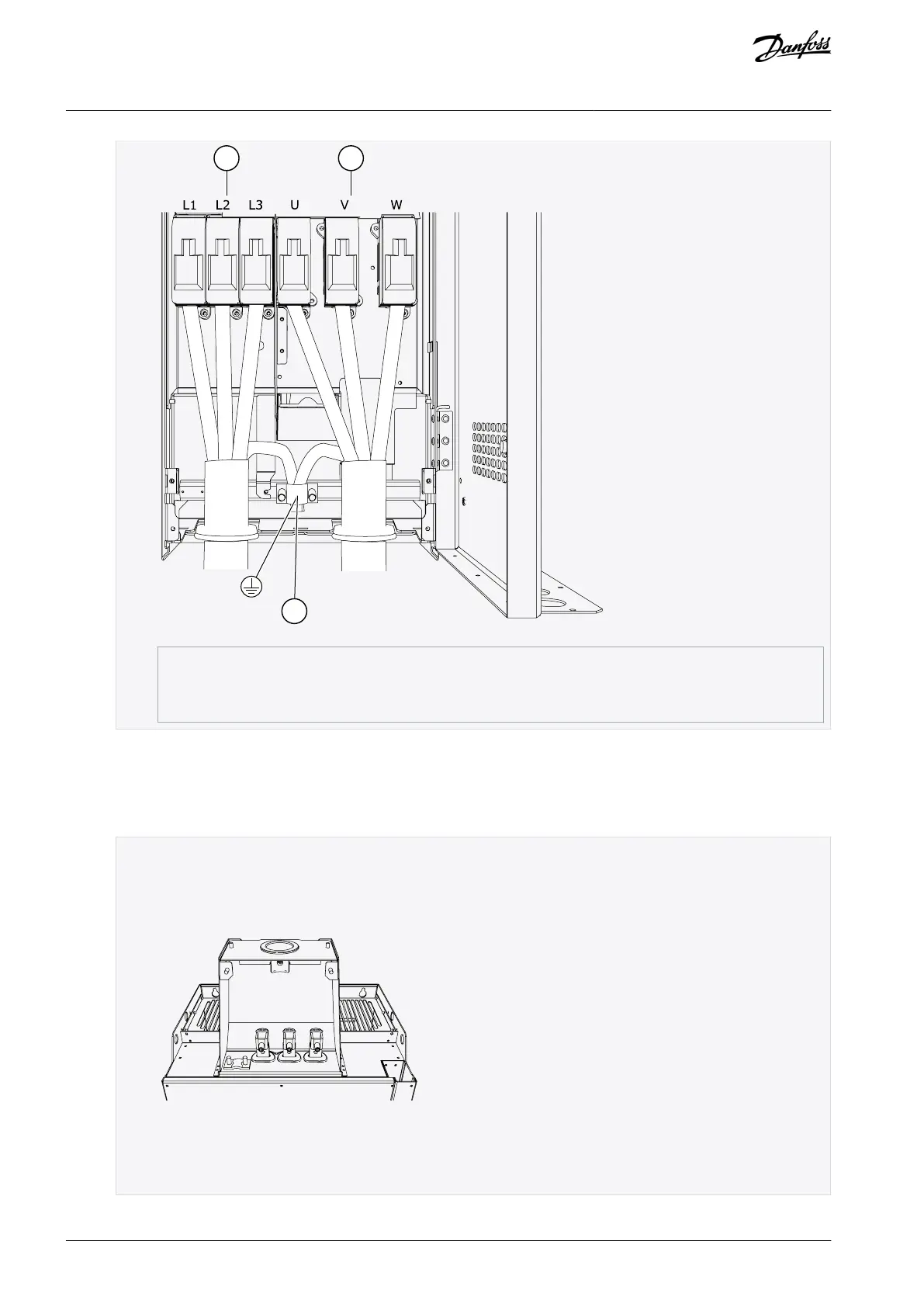

Mains terminals
B
Motor terminals
C
Grounding terminal
Connect a grounding cable from the grounding connector at the lower right hand side of the power unit frame to the PE
busbar of the enclosure. Use a copper grounding cable with a cross-sectional area of at least 2*35 mm
2
per power unit,
which obeys the local regulations for grounding cables.
If an external brake resistor (option) is used, connect its cable to the appropriate terminal (R+/R–). Also make sure that the
AC drive is equipped with a brake chopper (indicated in the type code of the AC drive).
B-
B+
R+
R-
e30bg076.10
AQ468246143802en-000201 / DPD0088854 | Danfoss A/S © 2023.09
Electrical Installation
VACON® NXP IP00 Drive Modules
Operating Guide
