1.
2.
Table 19: Minimum Distances between Cables
The distance between ca-
bles [m]
The length of the shielded cable
[m]
The distance between ca-
bles [ft]
The length of the shielded cable
[ft]
0.3
≤ 50
1.0
≤ 164
1.0
≤ 300
3.3
≤ 984
Table 20: Maximum Cable Lengths with dU/dt Filter
Maximum cable length with dU/dt filter
Switching frequency
100 m (328 ft) at 500 V level
3.6 kHz
150 m (492 ft) at 690 V level
(1)
1.5 kHz
1
For longer cable lenghts, contact Danfoss.
6.7.2 Installing the Cables, FR8
Follow these instructions to install the cables.
For information on how to comply with the UL regulations in cable installations, see 6.1.2 UL Standards on Cabling.
Make sure that the delivery contains all necessary components.
Mount the units according to instructions in section Mounting the unit.
Procedure
Strip the motor and mains cables. See 12.6 Cable Stripping Lengths.

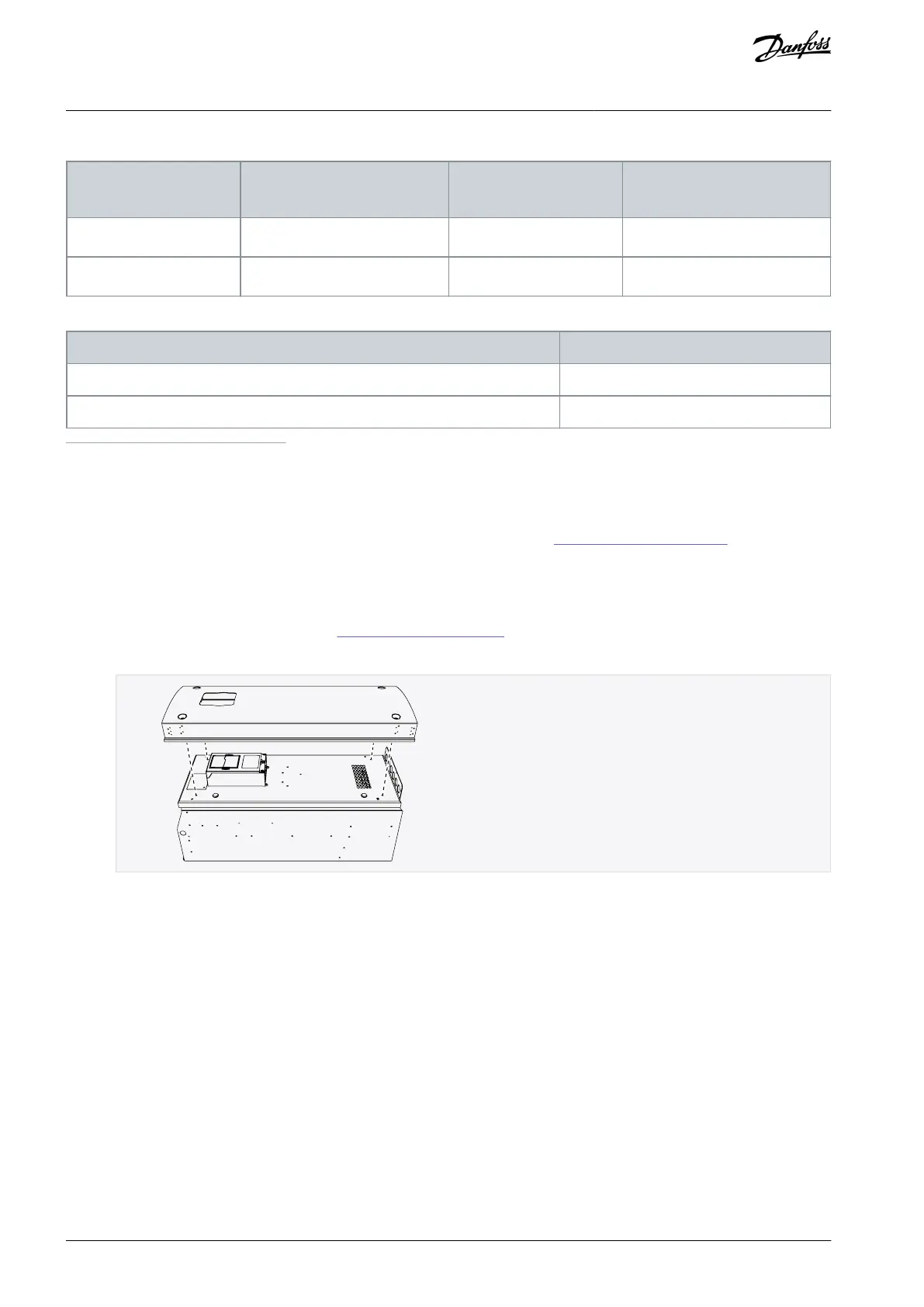

Open the front cover.
e30bg031.10
AQ468246143802en-000201 / DPD0088852 | Danfoss A/S © 2023.09
Electrical Installation
VACON® NXP IP00 Drive Modules
Operating Guide
