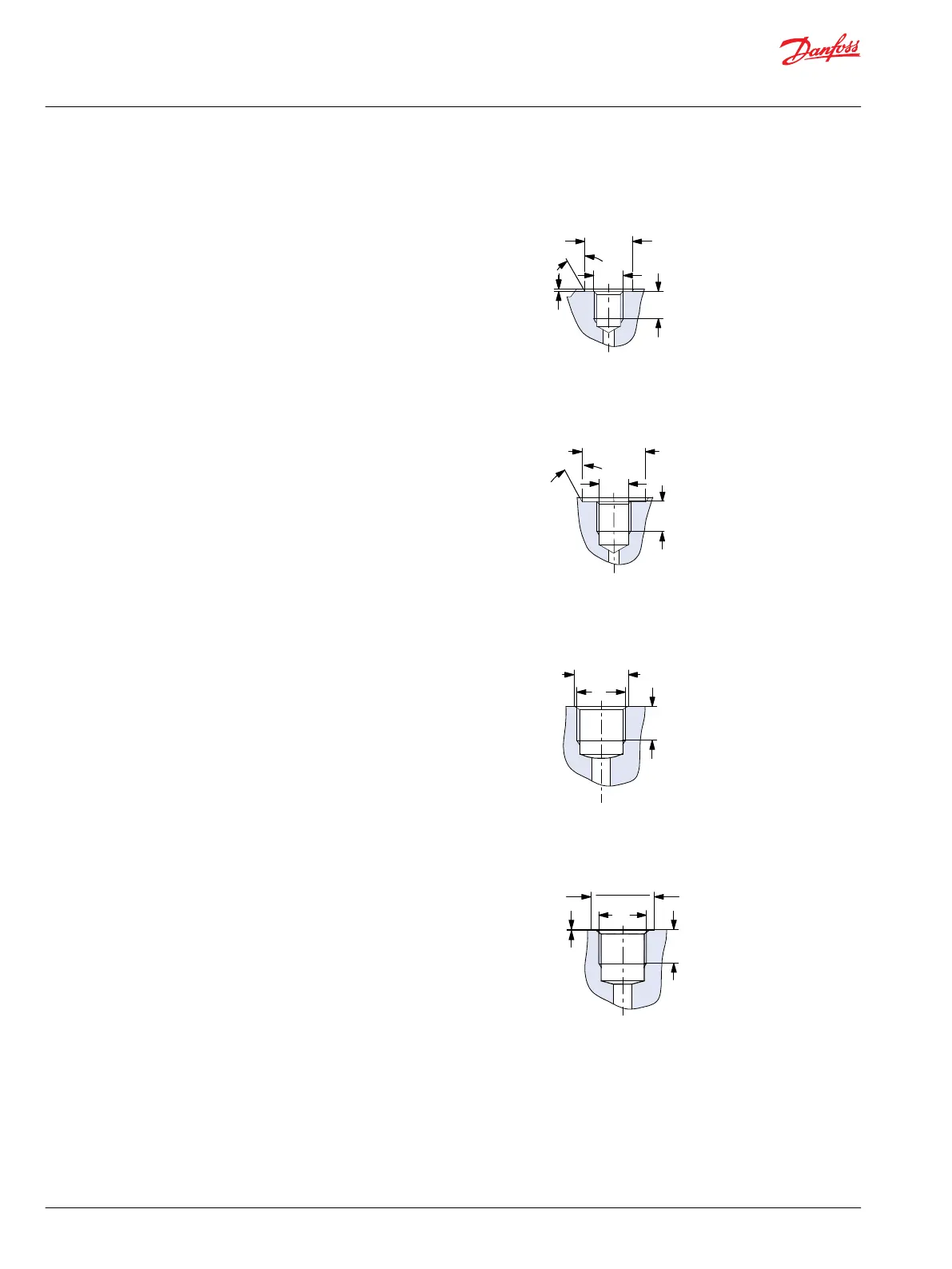

Port thread versions for OSPB LS, OSPC LS/LSR, OSPF LS, OSPD LS/LSR, OSPL LS, OSPBX LS, OSPCX LS, OSPLX LS
A: G port w. spot face (LS in OSPB and OSPL with no
valves)
K: DIN 3852-2 - G 1/4
K
min.Ø21[0.83]
min.12[0.479]
A
30°
1[0.04]
150-603.10-A
B: G port w. spot face (LS in OSPC/F/D/Q and OSPL with
valves)
L: DIN 3852-2 - G 1/4
min.12[0.47]
min.Ø28[1.10]
B
30°
L
150-603.10-B
C: G ports (P, T, L, R)
M: DIN 3852-2 - G 1/2
150-603.10-C
min.15[0.59]
Ø21.5[0.846]
M
C
D: G ports w. spot face (P, T, L, R)
N: DIN 3852-2 - G 1/2
150-603.10-D
0.6[0.024]
Ø28.3[1.114]
Ø28.6[1.126]
N
min.15[0.59]
D
Technical Information
OSPB/C/F/D/L LS Steering Units, OLS Priority Valves, OSQ Flow Amplifiers
LS Steering Units OSPB, OSPC, OSPF, OSPD, OSPL
28 |
©
Danfoss | April 2021 BC152886483962en-001003
