INSTALLATION INSTRUCTIONS
INSTALLATION IN A CASEMENT WINDOW
If you are installing the air conditioner in a
casement window, follow the above steps for a
sliding window but keep the following points in
mind:
• Open the window the maximum amount to allow
for clearance of the cabinet.
• The crank handle should be removed to allow
the platform assembly to be fastened to the
window jamb.
• If the window cannot open far enough for the
cabinet to clear the window, (more than 15
1/2”) remove the window entirely by drilling
out the rivets. Bolts can service as the pivots in
future.
• To avoid the crank handle and window
clearance problems, install the appliance in a
stationary sash section. The horizontal mullion
and the two glass panels must be removed
before installation.
ALTERNATE WINDOW JAMB APPLICATIONS
To install the air conditioner in windows that do
not have flanges or wood stops on the top and
side jambs, the channels and panel frame must fit
against a mating flange (or 1/16” maximum thick
angle) attached to the window jambs.

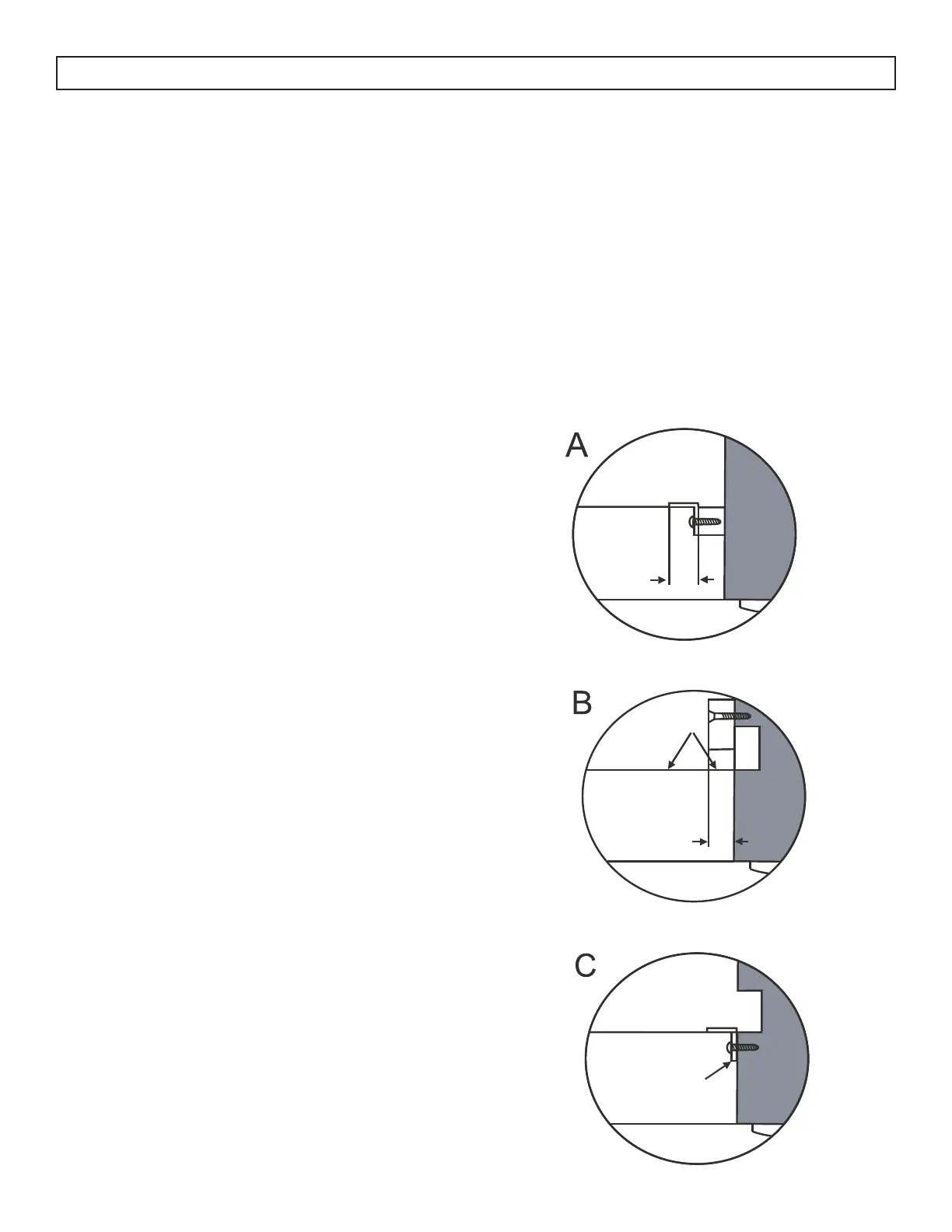

Figure A shows this angle installed.
Figures B and C show alternate treatments.
On the sash side of the opening the leading corner
of the inner sash becomes the flange. You can
purchase the angle strip locally.
3/4” ~ 1”
3/4” ~ 1”
1” x 1”
or
3/4” x 3/4”
