INSTALLATION INSTRUCTIONS
4-WIRE POWER CORD INSTALLATION
WARNING
The neutral wire of the supply circuit is connected to the neutral terminal located in the center of the
connector block. The power leads must be connected to the outside (brass coloured) terminals. The 4th
grounding lead must be connected to the frame of the range with the grounding plate and grounding
screw.

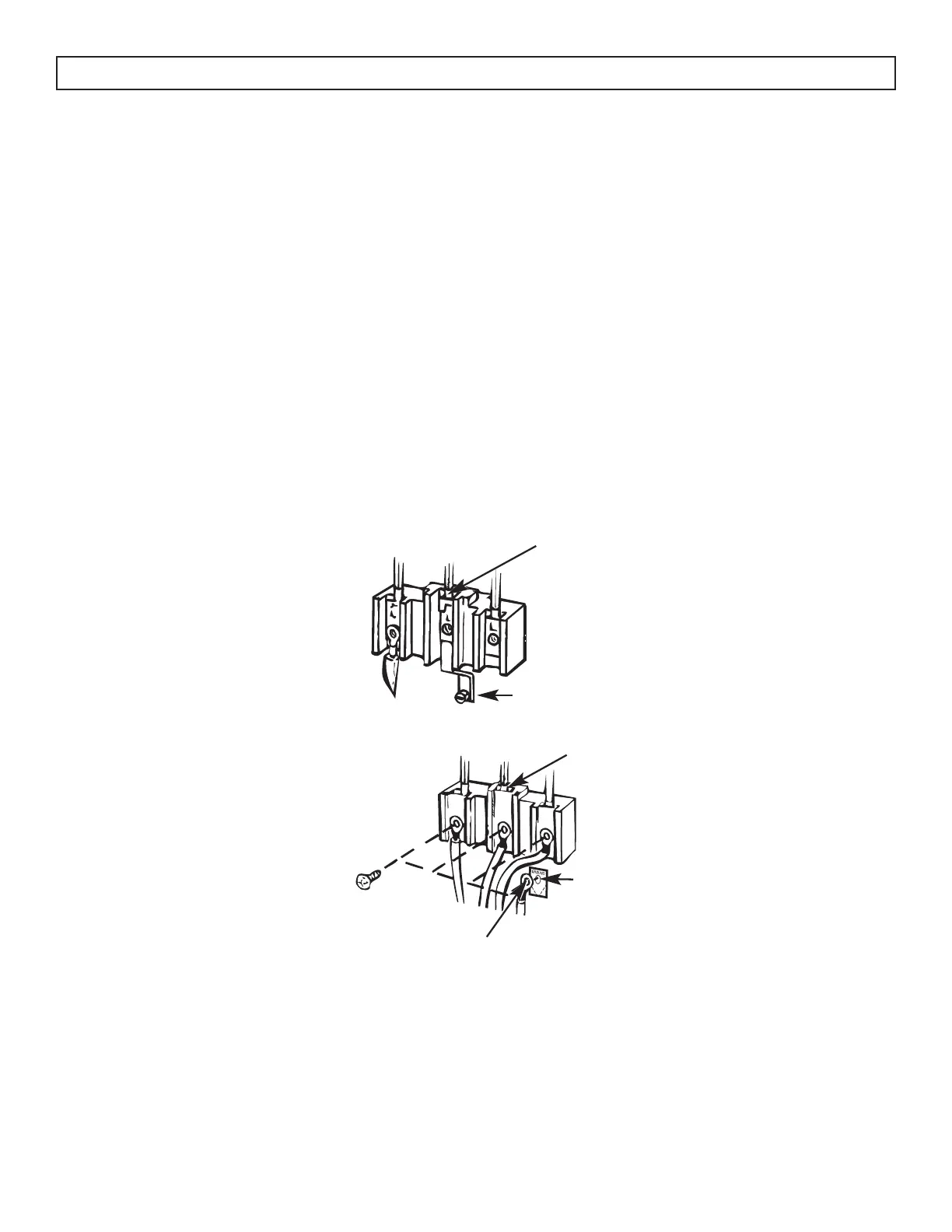

1. Remove the 3 screws from the connector block.
2. Remove the grounding screw and strap from the connector block middle location and the screw
connection to the frame of the range.
3. Insert screws through each power cord terminal ring and into the connector block until the screw
engages the nut. Be certain that the center wire is connected to the center screw of the connector block.
Tighten the screws securely.
4. Attach the ground wire to the frame of the range.
5. Replace the terminal block access plate.
