11

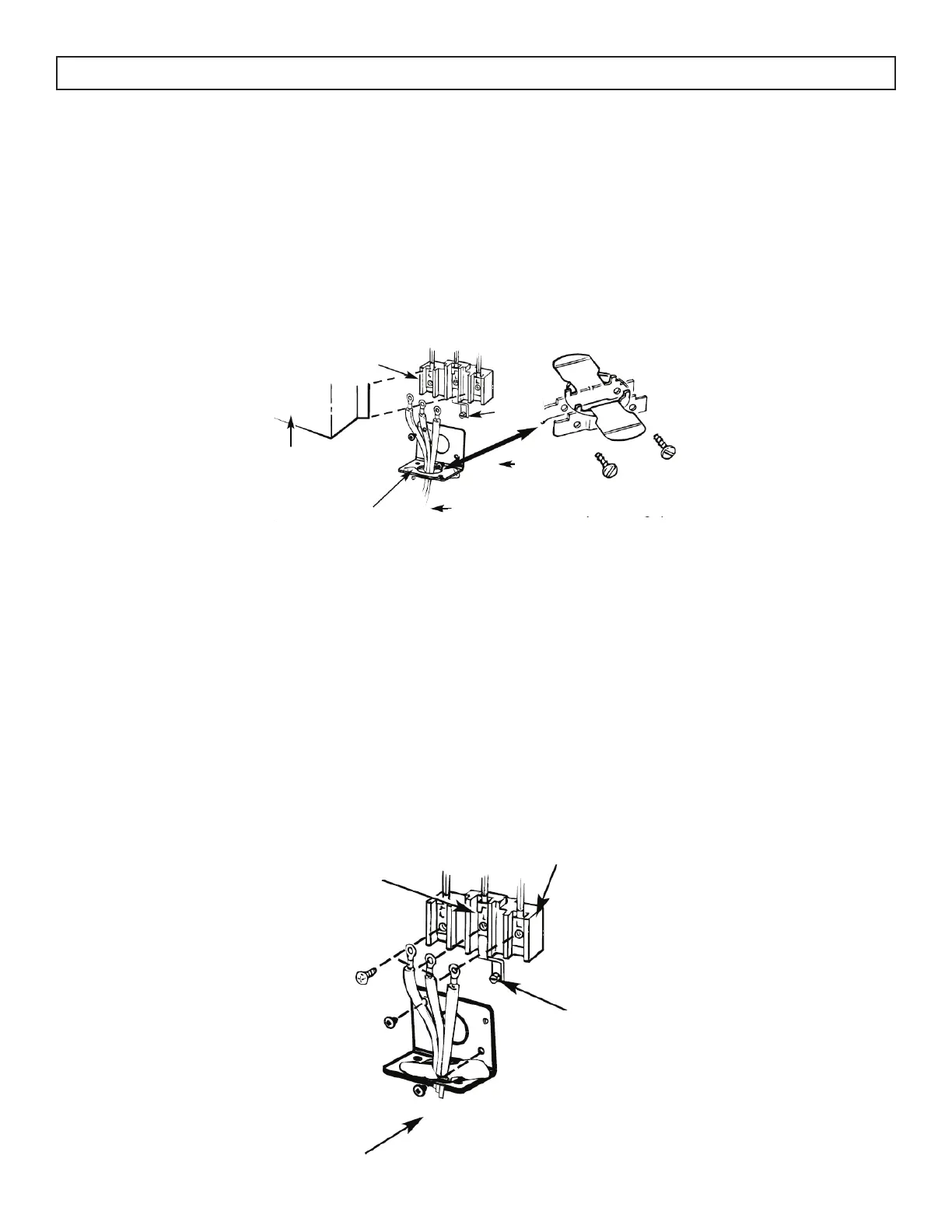

INSTALLATION INSTRUCTIONS
Neutral terminal
Connector block
Ground strap
Power cord
3-WIRE POWER CORD INSTALLATION
WARNING
The neutral or ground wire of the power cord must be connected to the neutral terminal located in the
center of the connector block. The power leads must be connected to the outside (brass colored) terminals.
Remove the 3 wire terminal screws from the connector block.
Insert screws through each power cord terminal ring and into the connector block until the screws engage
the nuts. Be certain that the center wire is connected to the center screw of the connector block.
Tighten screws securely.
Do NOT remove ground strap connection.
Connector box
Ground
strap
Strain relief bracket
(Provided with range cord.
Not part of range)
Power cord
Strain relief
Wiring cover
(shown removed)
Bracket
POWER CORD STRAIN RELIEF INSTALL
Only a 4-conductor power-supply cord kit rated 240 volts, 40 amperes and marked for use with ranges
must be used. Assemble the strain relief in the hole. Insert the power cord through the strain relief and
tighten. Allow enough slack to easily attach the cord terminals to the connector block. If tabs are present at
the end of the winged strain relief, they can be removed for better fit.
Note: Do not install the power cord without a strain relief. The strain relief bracket should be installed
before reinstalling the rear range wiring cover.
