Air Conditioner Service Manual
40

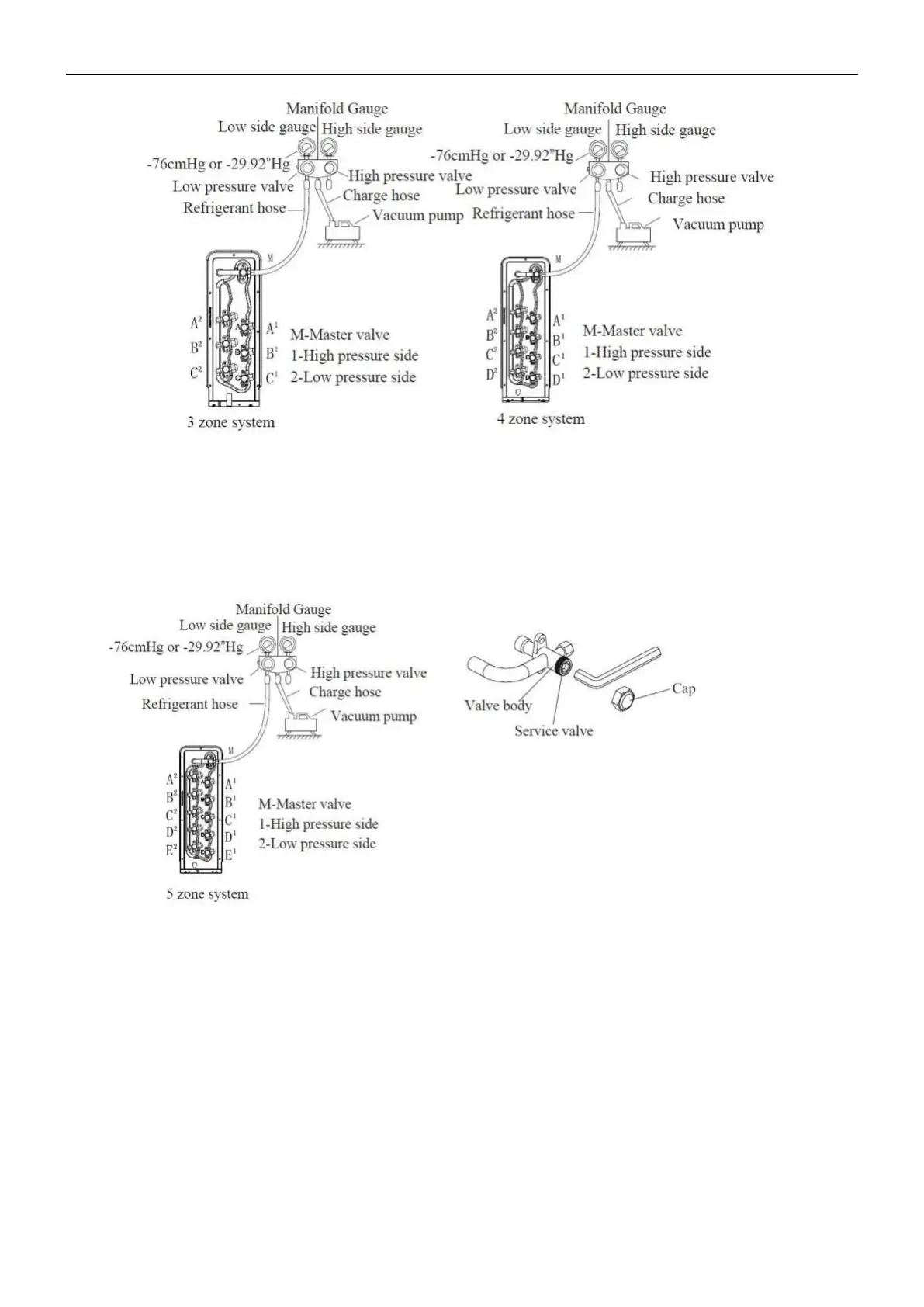

1. Connect the refrigeration hose from the low side manifold gauge to themaster service valve port on the
outdoor unit.
2. Connect charge hose from the manifold gauge to the vacuum pump.
3. Open the low pressure side service valves (A2, B2, C2, etc.) if the lineset was connected. But be careful
not to open the high pressure side service valves (A1, B1, C1, etc.)
4. Open the Low Pressure side valve on the manifold gauge.Keep the High Pressure side valve closed.
5. Turn on the vacuum pump to evacuate the system.
6. Run the vacuum until the Compound Meter reads-76cmHg/-29.92"Hg (-101 kPa). It is recommended to
use a micron gauge; run the vacuum until the micron gauge reads 350 to 500 microns or less.
7. After the vacuum process has been achieved, close the Low Pressure side valve on the manifold gauge,
and turn off the vacuum pump.
8. Wait for approximately 10 to 15 minutes, then check that there has been no change in system vacuum.
It is recommended to use a micron gauge; check to make sure the system is still below 500 microns.
9. lf there is a change in system vacuum, refer to Gas Leak Check section for information on how to check
for leaks. If there is no change in system vacuum, remove the charge hose from the service port.
