Air Conditioner Service Manual
72
7. Unit Disassembly
7.1 ODU Disassembly
Step
Reference picture
Before disassembly

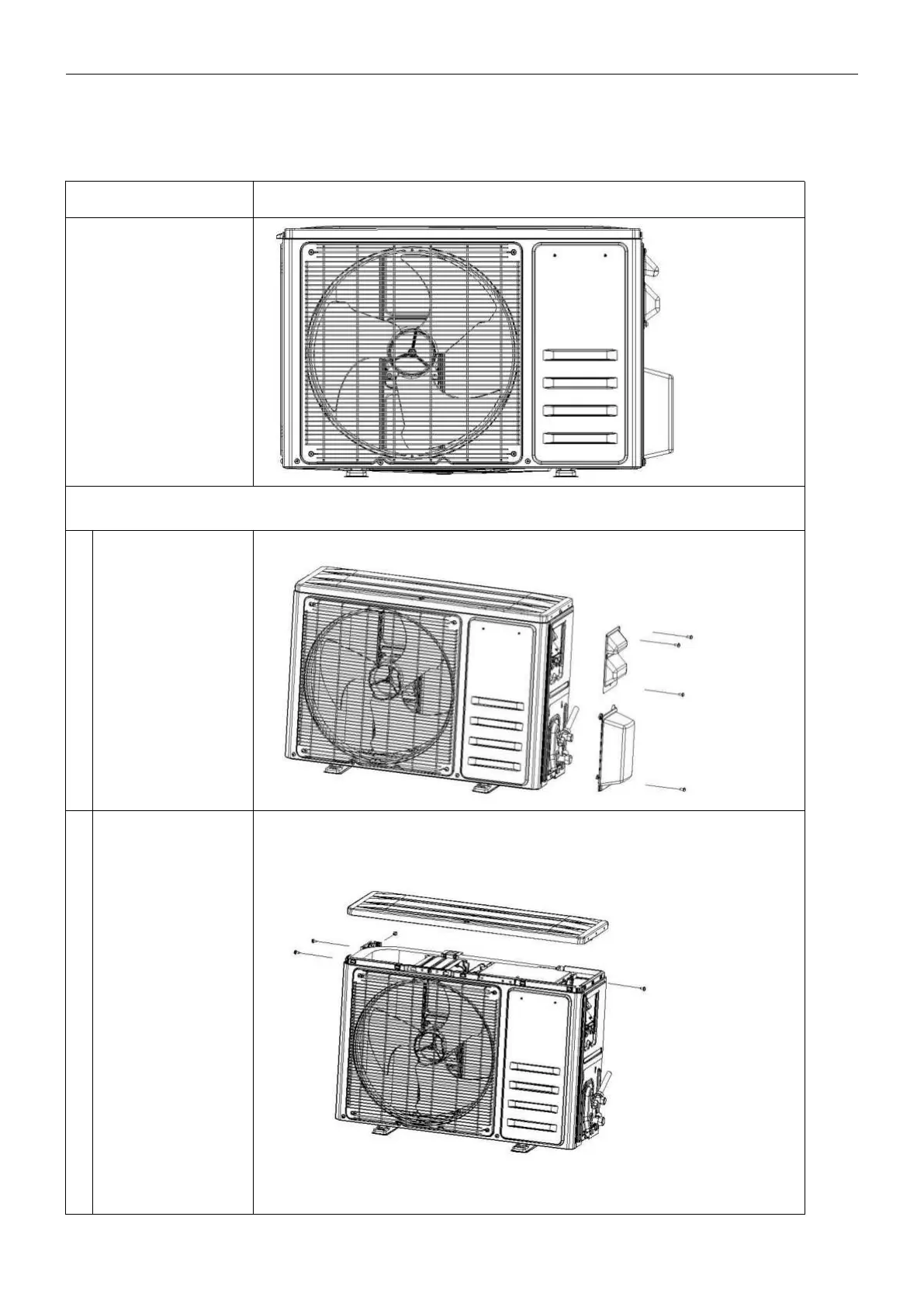

step1：Remove the PCB Cover , valve Cover and top cover
A
1). Unfix one screw
on the PCB cover,
you can take the
cover out from unit.
2). Unfix one screw
on the valve cover,
you can take it out
easily.
B
Unfix screws btw
the top cover with
front panel, left and
right plate, then you
can take the top
cover out.
