Air Conditioner Service Manual
33

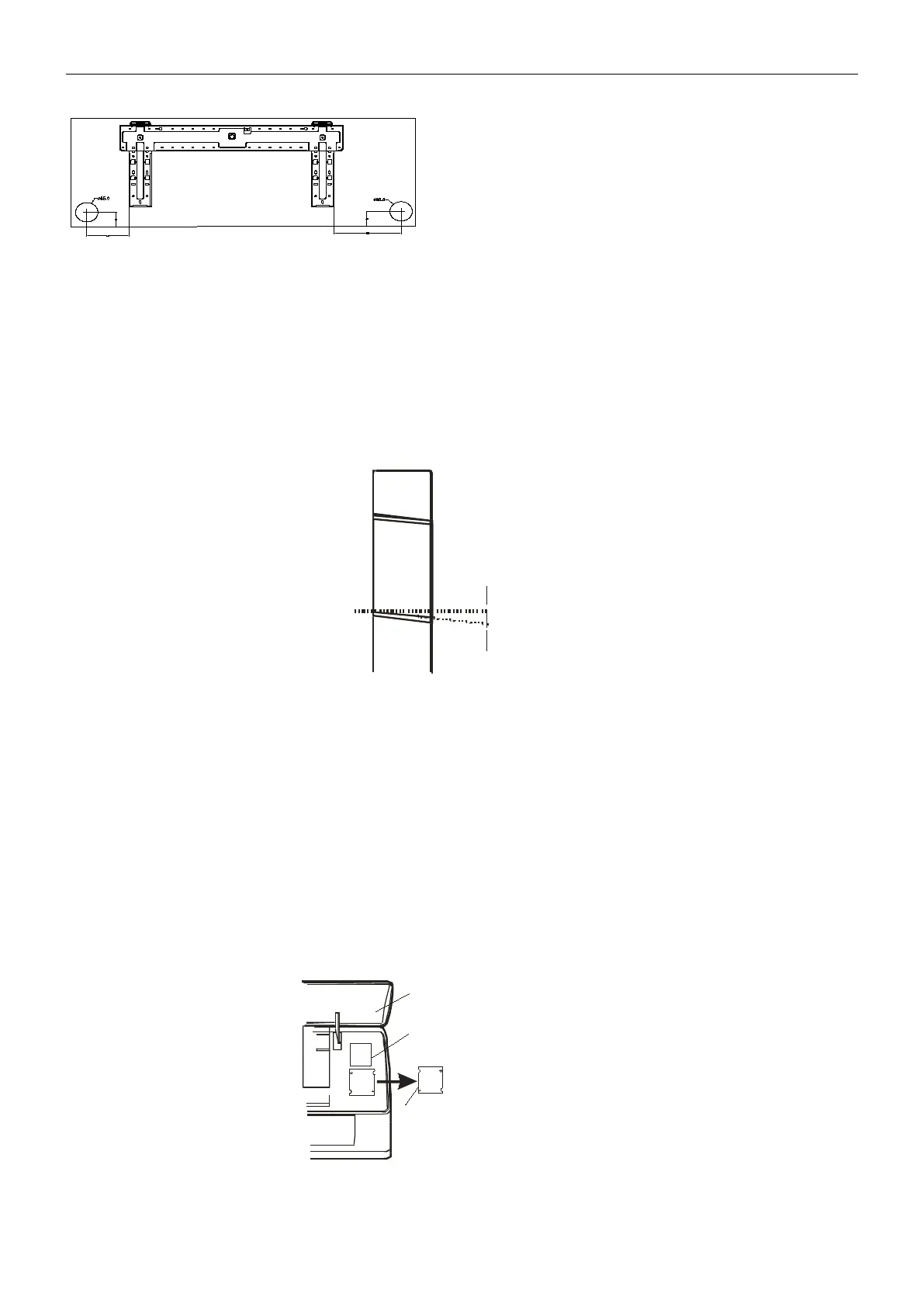

24K(1080T)
Note: The shape of the mounting plate may be different from the one above, but installation method is
similar.
2. Drilling a hole in the wall for the piping
1) Decide where to drill the hole in the wall for the piping (if necessary) according to the position of the mounting
plate
2) Install a flexible flange through the hole in the wall to keep the latter intact and clean.
The hole must slope downwards towards the exterior.
Note: Keep the drain pipe down towards the direction of the wall hole, otherwise leakage may occur.
3. Electrical connections---Indoor unit
1).Lift the front panel.
2).Take off the cover as indicated in the picture (by removing a screw or by breaking the hooks).
3).For the electrical connections, see the circuit diagram on the right part of the unit under the front panel.
4).Connect the cable wires to the screw terminals by following the numbering, Use wire size suitable to the electric
power input (see name plate on the unit) and according to all current national safety code requirements.
5).The cable connecting the outdoor and indoor units must be suitable for outdoor use.
6).The plug must be accessible also after the appliance has been installed so that it can be pulled out if necessary.
7)
.An efficient earth connection must be ensured.
8).If the power cable is damaged, it must be replaced by an authorized Service Centre.
ā
Refrigerant piping connection
The piping can be run in the 3 directions indicated by numbers in the picture. When the piping is run in direction 1
5mm
Indoors
Out doors
Front panel
Terminal block cover
Wiring diagram
