Page 24

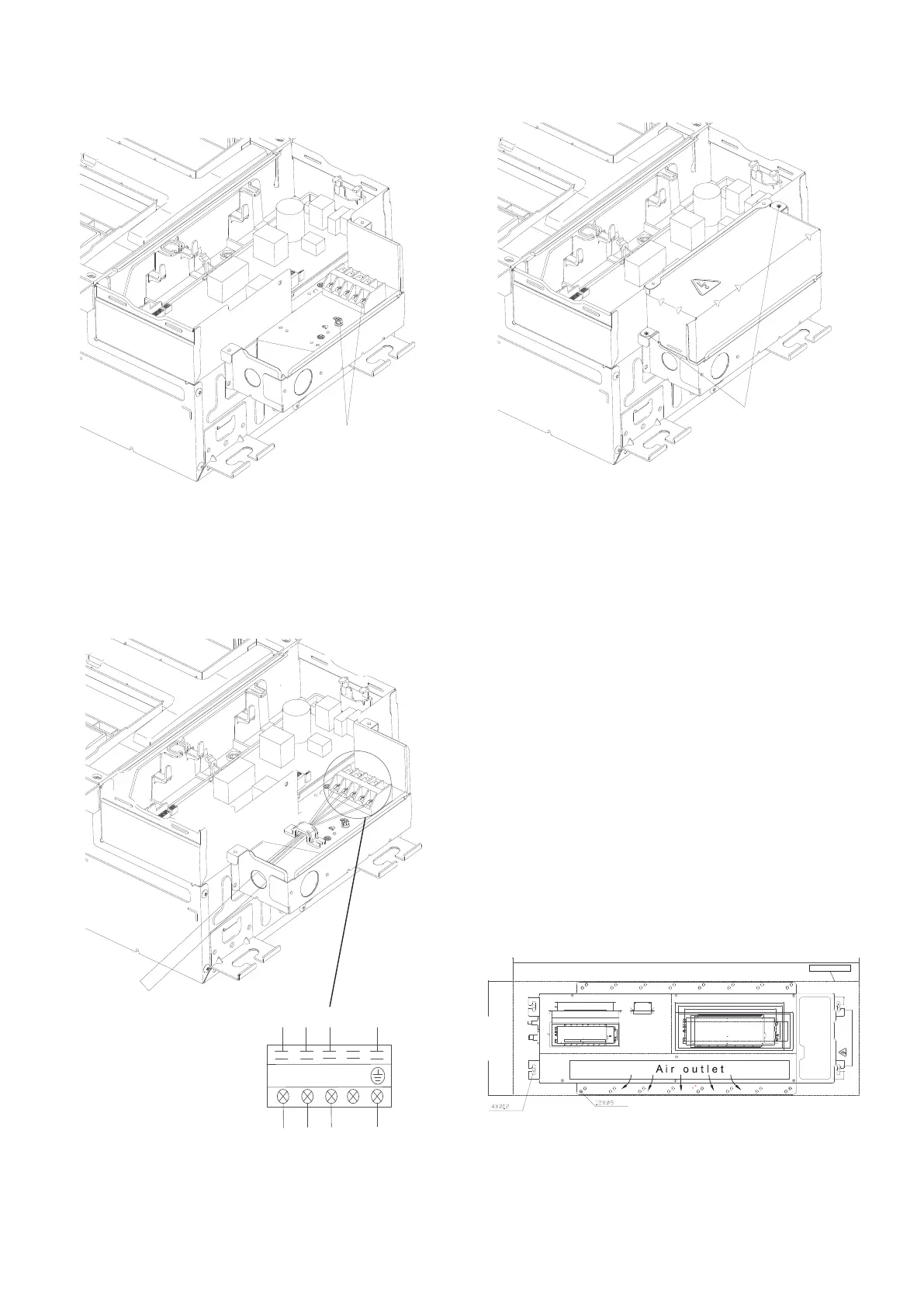

Select one to
connect ground
wire
Two screws
Installation cardboard template
1
2
3
TO OUTDOOR UNIT
TO INDOOR UNIT MAIN BOARD
430mm
(16.93’’)
1300mm(51.18’’)
CUTTING LINE
•Connect the wire to the terminal according
to the wire connecting diagram.
•Fix the wire with the clip by using the two
screws.
•After you selecting an installation location, drill a
hole with the diameter of 6mm or less into the
roof beam based on the layout of the installation
board (accessory Installation
cardboard template). After drilling the hole,
remove the installation board.
•Install the terminal cover by fixing the two screws.
2. Install the indoor air handler
NOTICE
After you have finished installing the main
body, when choosing where to start, determine
the direction of the pipes to be drawn out.
Especially in cases where there is a ceiling
involved, align the refrigerant pipes, drain
pipes, and indoor and outdoor lines with their
connection points before mounting the unit.
