When drilling the wall hole, make sure to
avoid wires, plumbing, and other sensitive
components.
NOTE: When the gas side connective pipe is
16mm(5/8in) or more, the wall hole should be
90mm(3.54in).
CAUTION
0-53cm
(20.8”)
≥10cm
(4”)
Wall
Indoor Outdoor
mm7-5
)ni572.0-2.0(
Pass the drain hose through the wall hole.
Make sure the water drains to a safe location
where it will not cause water damage or a
slipping hazard.
The drainpipe outlet should be at least
5cm (1.9”) above the ground. If it touches the
ground, the unit may become blocked and
malfunction. If you discharge the water
directly into a sewer, make sure that the
drain has a U or S pipe to catch odors that
might otherwise come back into the house.
NOTICE

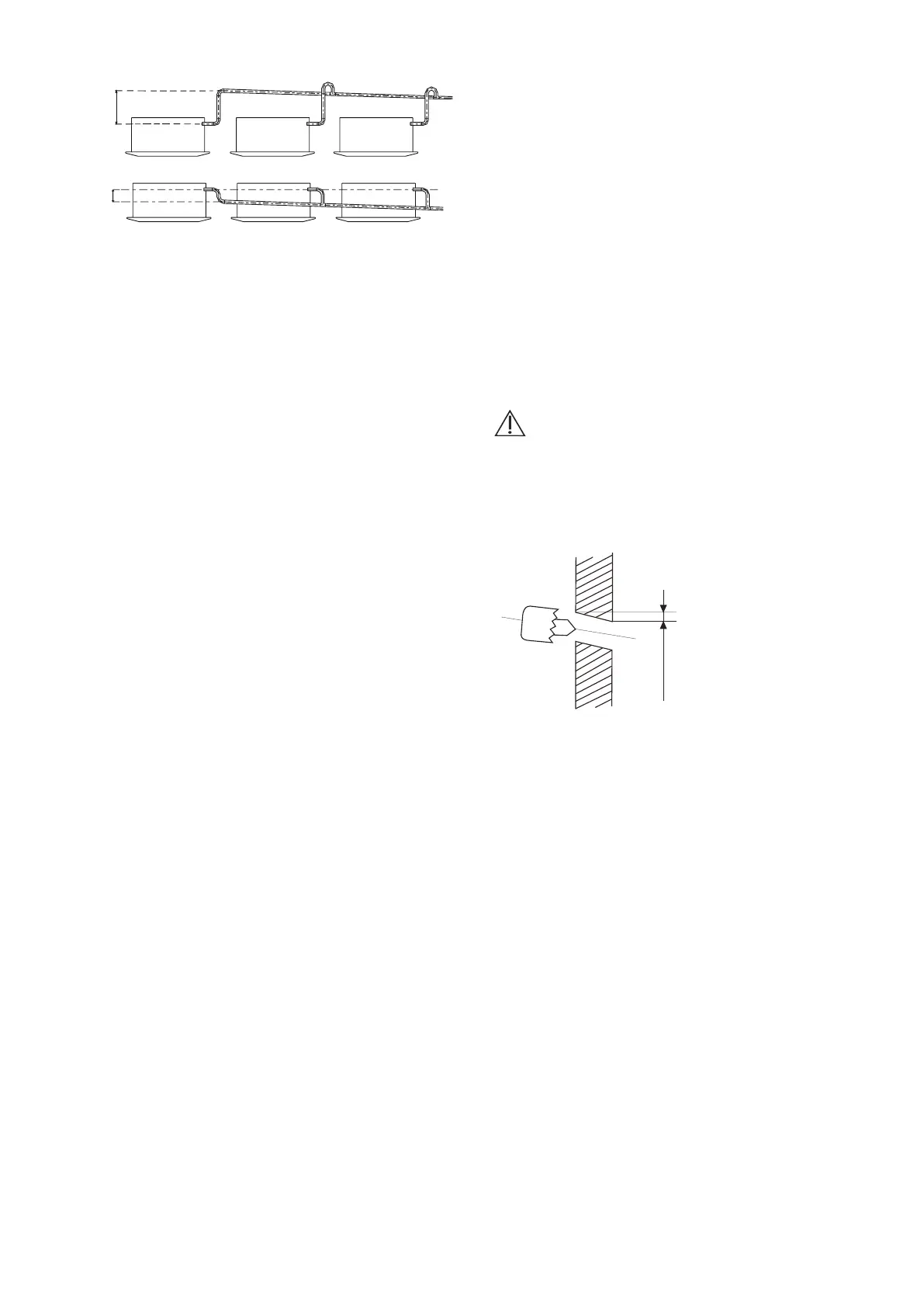

1. Using a 65mm(2.5in) or 90mm(3.54in)
(depending on models) core drill, drill a hole
in the wall. Make sure that the hole is drilled
at a slight downward angle, so that the
outdoor end of the hole is lower than the
indoor end by about 5mm to 7mm
(0.2-0.275in).
This will ensure proper water drainage.
2. Place the protective wall cu in theh ole.
This protects the edges of the hole and will
help seal it when you finish the installation
process.
Drill wall hole
Page 32
