Page 28

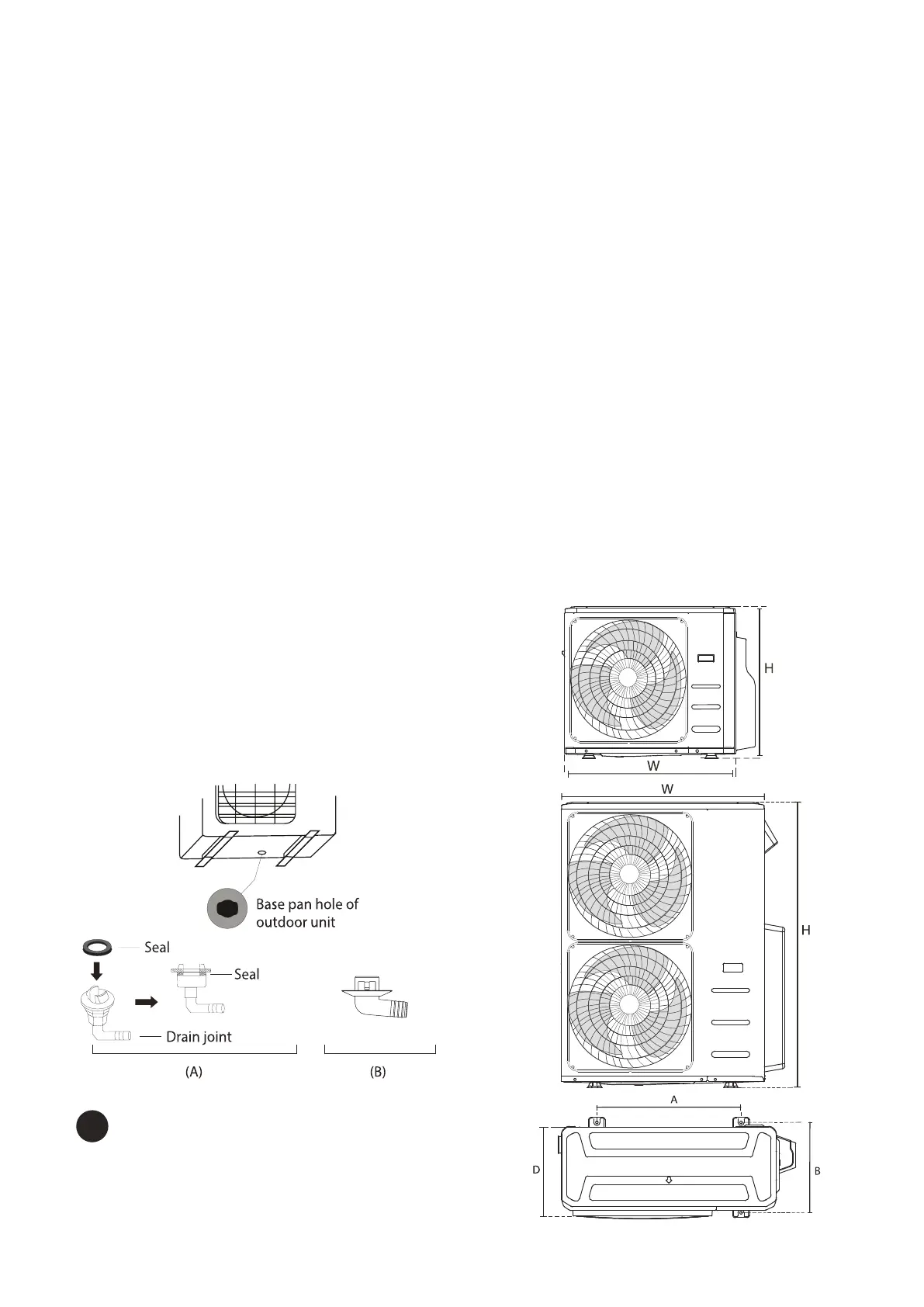

Step 2: Install drain joint(Heat pump unit
only)
Before bolting the outdoor unit in place, you
must install the drain jount at the bottom of
the unit. Note that there are two dierent
types of drain jounts depending on the type
of outdoor unit.
Step 3: Anchor outdoor unit
The outdor unit can be anchored to the
ground or to a wall-mounted bracket with
bolt(M10). Prepare the installation base of the
unit accoding to the dimensions below.
UNIT MOUNTING DIMENSIONS
The following is a list of dierent outdoor
unit sizes and the distance between their
mounting feet. Prepare the installation base
of the unit according to the dimensions
below.
Outdoor Unit Types and Specifications
Split Type Outdoor Unit
If the drain jount comes with a rubber seal
(see FIg, A), do the following:
1. Fit the rubber seal on the end of the drain
joint that will connect to the outdoor unit
2. Insert the drain joint into the hole in the
base pan of the unit
3. Rottate the drain jount 90º until it clicks
in place facing the front of the unit
4. Connect a drain hose extension (not
included) to the drain joint to redirect
water from the unit during heating mode
If the drain jount doesn’t comes with a
rubber seal(see FIg, B), do the following:
1. Insert the drain joint into the hole in the
base pan of the unit, The drain joint will
click in place
2. Connect a drain hose extension (not
included) to the drain joint to redirect
water from the unit during heating mode
In cold climates, make sure that the drain hose is
as vertical as possible to ensure swift water
drainage. If water drains too slowly, it can freeze
in the hose and flood the unit.
IN COLD CLIMATES
!
