Four screws
Remove the pre-cutting cover on the circuit
breaker box.
Pre-cutting cover
3
2
1
TO OUTDOOR UNIT
TO INDOOR UNIT MAIN BOARD
1
2
3
Y/G
Circuit
Breaker
Step 2: Indoor Unit Installation
Make sure that only specified components
are used for the installation works.

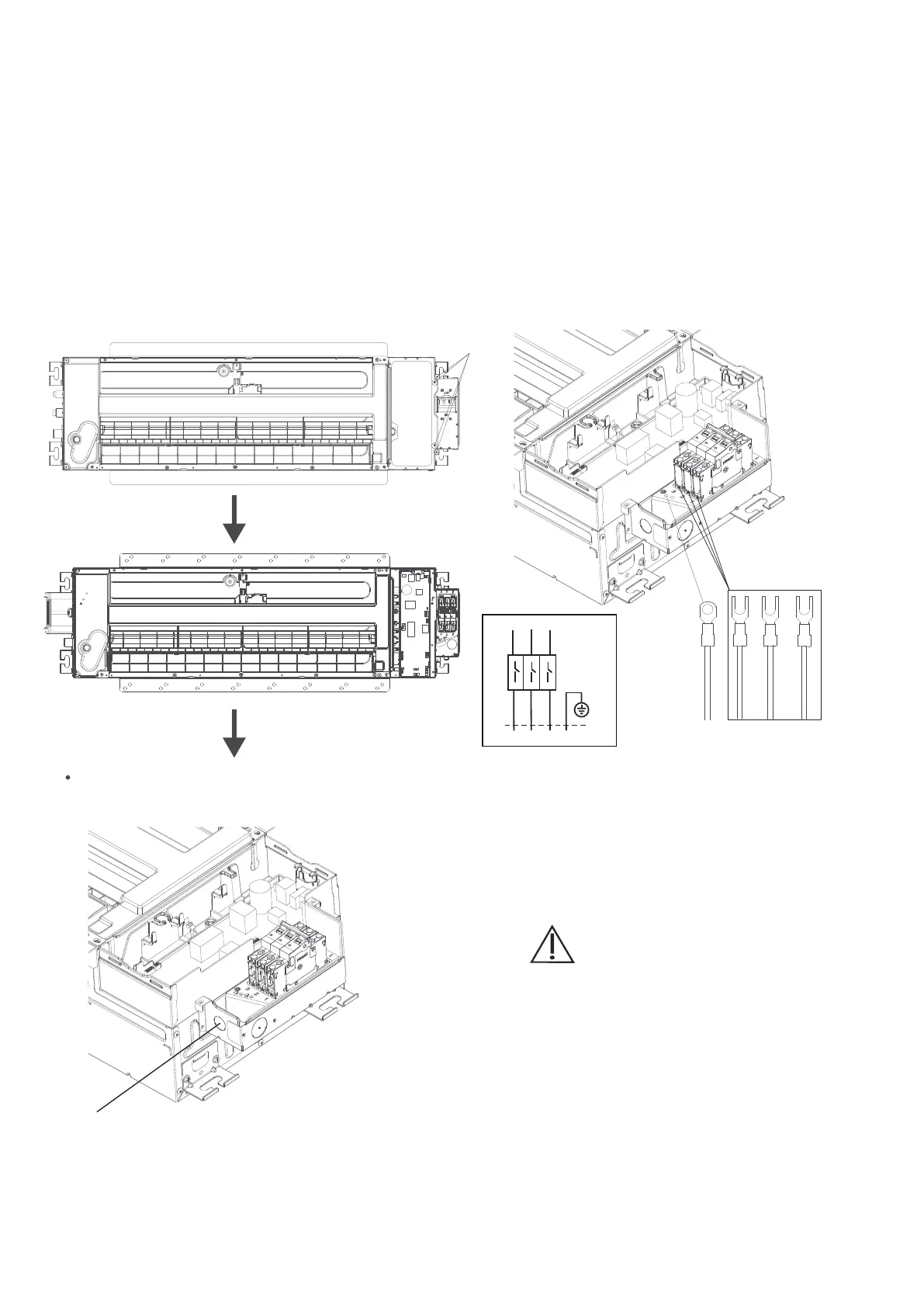

1. Connect wire to indoor air handler
Model A: with circuit breaker
• Connect the wire to the air breaker
according to the wire connecting diagram.
The ground wire should be tighten firmly
without loosening.
