12 Electrical installation
Installation and operation manual
16
VAM350~2000J8VEB
Heat reclaim ventilation unit
4P664011-1 – 2021.08
c
o
i
q
q
q
n
r
l
h

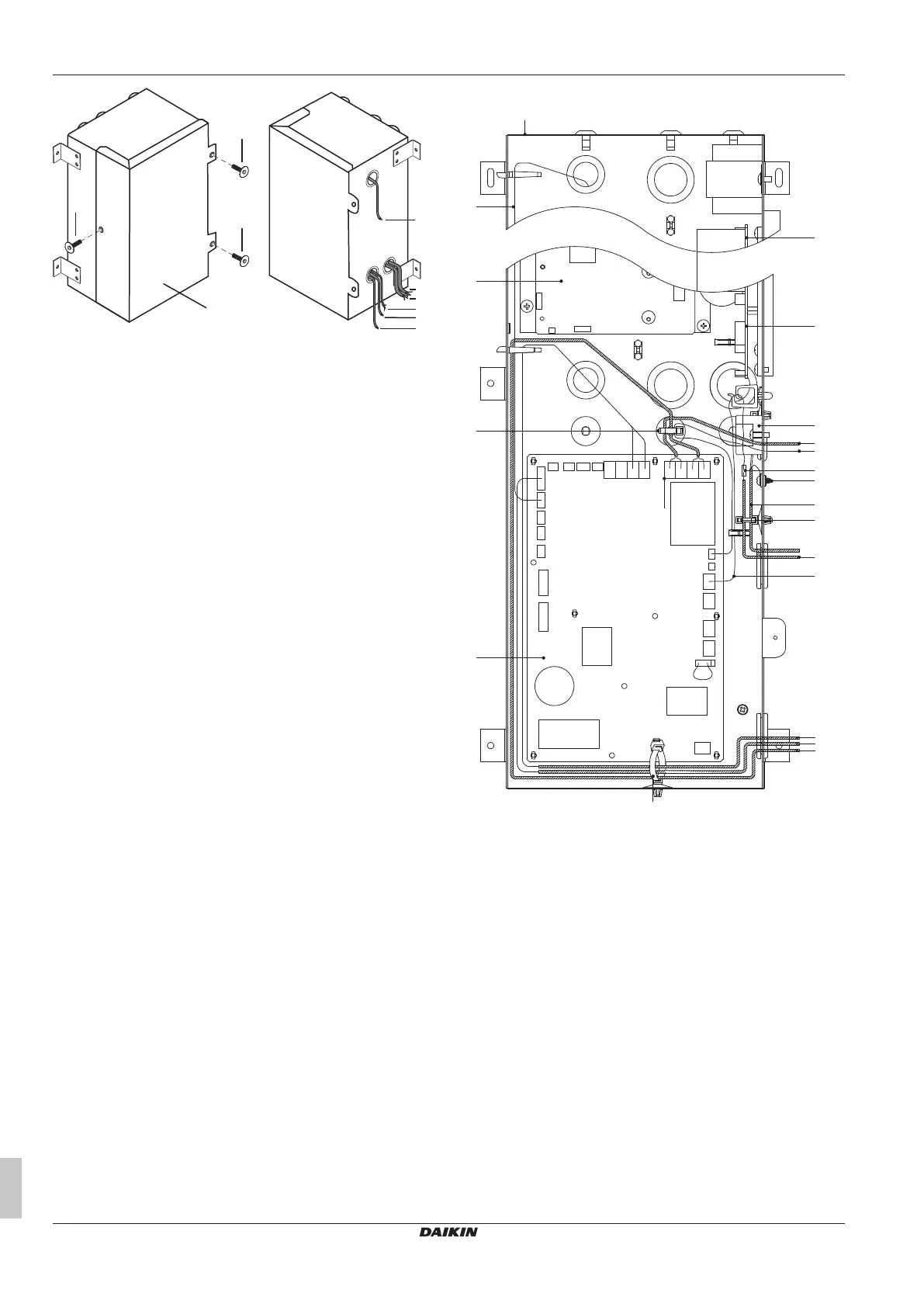

a Switch box
b PCB
c Switch box cover
d Securing screw and washer
e Grounding terminal
f Terminal board
g Transmission wiring terminal board (P1, P2, F1, F2)
h Transmission wiring (to optional controller)
Ii Power supply cable
j Wires for connection of additional external damper
(supplied accessory)
k Insulated splices-closed barrel connector (0.75mm²)
(field supply)
l Double or reinforced insulated flexible cable (0.75mm²)
to external damper (field supply)
m Tie wrap (field supply)
n BRP4A50A (optional accessory)
o KRP2A51 (optional accessory)
p CO₂sensor (optional accessory)
q Tapping screw
r Wires for fresh-up operation
Models 1500+2000
a
g
p
b
m
b
b
b
f
k
i
m
l
j
r
n
h
m
d+e
o
A1P
X24A
X29A
X27A
X35A
X14A
X33A
F2
F1
P2
P1
J3
J2
J1
JC
