RMXS112~160E8V1B
Super Multi Plus System air conditioner
4PW40721-1A
Installation manual
3

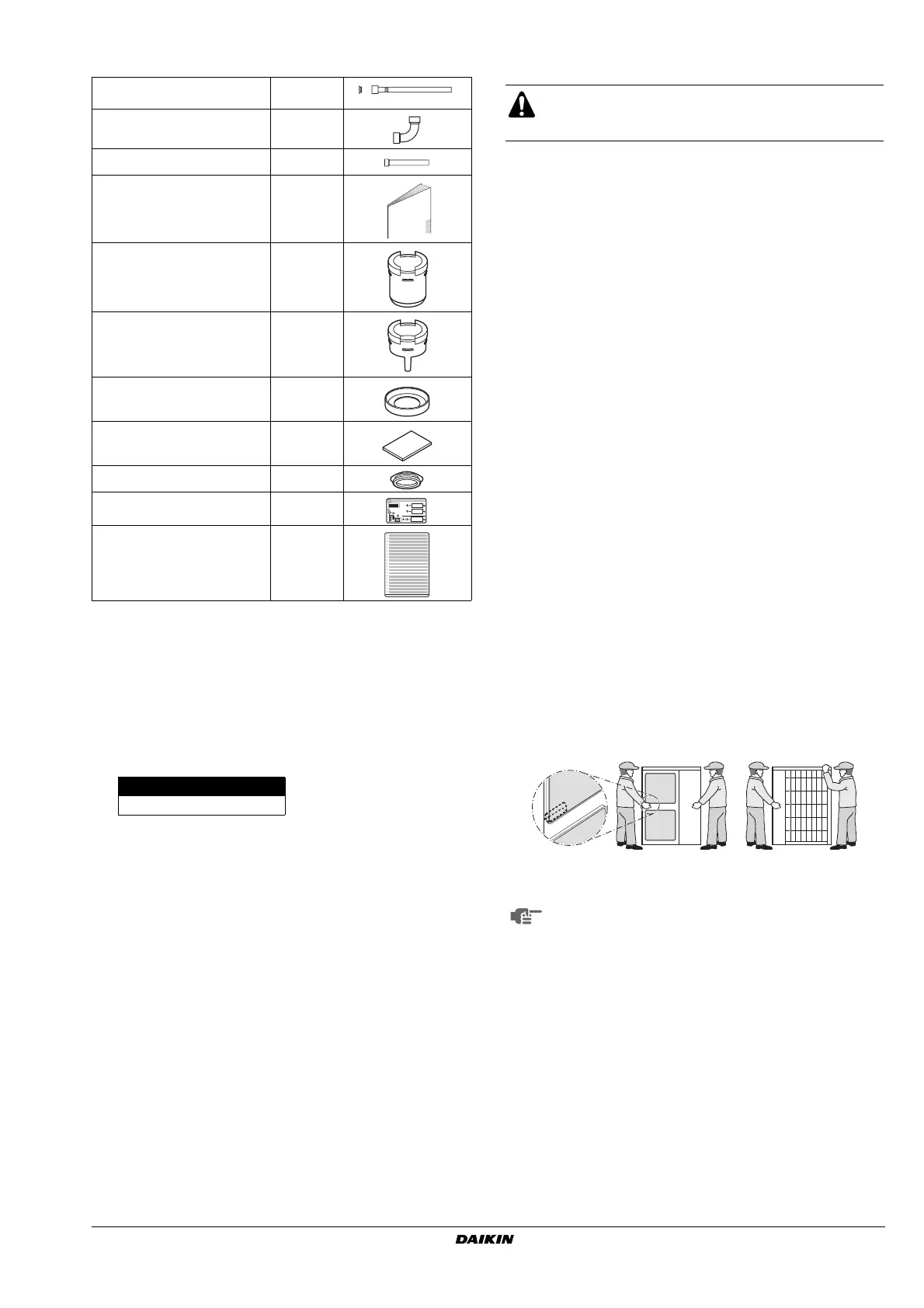

2.3. Standard supplied accessories
Location of accessories: refer to figure 1.
2.4. Optional accessories
To install the above outdoor units, the following optional parts are
also required.
■ Refrigerant branching kit (for R410A only: Always use an
appropriate kit dedicated for your system.)
2.5. Technical and electrical specifications
Refer to the Engineering Data Book for the complete list of
specifications.
3. BEFORE INSTALLATION
3.1. Precautions for R410A
■ The refrigerant requires strict cautions for keeping the system
clean, dry and tight.
- Clean and dry
Foreign materials (including mineral oils or moisture) should be
prevented from getting mixed into the system.
- Tight
Read "8. Precautions on refrigerant piping" on page 6 carefully
and follow these procedures correctly.
■ Since R410A is a mixed refrigerant, the required additional
refrigerant must be charged in its liquid state. (If the refrigerant
is in state of gas, its composition changes and the system will
not work properly).
■ The connected indoor units must be indoor units designed
exclusively for R410A.
3.2. Installation
■ For installation of the indoor unit(s) and BP unit(s), refer to the
indoor unit and BP unit's installation manual.
■ Never operate the air conditioner with the discharge pipe
thermistor (R2T), suction pipe thermistor (R3T) and pressure
sensors (S1NPH, S1NPL) removed. Such operation may burn
out the compressor.
■ Be sure to confirm the model name and the serial no. of the
outer (front) plates when attaching/detaching the plates to avoid
mistakes.
■ When closing the service panels, take care that the tightening
torque does not exceed 4.1 N•m.
3.3. Handling
As shown in the figure, bring the unit slowly by grabbing the left and
right grips.
Place your hands on the corner instead of holding the suction inlet in
the side of the casing, otherwise the casing could be deformed.
Gas line piping (1) + copper
gasket
1
Gas line piping (2) 1
Gas line piping (3) 1
Installation manual 1
Drain socket 1
Drain cap 2
Drain receiver 3
Insulation tape 1
Drain stop 1
Fluorinated greenhouse gases
label
1
Multilingual fluorinated
greenhouse gases label
1
1 Accessories
Refnet joint
KHRQ22M20T
+
Since design pressure is 4.0 MPa or 40 bar, pipes of larger
wall thickness may be required. Refer to paragraph
"7.1. Selection of piping material" on page 6.
Take care not to let hands or objects come in contact with
rear fins.
