6 | Unit installation
Installer reference guide
30
RZASG100~140MUV/Y
Sky Air Advance-series
4P743506-1 – 2023.08
NOTICE
Take care to mount the hooks of the thermistor fixing plate (2) correctly to the rear
cover.

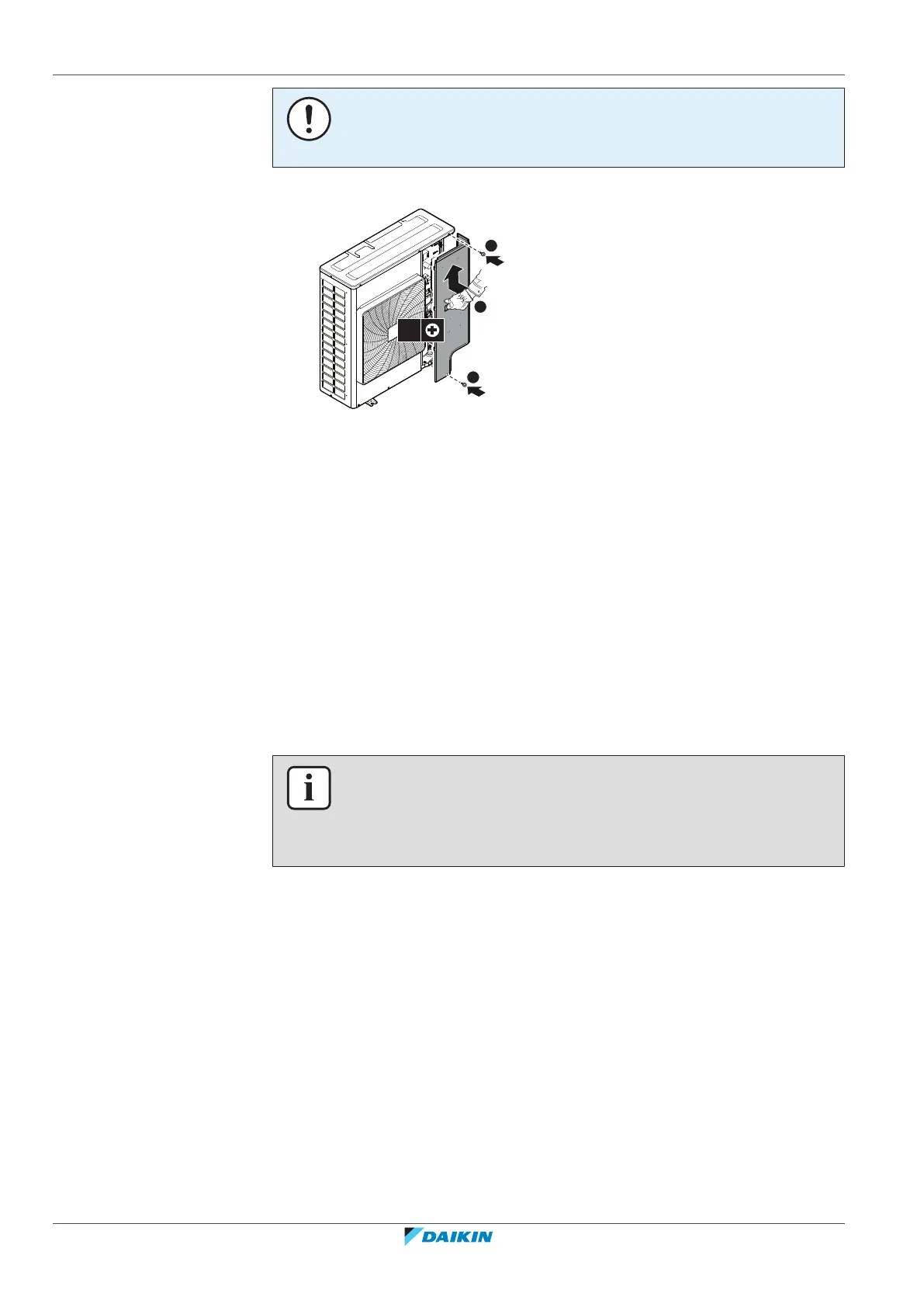

3 Reinstall the service cover.
2×
2
2
1
6.3 Mounting the outdoor unit
6.3.1 About mounting the outdoor unit
Typical workflow
Mounting the outdoor unit typically consists of the following stages:
1 Providing the installation structure.
2 Installing the outdoor unit.
3 Providing drainage.
4 Preventing the unit from falling over.
6.3.2 Precautions when mounting the outdoor unit
INFORMATION
Also read the precautions and requirements in the following chapters:
▪ "2General safety precautions"[47]
▪ "6.1Preparing the installation site"[424]
6.3.3 To provide the installation structure
Check the strength and level of the installation ground so that the unit will not
cause any operating vibration or noise.
Fix the unit securely by means of foundation bolts in accordance with the
foundation drawing.
Prepare 4 sets of anchor bolts, nuts and washers (field supply) as follows:
