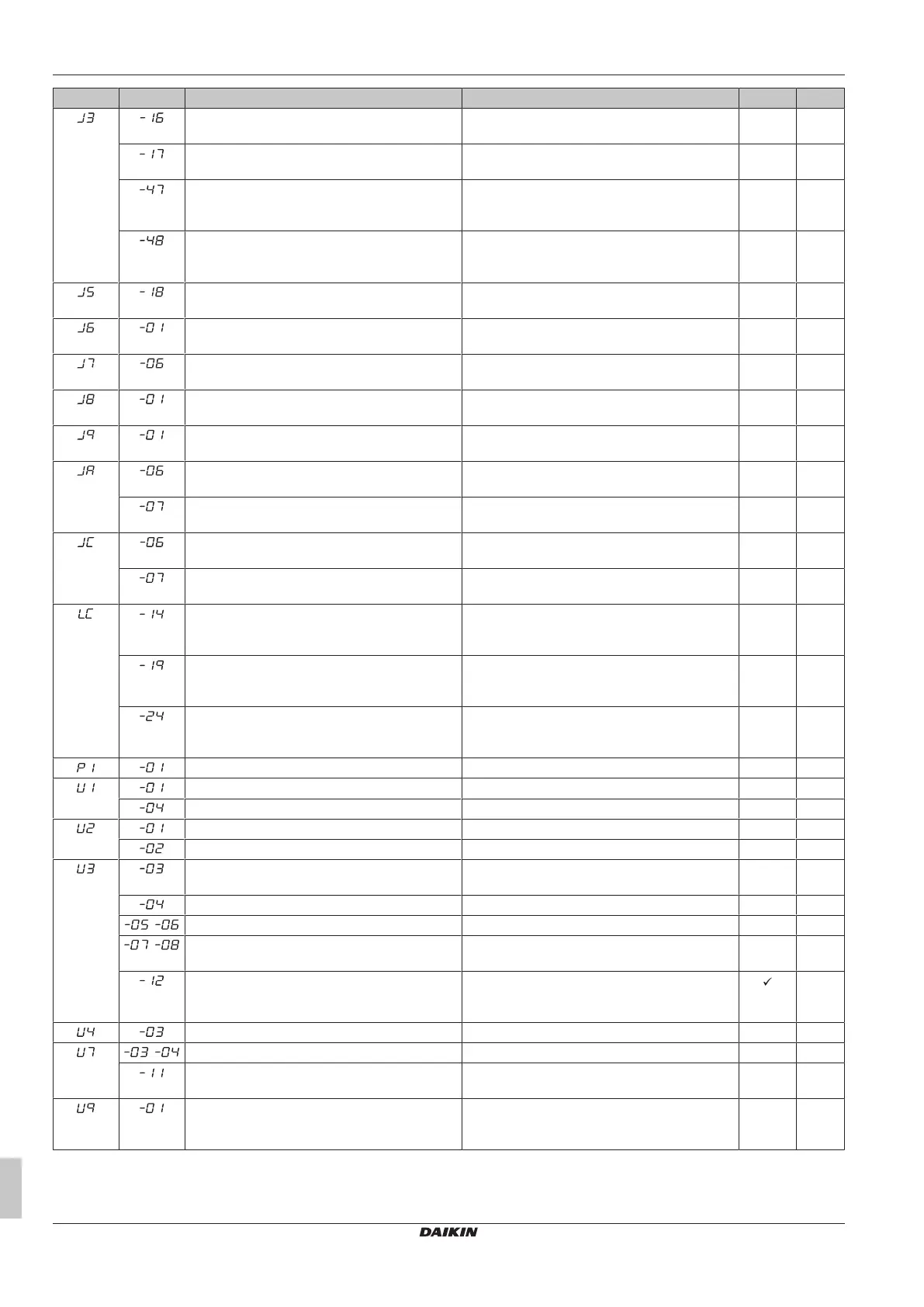

22 Troubleshooting
Installation and operation manual
50
RXYSA8~12AMY1B
VRV 5-S system air conditioner
4P752781-1C – 2024.10
Main code Sub code Cause Solution SVEO
(a)
SVS
(b)
Discharge temperature sensor malfunction
(R21T): open circuit – main PCB (X33A)
Check connection on PCB or actuator.
Discharge temperature sensor malfunction
(R21T): short circuit - main PCB (X33A)
Check connection on PCB or actuator.
Compressor casing temperature sensor
malfunction (R8T): open circuit - main PCB
(X33A)
Check connection on PCB or actuator.
Compressor casing temperature sensor
malfunction (R8T): short circuit - main PCB
(X33A)
Check connection on PCB or actuator.
Suction temperature sensor (R3T) – main PCB
(X30A)
Check connections on PCB or actuator.
Heat exchanger deicer temperature sensor (R7T)
– main PCB (X30A)
Check connection on PCB or actuator
Subcool heat exchanger – liquid - temperature
sensor (R5T) - main PCB (X30A)
Check connection on PCB or actuator.
Heat exchanger – liquid -temperature sensor
(R4T ) - main PCB (X30A)
Check connection on PCB or actuator.
Subcool heat exchanger – gas - temperature
sensor (R6T) – main PCB (X30A)
Check connection on PCB or actuator.
High pressure sensor malfunction (S1NPH):
open circuit - main PCB (X32A)
Check connection on PCB or actuator.
High pressure sensor malfunction (S1NPH):
short circuit - main PCB (X32A)
Check connection on PCB or actuator.
Low pressure sensor malfunction (S1NPL): open
circuit - main PCB (X31A)
Check connection on PCB or actuator.
Low pressure sensor malfunction (S1NPL): short
circuit - main PCB (X31A)
Check connection on PCB or actuator.
Transmission outdoor unit - inverter: INV1
transmission trouble - main PCB (X20A, X28A,
X40A)
Check connection.
Transmission outdoor unit - inverter: FAN1
transmission trouble - main PCB (X20A, X28A,
X40A)
Check connection.
Transmission outdoor unit - inverter: FAN2
transmission trouble - main PCB (X20A, X28A,
X40A)
Check connection.
INV1 unbalanced power supply voltage Check if power supply is within range.
Reversed power supply phase malfunction Correct phase order.
Reversed power supply phase malfunction Correct phase order.
INV1 voltage power shortage Check if power supply is within range.
INV1 power phase loss Check if power supply is within range.
Malfunction code: system test run not yet
executed (system operation not possible)
Execute system test run.
An error occurred during the test run Re-execute the test run.
, Test run aborted Re-execute the test run.
, Test run aborted due to communication issues Check the communication wires and re-execute
the test run.
Commissioning of SV unit safety system is not
completed
Complete commissioning of SV unit safety
system. Refer to SV unit manual for more
information.
Indoor unit communication error Check user interface connection.
, Malfunction code: faulty wiring to Q1/Q2 Check Q1/Q2wiring.
Too many indoor units are connected to F1/F2
line
Check indoor unit amount and total capacity
connected.
Warning because there is an error on another
unit (indoor/SV unit)
Check if other indoor units/SV units have a
malfunction and confirm if indoor unit mix is
allowed.
