20 Technical data

Installation and operation manual

42

RXYQQ8~20U7Y1B

VRV IV Q+ series heat pump

4P546221-1B – 2020.10

20 Technical data

▪ A subset of the latest technical data is available on the regional

Daikin website (publicly accessible).

▪ The full set of latest technical data is available on the Daikin

Business Portal (authentication required).

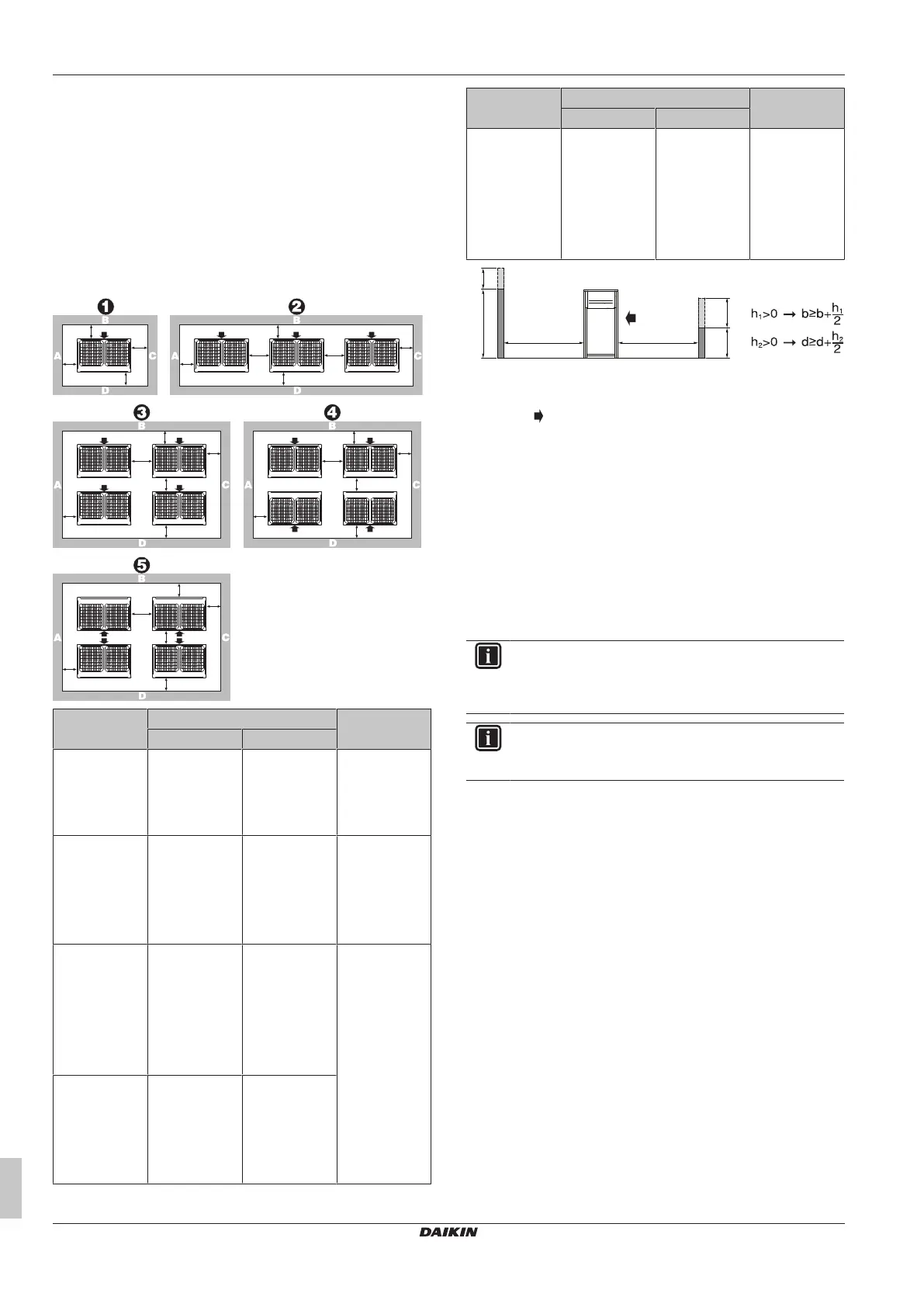

20.1 Service space: Outdoor unit

Make sure the space around the unit is adequate for servicing and

the minimum space for air inlet and air outlet is available (refer to the

figure below and choose one of the possibilities).

a

b

a

c

d

a

b

a

e

d

e

c

a

b

a

e

d

f

c

a

b

a

e

b

d

c

a

b

a

e

d

f

c

Layout A+B+C+D A+B

Possibility 1 Possibility 2

1 a≥10mm

b≥300mm

c≥10mm

d≥500mm

a≥50mm

b≥100mm

c≥50mm

d≥500mm

a≥200mm

b≥300mm

2 a≥10mm

b≥300mm

c≥10mm

d≥500mm

e≥20mm

a≥50mm

b≥100mm

c≥50mm

d≥500mm

e≥100mm

a≥200mm

b≥300mm

e≥400mm

3 a≥10mm

b≥300mm

c≥10mm

d≥500mm

e≥20mm

f≥600 mm

a≥50mm

b≥100mm

c≥50mm

d≥500mm

e≥100mm

f≥500mm

—

4 a≥10mm

b≥300mm

c≥10mm

d≥500mm

e≥20mm

a≥50mm

b≥100mm

c≥50mm

d≥500mm

e≥100mm

Layout A+B+C+D A+B

Possibility 1 Possibility 2

5 a≥10mm

b≥500mm

c≥10mm

d≥500mm

e≥20mm

f≥900mm

a≥50mm

b≥500mm

c≥50mm

d≥500mm

e≥100mm

f≥600mm

—

h

1

h

2

1500

500

F

(mm)

d b

ABCD Sides along the installation site with obstacles

F Front side

Suction side

▪ In case of an installation site where sides A+B+C+D have

obstacles, the wall heights of sides A+C have no impact on

service space dimensions. Refer to the figure above for impact of

wall heights of sides B+D on service space dimensions.

▪ In case of an installation site where only the sides A+B have

obstacles, the wall heights have no influence on any indicated

service space dimensions.

▪ The installation space required on these drawings are for full load

heating operation without considering possible ice accumulation. If

the location of the installation is in a cold climate, then all

dimensions above should be >500mm to avoid accumulation of

ice in between the outdoor units.

INFORMATION

The service space dimensions in above figure are based

on cooling operation at 35°C ambient temperature

(standard conditions).

INFORMATION

Further specifications can be found in the technical

engineering data.
