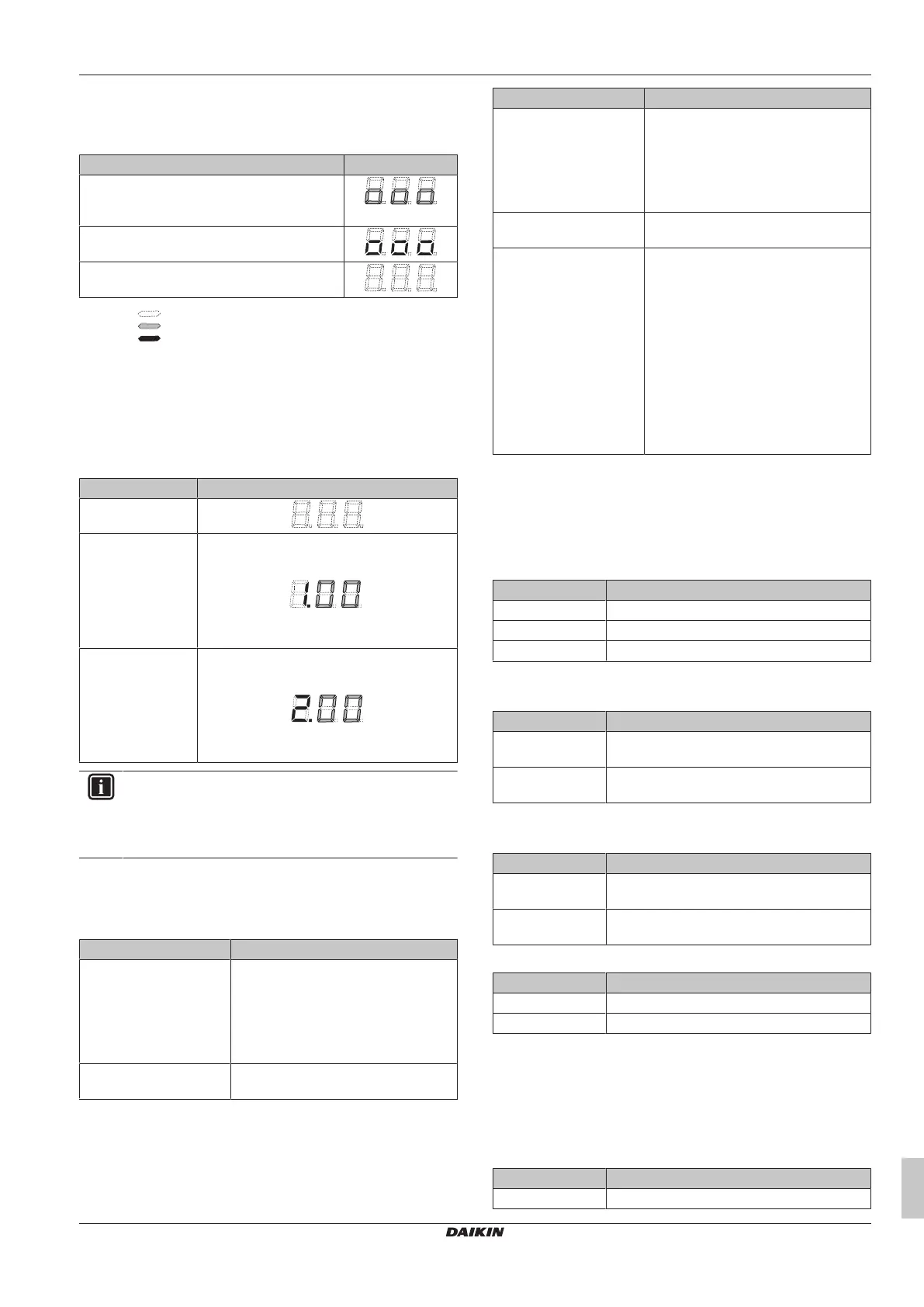

18 Configuration
Installation and operation manual
45
RYMA5+RXYA8~20A7Y1B
VRV 5 heat pump
4P739915-1C – 2024.10
Turn on the power supply of the outdoor unit and all indoor units.
When the communication between indoor units and outdoor unit(s) is
established and normal, the 7‑segment display indication state will
be as below (default situation when shipped from factory).
Stage Display
When turning on the power supply: blinking as
indicated. First checks on power supply are
executed (8~10min).
When no trouble occurs: lighted as indicated
(1~2min).
Ready for operation: blank display indication as
indicated.
Off
Blinking
On
In case of malfunction, the malfunction code is displayed on the
indoor unit user interface and the outdoor unit 7‑segment display.
Solve the malfunction code accordingly. The communication wiring
should be checked at first.
Access
BS1 is used to switch between the default situation, mode 1 and
mode2.
Access Action
Default situation
Mode1 ▪ Push BS1 one time.
7‑segment display indication changes to:
.
▪ Push BS1 one more time to return to the
default situation.
Mode2 ▪ Push BS1 for at least five seconds.
7‑segment display indication changes to:
▪ Push BS1 one more time (short) to return to
the default situation.
INFORMATION
If you get confused in the middle of the process, push BS1
to return to the default situation (no indication on
7‑segment displays: blank, see "18.1.4To access mode 1
or 2"[444].
18.1.5 To use mode 1
Mode1 is used to set basic settings and to monitor the status of the
unit.
What How
Changing and accessing
the setting in mode1
1 Push BS1 one time to select
mode1.
2 Push BS2 to select the required
setting.
3 Push BS3 one time to access the
selected setting's value.
To quit and return to the
initial status
Push BS1.
18.1.6 To use mode 2
The master unit should be used to input field settings in
mode2.
Mode2 is used to set field settings of the outdoor unit and system.
What How
Changing and accessing
the setting in mode2
▪ Push BS1 for more than fiveseconds
to select mode2.
▪ Push BS2 to select the required
setting.
▪ Push BS3 one time to access the
selected setting's value.
To quit and return to the
initial status
Push BS1.
Changing the value of the
selected setting in mode2
▪ Push BS1 for more than fiveseconds
to select mode2.
▪ Push BS2 to select the required
setting.
▪ Push BS3 one time to access the
selected setting's value.
▪ Push BS2 to select the required value
of the selected setting.
▪ Push BS3 one time to validate the
change.
▪ Push BS3 again to start operation
with the chosen value.
18.1.7 Mode 1: monitoring settings
[1-0]
Shows whether the unit you check is a master or slave unit.
The master unit should be used to input field settings in
mode2.
[1‑0] Description
No indication Undefined situation.
0 Outdoor unit is master unit.
1 Outdoor unit is slave1 unit.
[1‑1]
Shows the status of low noise operation.
[1‑1] Description
0 Unit is currently not operating under low noise
restrictions.
1 Unit is currently operating under low noise
restrictions.
[1‑2]
Shows the status of power consumption limitation operation.
[1‑2] Description
0 Unit is currently not operating under power
consumption limitations.
1 Unit is currently operating under power
consumption limitation.
[1‑5] [1‑6]
Code Shows ...
[1‑5] The current T
e
target parameter position
[1‑6] The current T
c
target parameter position
[1‑10]
Shows the total number of connected indoor units.
[1‑13]
Shows the total number of connected outdoor units (in case of
multiple outdoor system).
[1‑17] [1‑18] [1‑19]
Code Shows ...
[1‑17] The latest malfunction code
