8 Technical data

Installation manual

RXS50+60 + RX50+60 + ARXS50~71

R410A split series

3P360062-1H – 2016.09

8 Technical data

A subset of the latest technical data is available on the regional Daikin website (publicly accessible). The full set of latest technical data is

available on the Daikin extranet (authentication required).

8.1 Wiring diagram

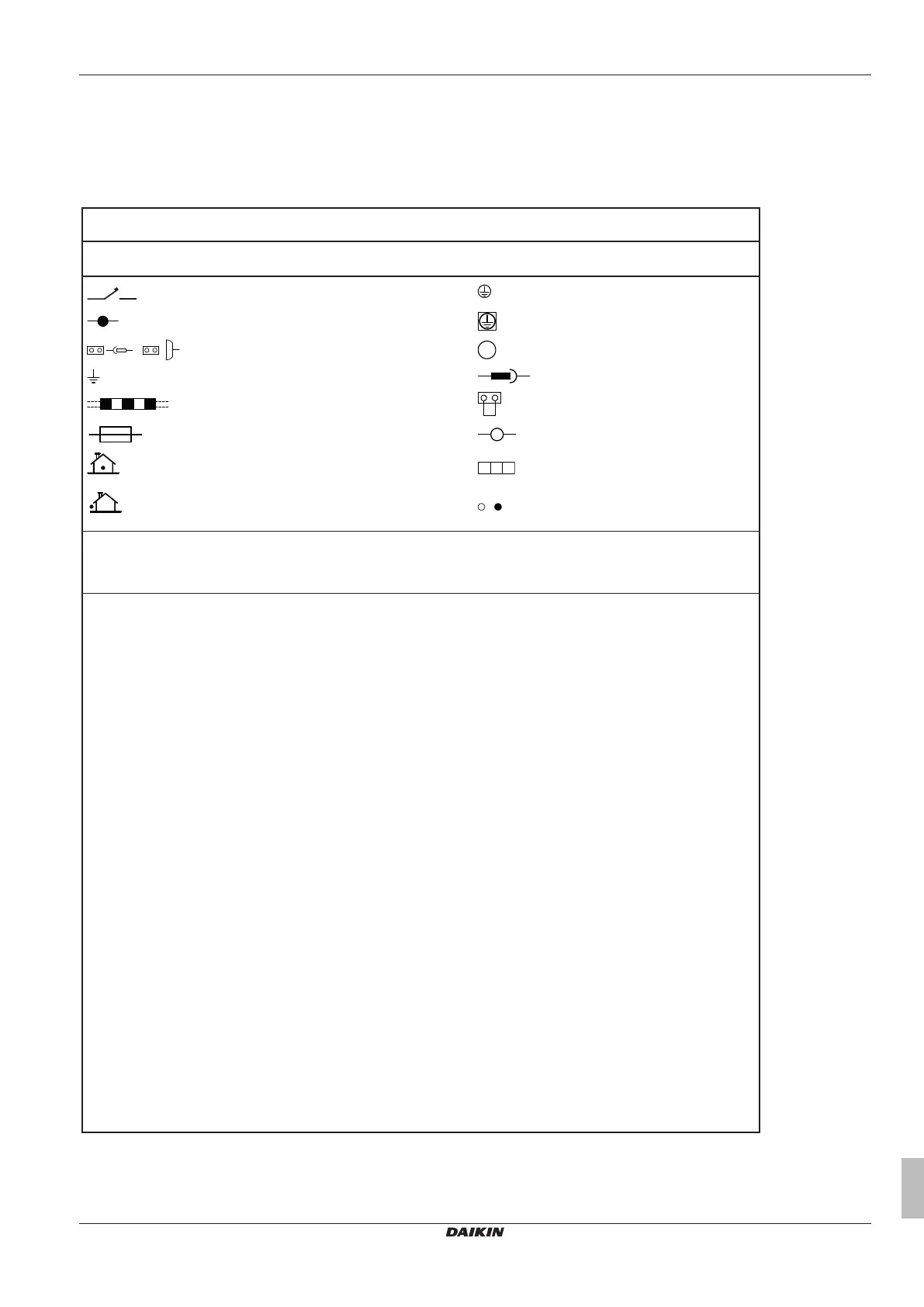

Unified Wiring Diagram Legend

For applied parts and numbering refer to the wiring diagram sticker supplied on the unit. Part numbering is realized by Arabic numbers in ascending order for each part and

is represented in the overview below by symbol “*” in the part code.

: CIRCUIT BREAKER : PROTECTIVE EARTH

: CONNECTION : PROTECTIVE EARTH (SCREW)

: CONNECTOR

: RECTIFIER

: EARTH : RELAY CONNECTOR

: FIELD WIRING : SHORT CIRCUIT CONNECTOR

: FUSE : TERMINAL

INDOOR

: INDOOR UNIT : TERMINAL STRIP

OUTDOOR

: OUTDOOR UNIT : WIRE CLAMP

BLK : BLACK GRN : GREEN PNK : PINK WHT : WHITE

BLU : BLUE GRY : GREY PRP, PPL : PURPLE YLW : YELLOW

BRN : BROWN ORG : ORANGE RED : RED

A*P : PRINTED CIRCUIT BOARD PS : SWITCHING POWER SUPPLY

BS* : PUSH BUTTON ON / OFF, OPERATION SWITCH PTC* : THERMISTOR PTC

BZ, H*O : BUZZER Q* : INSULATED GATE BIPOLAR TRANSISTOR (IGBT)

C* : CAPACITOR Q*DI : EARTH LEAK CIRCUIT BREAKER

AC*, CN*, E*, HA*, HE, HL*, HN*,

HR*, MR*_A, MR*_B, S*, U, V,

W, X*A

: CONNECTION, CONNECTOR Q*L : OVERLOAD PROTECTOR

D*, V*D : DIODE Q*M : THERM

O SWITCH

DB* : DIODE BRIDGE R* : RESISTOR

DS* : DIP SWITCH R*T : THERMISTOR

E*H : HEATER RC : RECEIVER

F*U, FU*

(FOR CHARACTERISTICS

REFER TO PCB INSIDE YOUR UNIT)

: FUSE S*C : LIMIT SWITCH

FG* : CONNECTOR (FRAME GROUND) S*L : FLOAT SWITCH

H* : HARNESS S*NPH : PRESSURE SENSOR (HIGH)

H*P, LED*, V*L : PILOT LAMP, LIGHT EMITTING DIODE S*NPL : PRESSURE SENSOR (LOW)

HAP : LIGHT EMITTING DIODE (SERVICE MONITOR GREEN) S*PH, HPS* : PRESSURE SWITCH (HIGH)

HIGH VOLTAGE : HIGH VOLTAGE S*PL : PRESSURE SWITCH (L

OW)

IES : INTELLIGENT EYE SENSOR S*T : THERMOSTAT

IPM* : INTELLIGENT POWER MODULE S*W, SW* : OPERATION SWITCH

K*R, KCR, KFR, KHuR : MAGNETIC RELAY SA* : SURGE ARRESTOR

L : LIVE SR*, WLU : SIGNAL RECEIVER

L* : COIL SS* : SELECTOR SWITCH

L*R : REACTOR SHEET METAL : TERMINAL STRIP FIXED PLATE

M* : STEPPER MOTOR T*R : TRANSFORMER

M*C : COMPRESSOR MOTOR TC, TRC : TRANSMITTER

M*F : FAN MOTOR V*, R*V : VARISTOR

M*P : DRAIN PUMP MOTOR V*R : DIODE BRIDGE

M*S : SWING MOTOR WRC : WIRELESS REMOTE CONTROLLER

MR*, MRCW*, MRM*, MR

N* : MAGNETIC RELAY X* : TERMINAL

N : NEUTRAL X*M : TERMINAL STRIP (BLOCK)

n = * NUMBER OF PASSES THROUGH FERRITE CORE Y*E : ELECTRONIC EXPANSION VALVE COIL

PAM : PULSE-AMPLITUDE MODULATION Y*R, Y*S : REVERSING SOLENOID VALVE COIL

PCB* : PRINTED CIRCUIT BOARD Z*C : FERRITE CORE

PM* : POWER MODULE ZF, Z*F : NOISE FILTER
