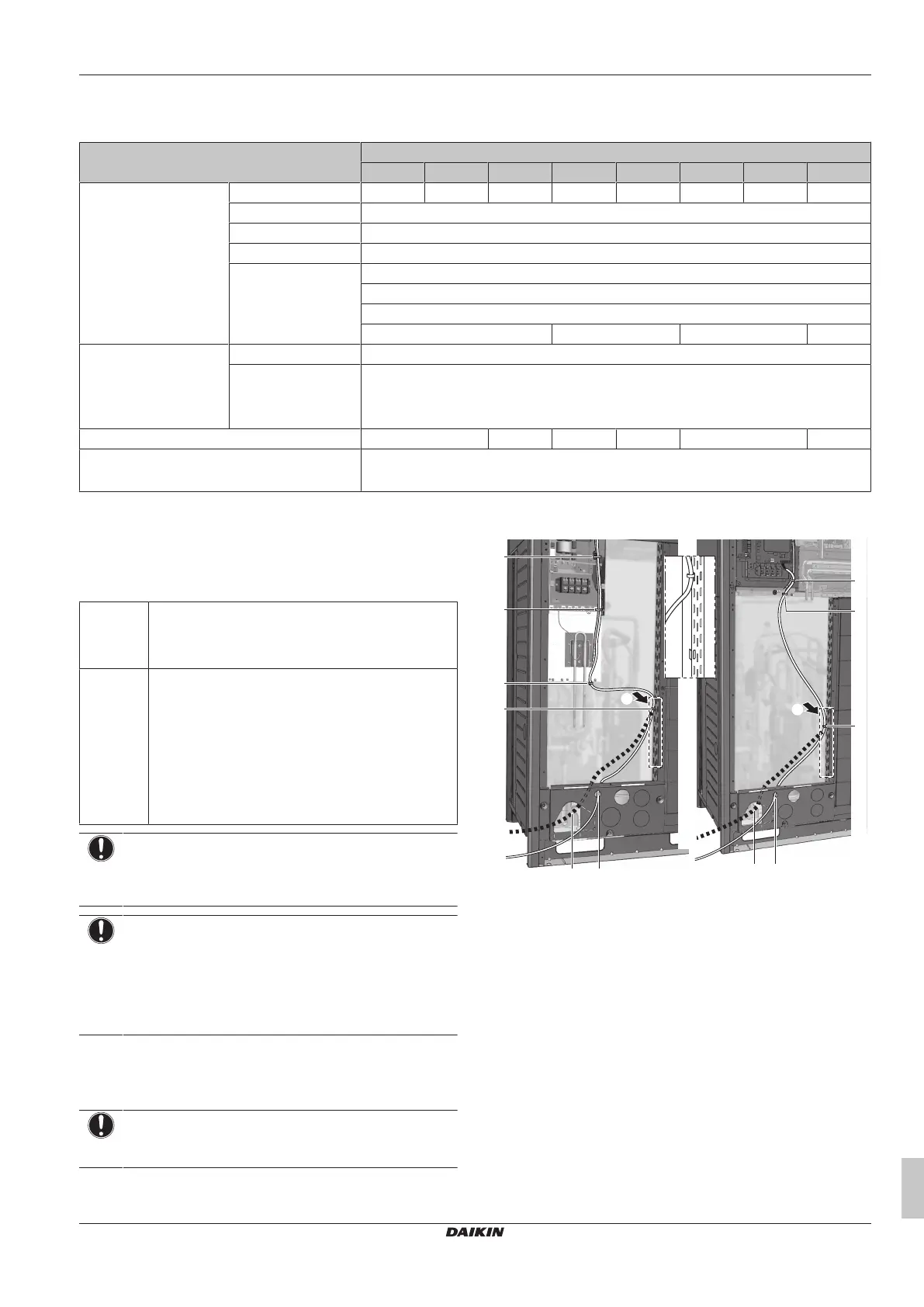

17 Electrical installation
Installation and operation manual
39
REMA5A7Y1B9+REYA8~20A7Y1B9
VRV 5 heat recovery
4P797563-1 – 2024.11
17.2 Specifications of standard wiring components
For standard combinations
Component Single outdoor units
REMA5 REYA8 REYA10 REYA12 REYA14 REYA16 REYA18 REYA20
Power supply cable MCA
(a)
15A 16.1A 22A 24A 27A 31A 35A 42A
Voltage 380-415V
Phase 3N~
Frequency 50Hz
Wire size 5 core cable
Must comply with national wiring regulation.
Wire size based on the current, but not less than:
2.5mm² 4mm² 6mm² 10mm²
Interconnection cable Voltage 220-240V
Wire size Only use harmonised wire providing double insulation and suitable for applicable voltage.
2-core cable
0.75-1.5mm² based on the current
Recommended field fuse 20A 25A 32A 32A 40A 50A
Earth leakage circuit breaker/ residual current
circuit breaker
Must comply with national wiring regulation.
(a)
MCA=Minimum circuit ampacity. Stated values are maximum values.
Please use the table above to specify the requirements for the power
supply wiring.
For non-standard combinations
Calculate the recommended fuse capacity.
Formula Calculate, by adding the minimum circuit amps of each
used unit (according to the table above), multiply the
result by 1.1 and select the next higher recommended
fuse capacity.
Example Combining the REYA24 by using the REYA10 and
REYA14.
▪ Minimum circuit ampacity of the REYA10=22.0A
▪ Minimum circuit ampacity of the REYA14=27.0A
Accordingly, the minimum circuit ampacity of the
REYA24=22.0+27.0=49.0A
Multiply the above result by 1.1: (49.0A×1.1)=53.9A,
so the recommended fuse capacity would be 63A.
NOTICE
When using residual current operated circuit breakers, be
sure to use a high-speed type 300 mA rated residual
operating current.
NOTICE
We recommend using solid (single-core) wires. If stranded
wires are used, slightly twist the strands to consolidate the
end of the conductor for either direct use in the terminal
clamp or insertion in a round crimp-style terminal. Details
are described in "Guidelines when connecting the electrical
wiring" in the installer reference guide.
17.3 To route and fix the
interconnection wiring
NOTICE
Sheathed and shielded cables are required for
interconnection wiring between outdoor unit and BS unit.
Interconnection wiring can be routed through the front side only. Fix
it to the upper mounting hole.
b a
A
b a
c
c
c
d
c
d
c
5~12 HP 14~20 HP
A
A
a Interconnection wiring (possibility 1)
(a)
b Interconnection wiring (possibility 2)
(a)
c Tie wrap (fix to factory-mounted low voltage wiring)
d Tie wrap
(a)
Knockout hole has to be removed. Close the hole to
avoid small animals or dirt from entering.
