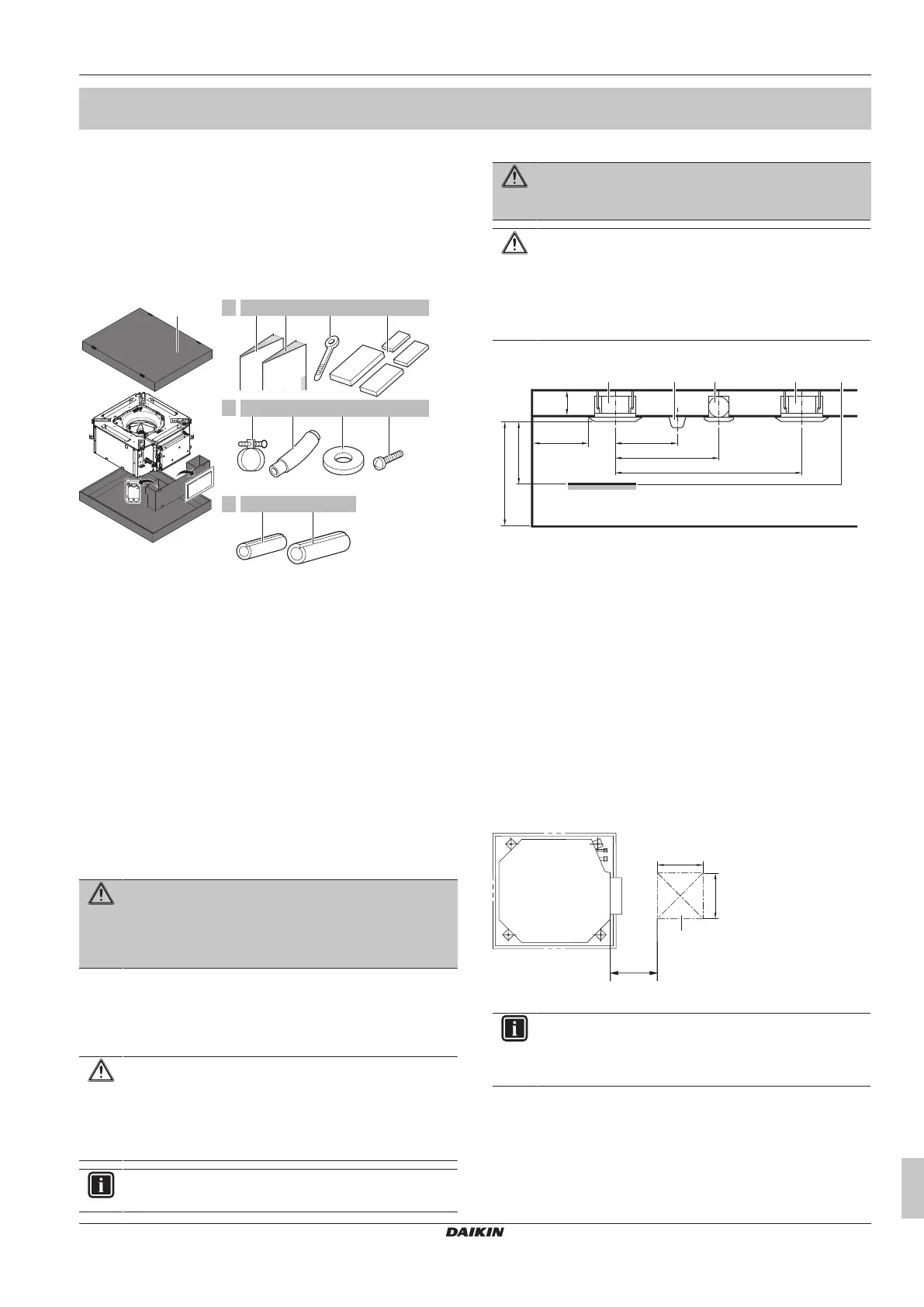

11 About the box
Installation and operation manual
15
FXZA15~50A2VEB
VRV system air conditioner
3P599603-1E – 2024.02
For the installer
11 About the box
11.1 Indoor unit
11.1.1 To remove the accessories from the
indoor unit
7×
1× 1×
4×
1×
1×
1×
1×
dcb
f
e
g
j k
a
4×8×
ih
B
A
B
B
B
A
A
a Paper pattern for installation (top part of packing box)
b General safety precautions
c Indoor unit installation and operation manual
d Tie wraps
e Sealing pads: Large (drain pipe), medium 1 (gas pipe),
medium 2 (liquid pipe), small (electrical wiring)
f Metal clamp
g Drain hose
h Washers for hanger brackets
i Screws
j Insulation piece: Small (liquid pipe)
k Insulation piece: Large (gas pipe)
12 Unit installation
12.1 Preparing the installation site
Avoid installation in an environment with a lot of organic solvents
such as ink and siloxane.
WARNING
The appliance shall be stored in a room without
continuously operating ignition sources (example: open
flames, an operating gas appliance or an operating electric
heater).
12.1.1 Installation site requirements of the
indoor unit
Minimum floor area requirements
CAUTION
The total refrigerant charge in the system cannot exceed
the requirements for minimum floor area of the smallest
room that is served. For minimum floor area requirements
for indoor units, see the installation and operation manual
of the outdoor unit.
INFORMATION
The sound pressure level is less than 70dBA.
WARNING
Keep any required ventilation openings clear of
obstructions.
CAUTION
Appliance NOT accessible to the general public, install it in
a secured area, protected from easy access.
This unit, both indoor and outdoor, is suitable for
installation in a commercial and light industrial
environment.
▪ Spacing. Mind the following requirements:
(mm)
≥1500
≥
2000
≥
4000
≥1500
A
B
C
ba dac
A Minimum distance to the wall
≥1500mm: Air outlet open
≥200mm: Air outlet closed
B Minimum and maximum distance to the floor (see below)
C ≥295mm: In case of installation with BYFQ60B
≥308mm: In case of installation with BYFQ60C
a Indoor unit
b Lighting (the figure shows ceiling-mounted lighting, but
recessed lighting is also allowed)
c Air fan
d Static volume (example: table)
▪ B: Minimum and maximum distance to the floor:
▪ Minimum: 2.5m to avoid accidental touching.
▪ Maximum: Depends on the air flow directions and the capacity
class. Also make sure the "Ceiling height" field setting
corresponds with the actual situation. See "16.1 Field
setting"[421].
▪ Install inspection opening on the control box side to make
maintenance easier.
450
450
a
(mm)
(300)
a Inspection opening
INFORMATION
Some options may require additional service space. Sees
the installation manual of the used option before
installation.
