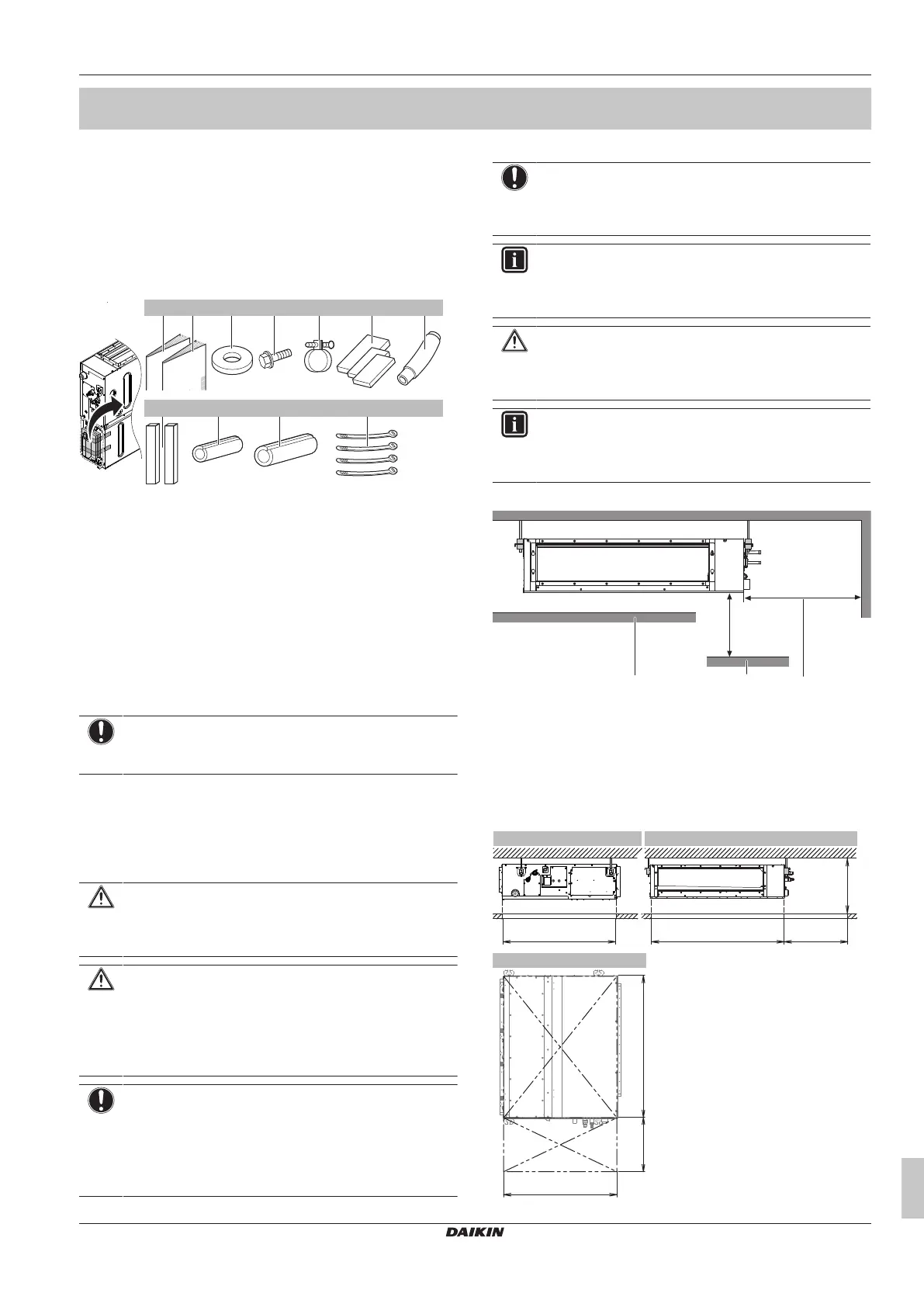

11 About the box
Installation and operation manual
11
FXSN-B
CO₂ VRV system air conditioner
3P672850-3C – 2024.11
For the installer
11 About the box
11.1 Indoor unit
11.1.1 To remove the accessories from the
indoor unit
3×40×8×1× 1× 1×
1×
1×
2×
1×
dcba e f g
h i j k
4×
a Installation and operation manual
b General safety precautions
c Washers for hanger brackets
d Screws for duct flanges
e Metal clamp
f Sealing pads: Large (drain pipe), medium 1 (gas pipe),
medium 2 (liquid pipe)
g Drain hose
h Small sealing pad
i Insulation piece: Small (liquid pipe)
j Insulation piece: Large (gas pipe)
k Tie wraps
12 Unit installation
NOTICE
Make sure to install all necessary countermeasures in case
of refrigerant leakage according to standard EN378.
12.1 Preparing the installation site
12.1.1 Installation site requirements of the
indoor unit
CAUTION
This equipment is NOT intended for use in residential
locations and will NOT guarantee to provide adequate
protection to radio reception in such locations.
CAUTION
Appliance NOT accessible to the general public, install it in
a secured area, protected from easy access.
This unit, both indoor and outdoor, is suitable for
installation in a commercial and light industrial
environment.
NOTICE
▪ The professional installer shall evaluate the EMC
situation before installation, if the equipment is installed
closer than 30m to a residential location.
▪ Special installation measures are NOT required to
minimize EMC (electro-magnetic) emissions.
NOTICE
This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.
INFORMATION
Equipment meets the requirement for commercial and
light-industrial location when professionally installed and
maintained.
CAUTION
Excessive concentrations of refrigerant R744 (CO
2
) in a
closed room can lead to unconsciousness and oxygen
deficiency. Take appropriate measures.
INFORMATION
Mind the following dimensions of the space necessary for
the correct appliance installation, including the minimum
permissible distances to adjacent structures.
▪ Spacing. Mind the following requirements:
≥500
c
A
(mm)
b
a
A Minimum distance to the floor is 2.5m in case the fan
is covered (e.g. false ceiling, grille, …)
a Ceiling
b Floor surface
c Maintenance space
Service space and ceiling opening size
Make sure ceiling opening is big enough to ensure a sufficient
clearance for maintenance and service.
800
800
(mm)
a
b:
≥
500
a
A B
C
≥500
≥
300
