24 | Technical data
Installer and user reference guide
82
FXNA-A
VRV system air conditioner
4P785124-1 – 2024.09
24 Technical data
▪ A subset of the latest technical data is available on the regional Daikin website
(publicly accessible).
▪ The full set of the latest technical data is available on the Daikin Business Portal
(authentication required).

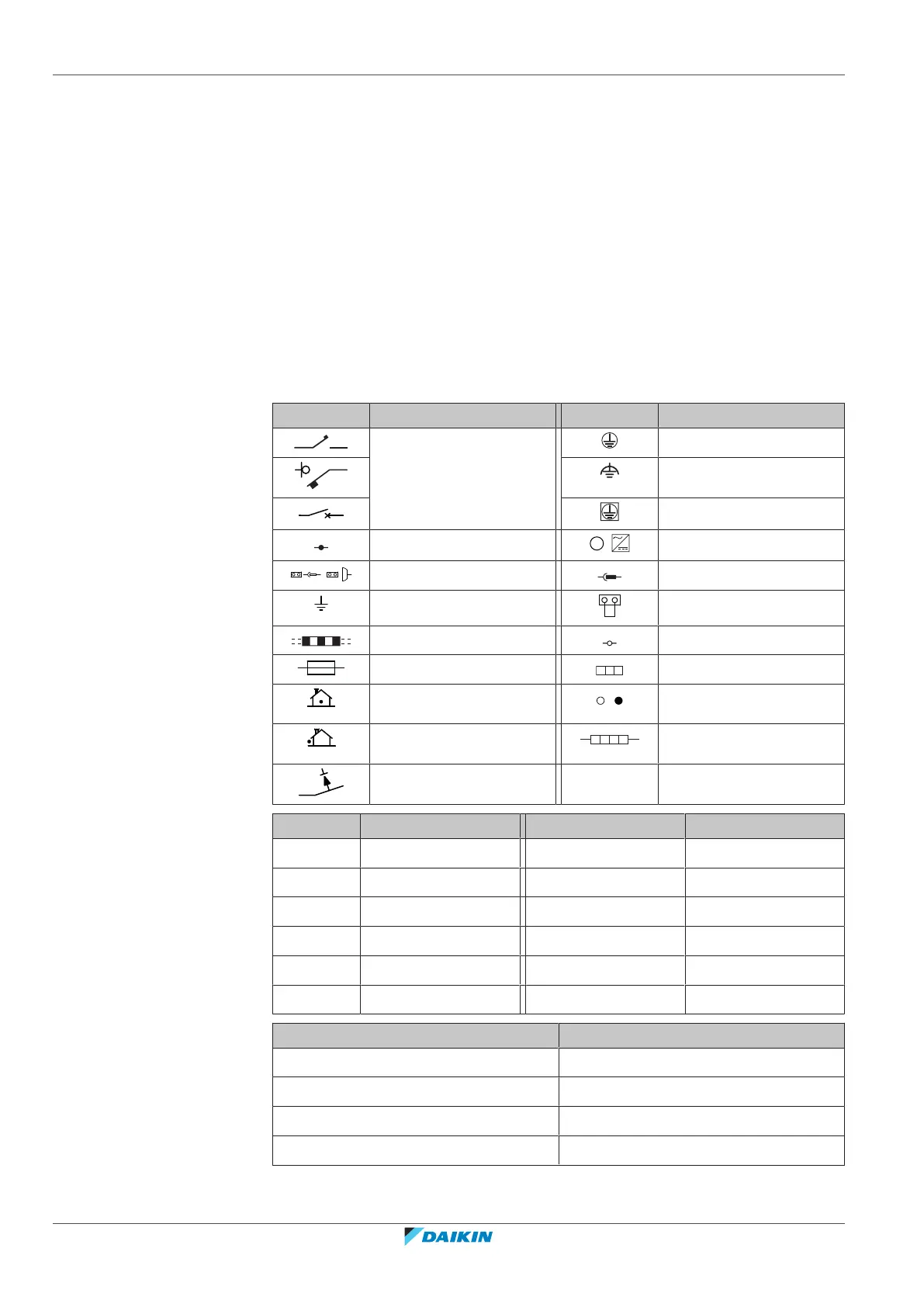

24.1 Wiring diagram
24.1.1 Unified wiring diagram legend
For applied parts and numbering, refer to the wiring diagram on the unit. Part
numbering is by Arabic numbers in ascending order for each part and is
represented in the overview below by "*" in the part code.
Symbol Meaning Symbol Meaning
Circuit breaker Protective earth
Noiseless earth
Protective earth (screw)
Connection
A
,
Rectifier
,
Connector Relay connector
Earth Short-circuit connector
Field wiring Terminal
Fuse Terminal strip
INDOOR
Indoor unit Wire clamp
OUTDOOR
Outdoor unit Heater
Residual current device
Symbol Colour Symbol Colour
BLK Black ORG Orange
BLU Blue PNK Pink
BRN Brown PRP, PPL Purple
GRN Green RED Red
GRY Grey WHT White
SKY BLU Sky blue YLW Yellow
Symbol Meaning
A*P Printed circuit board
BS* Pushbutton ON/OFF, operation switch
BZ, H*O Buzzer
C* Capacitor
