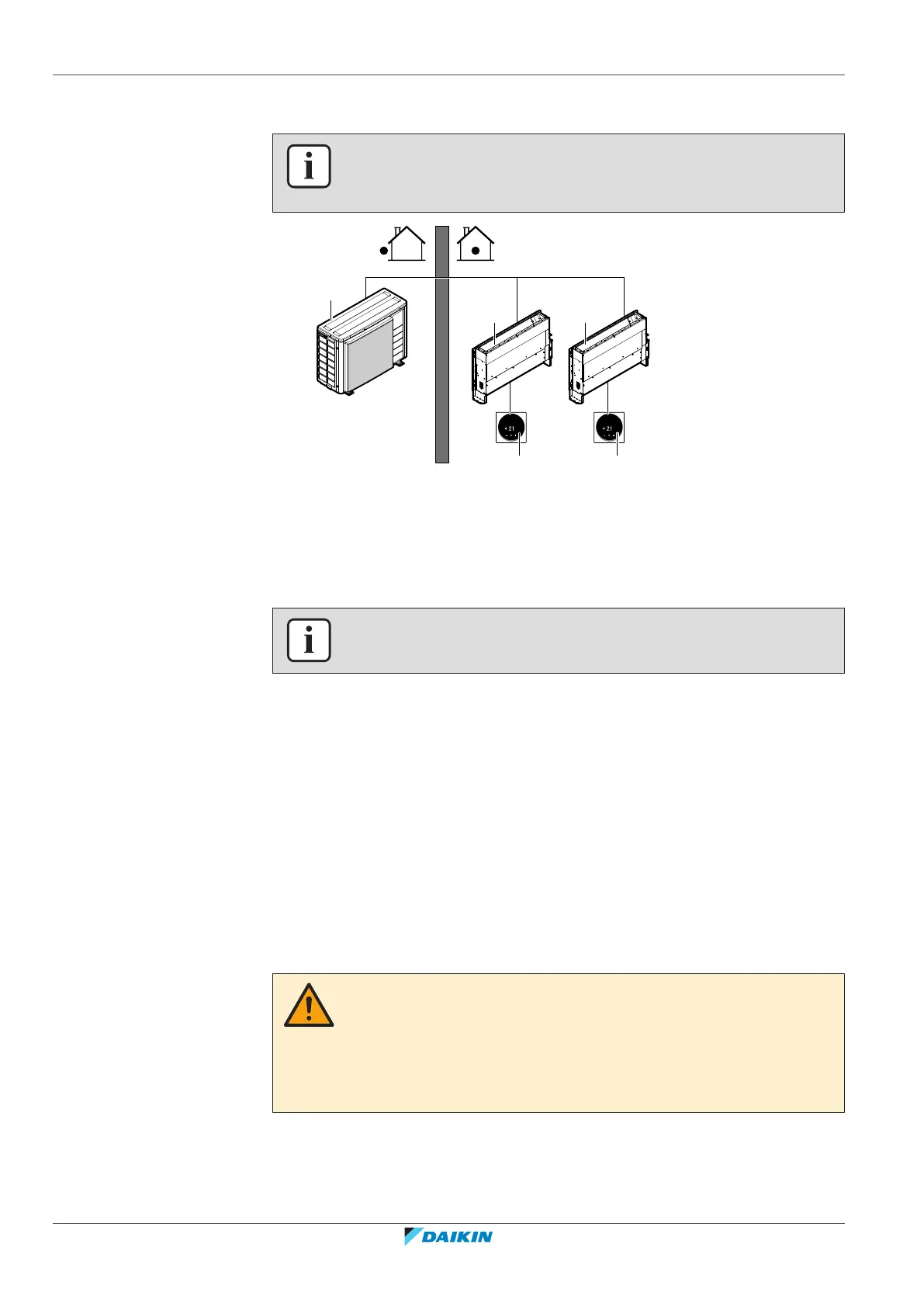

15 | About the units and options
Installer and user reference guide
46
FXNA-A
VRV system air conditioner
4P785124-1 – 2024.09
15.3 System layout
INFORMATION
The following figure is an example and may NOT completely match your system
layout.
°
C
c
°
C
c
b
a a
a Indoor unit
b Outdoor unit
c User interface
15.4 Combining units and options
INFORMATION
Certain options may NOT be available in your country.
15.4.1 Possible options for the indoor unit
Make sure you have the following mandatory options:
▪ User interface: Only a safety system compatible user interface can be used. See
the technical data sheet for user interface compatibility (e.g. BRC1H52*)
Note: The user interface will generate a visible and audible warning in case of
refrigerant leakage detection. E.g., BRC1H52* user interfaces can generate an
alarm of 65dB (sound pressure, measured at a distance of 1m from the alarm).
Sound data is available in the technical data sheet of the user interface. The alarm
should always be 15dB louder than the background noise of the room. In case of
higher background noise we recommend connecting an external alarm (field
supply) to the optional output PCB of the indoor unit. This field supplied alarm
must be mounted in every room where an indoor unit is installed.
CAUTION
▪ Each indoor unit has to be connected to a separate user interface. Only a safety
system compatible remote controller can be used as the user interface. See
technical data sheet for remote controller compatibility (e.g. BRC1H52/82*).
▪ The user interface has to be put in the same room as the indoor unit. For details,
please refer to the installation and operation manual of the user interface.
