Installation and operation manual
3
FXLQ20~63P7VEB + FXNQ20~63P7VEB
VRV System air conditioners
4PW59127-1A

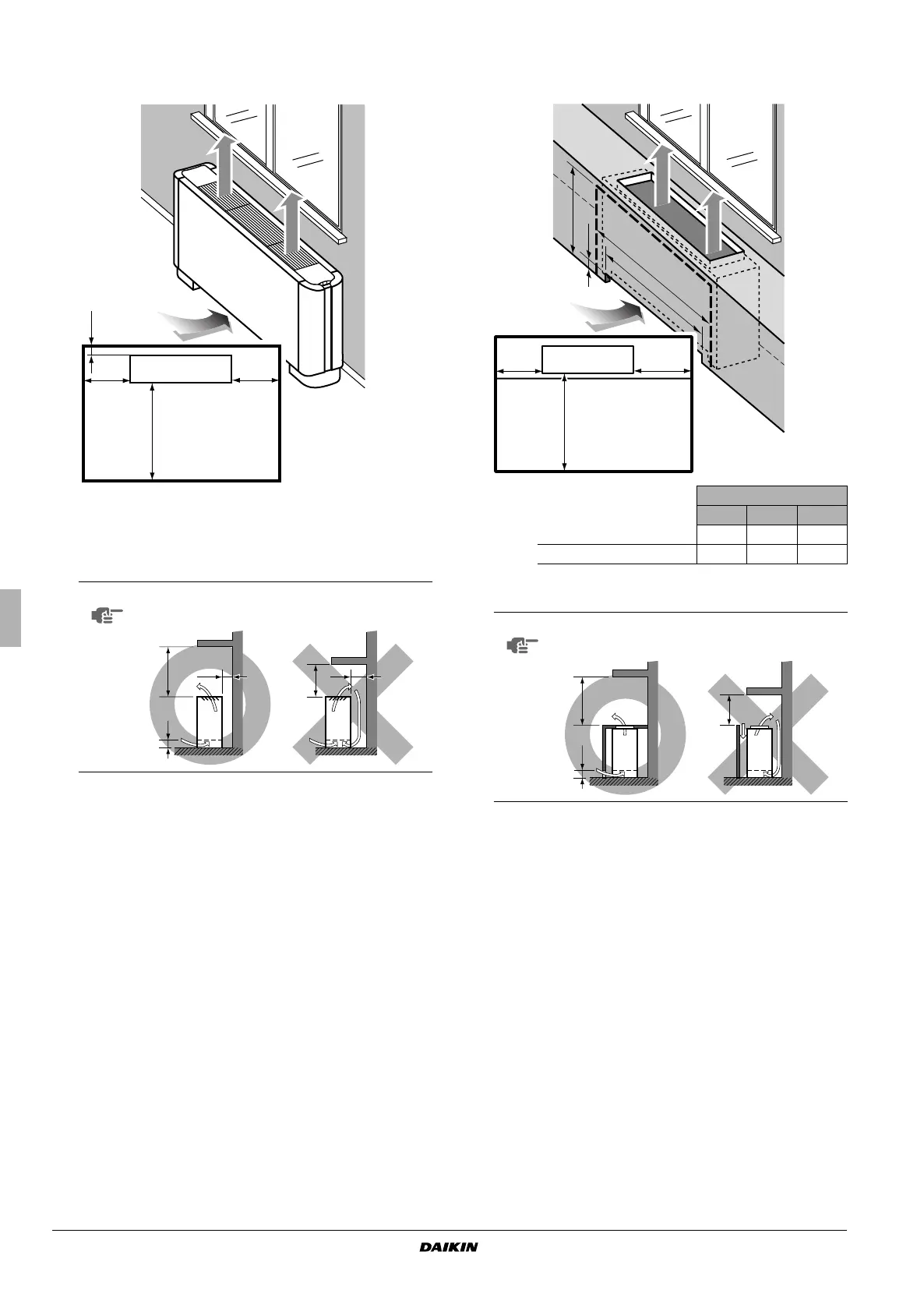

2 Install the unit according to the figures below.
Unit of measurement = mm
For FXLQ units only
note
(b)
*100 mm in case of wall mounting
For FXNQ units only
note
A Front side
B Air inlet direction
C Air outlet direction
(a)
(a) The air outlet direction can be chosen by rotating the discharge grill.
NOTE
Make sure no short circuit of air is caused when
placing the unit directly under a windowsill.
≥100 ≥100
≥1000
≤20
A
B
C
C
A
≥1750
B
<1750
C
B
(b)
≤20 >20
C
AA
B
C
B
Model
20+25 32+40 50+63
A Width of air inlet 570 710 990
B Width of maintenance area 1030 1170 1450
C Air inlet direction
D Air outlet direction
NOTE
Make sure no short circuit of air is caused when
placing the unit directly under a windowsill.
≥100 ≥150
≥1000
C
A
B
≥100
625
D
D
≥1750
C
<1750
DC
≥100
D
C
DC
(b)
≥100 mm in case of wall mounting
01_EN_TR.fm Page 6 Thursday, November 18, 2010 10:45 AM
