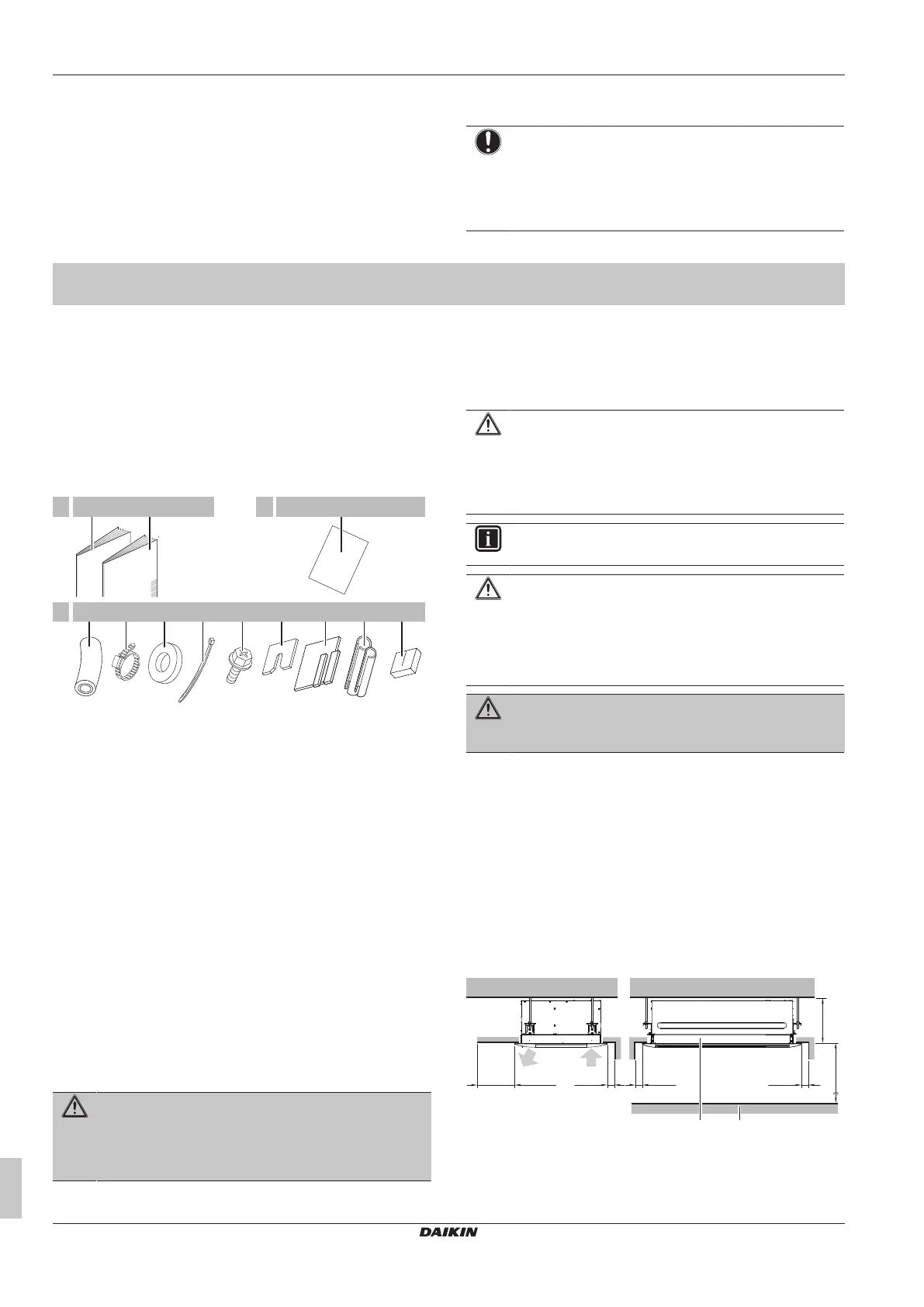

9 Relocation
Installation and operation manual
14
FXKA-A
VRV system air conditioner
3P747532-2A – 2023.11
9 Relocation
Contact your dealer to remove and reinstall the entire unit. Moving
units requires technical expertise.
10 Disposal
NOTICE
Do NOT try to dismantle the system yourself: dismantling
of the system, treatment of the refrigerant, oil and other
parts MUST comply with applicable legislation. Units
MUST be treated at a specialised treatment facility for
reuse, recycling and recovery.
For the installer
11 About the box
11.1 Indoor unit
11.1.1 To remove the accessories from the
indoor unit
1 Remove the accessories A, B, C:
1×
2×2×
1×
1×
6×8× 4×4×
a b
1×1×
f i
3×
j k lg hd e
A B
C
c
A Located under the unit
a Installation and operation manual
b General safety precautions
B Located under the unit
c Paper pattern for installation
C Located on the side of the unit
d Drain hose
e Metal clamp
f Clamp washer for hanger bracket
g Tie wraps
h Screw
i Clamp washer for hanger bracket
j Sealing pad: Large (drain piping), medium (gas piping)
and small (liquid piping)
k Insulation piece: Large (gas pipe), small (liquid pipe)
l Sealing pad (for covering the cable bushing)
12 Unit installation
12.1 Preparing the installation site
Avoid installation in an environment with a lot of organic solvents
such as ink and siloxane.
WARNING
The appliance shall be stored in a room without
continuously operating ignition sources (example: open
flames, an operating gas appliance or an operating electric
heater).
12.1.1 Installation site requirements of the
indoor unit
Minimum floor area requirements
CAUTION
The total refrigerant charge and/or releasable charge m
rl
in
the system cannot exceed the requirements for minimum
floor area of the smallest room that is served. For minimum
floor area requirements for indoor units, see the installation
and operation manual of the outdoor unit.
INFORMATION
The sound pressure level is less than 70dBA.
CAUTION
Appliance NOT accessible to the general public, install it in
a secured area, protected from easy access.
This unit, both indoor and outdoor, is suitable for
installation in a commercial and light industrial
environment.
WARNING
Keep any required ventilation openings clear of
obstructions.
▪ Take care that in the event of a water leak, water cannot cause
any damage to the installation space and surroundings.
▪ Choose a location where the operation noise or the hot/cold air
discharged from the unit will not disturb anyone and the location is
selected according the applicable legislation.
▪ Drainage. Make sure condensation water can be evacuated
properly.
▪ Paper pattern for installation (accessory). Use the paper pattern
when selecting the installation location. It contains the dimensions
of the unit and locations of suspension bolts and piping
connection side.
▪ Spacing. Mind the following requirements:
A: 150A: 150
A: 1500A: 1500
A: 150
≥260
B: ≥2500
b
a
c
d
(mm)
A Minimum distance to the wall
Minimum: 1.5m on the air outlet side and 150mm on the
other sides
B Minimum and maximum distance to the floor
Minimum: 2.5m to avoid accidental touching.
