11 About the box
Installation and operation manual
14
FXDA10~63A2VEB
VRV system air conditioner
3P599562-1C – 2022.02
For the installer

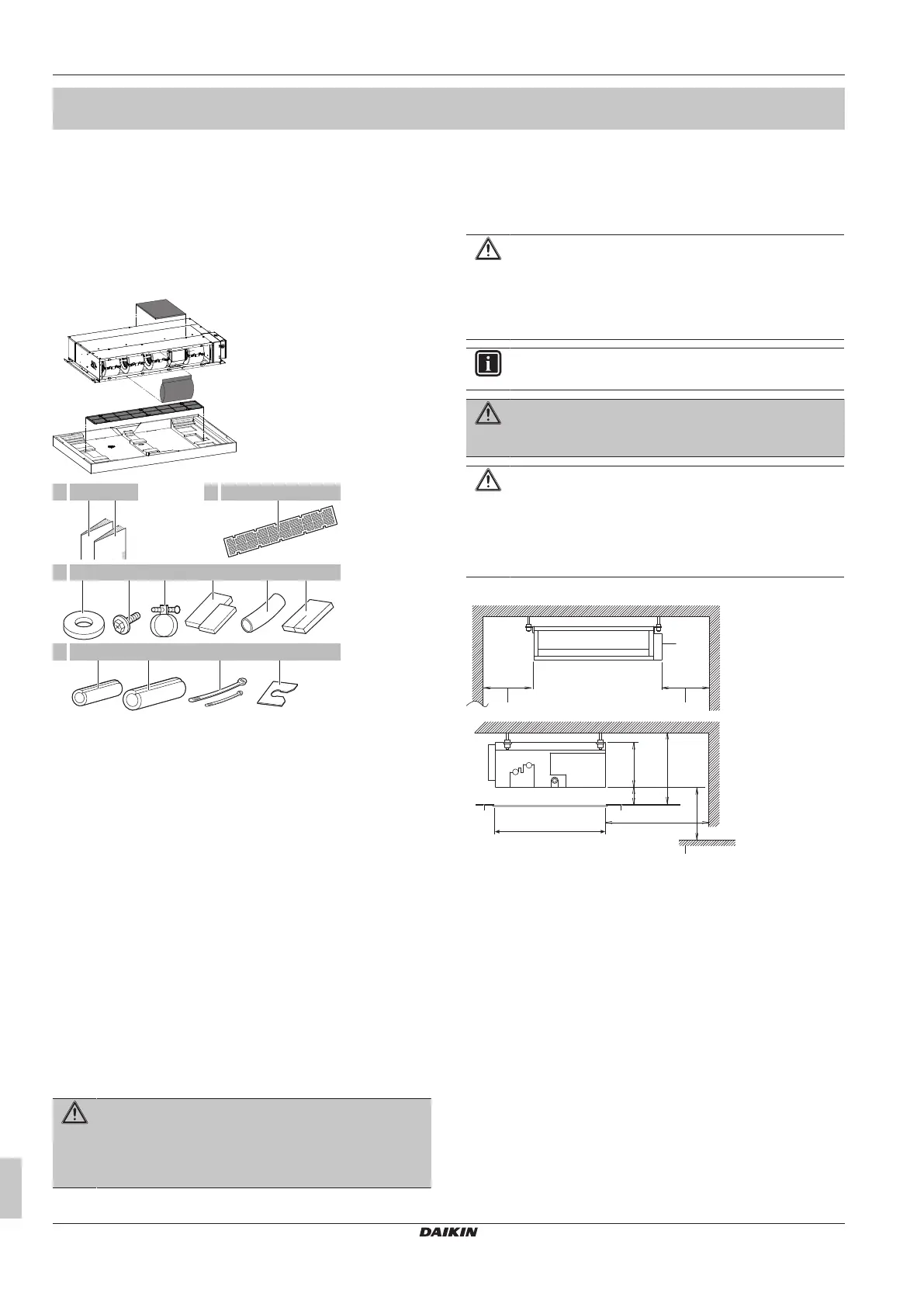

11 About the box
11.1 Indoor unit
11.1.1 To remove the accessories from the
indoor unit
C
A
B
1×
a
1×
b c
1×
C
A
B
1×
1×
26×8× 1× 1× 2×
C
ed f g h i
1× 1× 4×
8×
4×
j k l m
A On the unit
a Installation and operation manual
b General safety precautions
B On the bottom of the packing box
c Air filter
C In the fan motor space
d Washers for hanger brackets
e Screws for duct flanges
f Metal clamp
g Sealing pads: medium and large
h Drain hose
i Sealing material
j Insulation piece: Small (liquid pipe)
k Insulation piece: Large (gas pipe)
l Tie wraps: small and large
m Washer fixing plate
12 Unit installation
12.1 Preparing the installation site
Avoid installation in an environment with a lot of organic solvents
such as ink and siloxane.
WARNING
The appliance shall be stored in a room without
continuously operating ignition sources (example: open
flames, an operating gas appliance or an operating electric
heater).
12.1.1 Installation site requirements of the
indoor unit
Minimum floor area requirements
CAUTION
The total refrigerant charge in the system cannot exceed
the requirements for minimum floor area of the smallest
room that is served. For minimum floor area requirements
for indoor units, see the installation and operation manual
of the outdoor unit.
INFORMATION
The sound pressure level is less than 70dBA.
WARNING
Keep any required ventilation openings clear of
obstructions.
CAUTION
Appliance NOT accessible to the general public, install it in
a secured area, protected from easy access.
This unit, both indoor and outdoor, is suitable for
installation in a commercial and light industrial
environment.
▪ Spacing. Mind the following requirements:
c c
d
≥620
200
e ≥240
A
≥20
≥300
b
≥300
b
f
a
(mm)
≥400
A Minimum distance to the floor: 2.5m to avoid
accidental touching
a Control box
b Maintenance space
c Ceiling
d Ceiling opening
e Select the dimension to ensure downward slope of at
least 1/100
f Floor surface
▪ Discharge grille. Minimum requirement installation height of
discharge grille ≥1.8m.
▪ Ceiling opening size. Make sure the ceiling opening is within the
following limits:
