7 | Maintenance and service
User reference guide
59
FTXJ-A(W)(S)(B)
Daikin room air conditioner
4P518786-9J – 2022.05
a Backside of the front panel
b Fixing tab
c Support
3 Close the front panel.
4 Gently press the front panel down until it clicks.

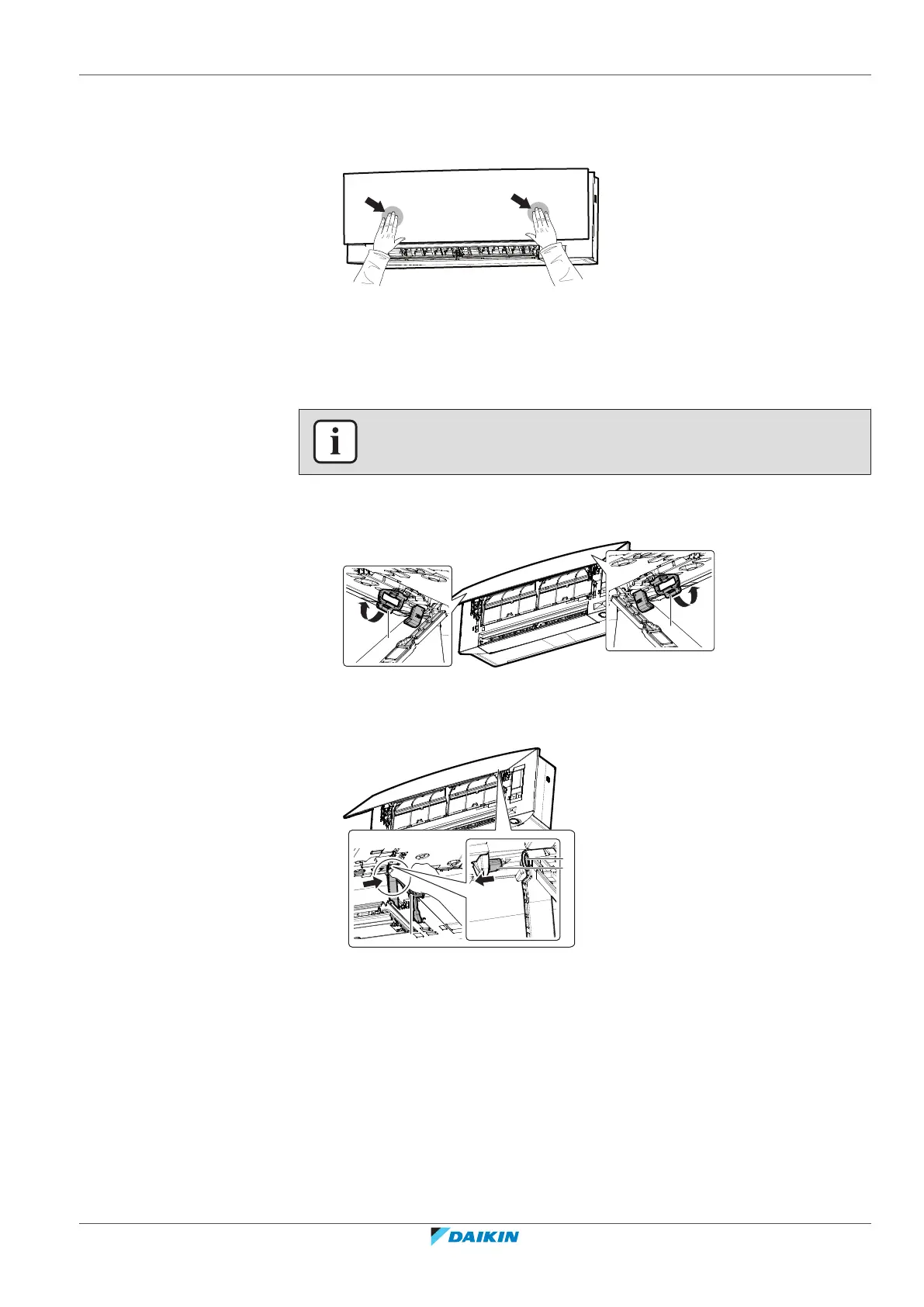

7.10 To remove the front panel
INFORMATION
Remove the front panel only in case it MUST be replaced.
1 Open the front panel. See "7.4To open the front panel"[455].
2 Open the panel locks on the back side of the panel (1on each side).
a
a
a Panel lock
3 Push the right arm lightly to the right to disconnect the shaft from the shaft
slot on the right side.
a
c
b
a Arm
b Shaft slot
c Shaft
4 Disconnect the front panel shaft from the shaft slot on the left side.
