D–EOMCP00104-14EN - 9/82

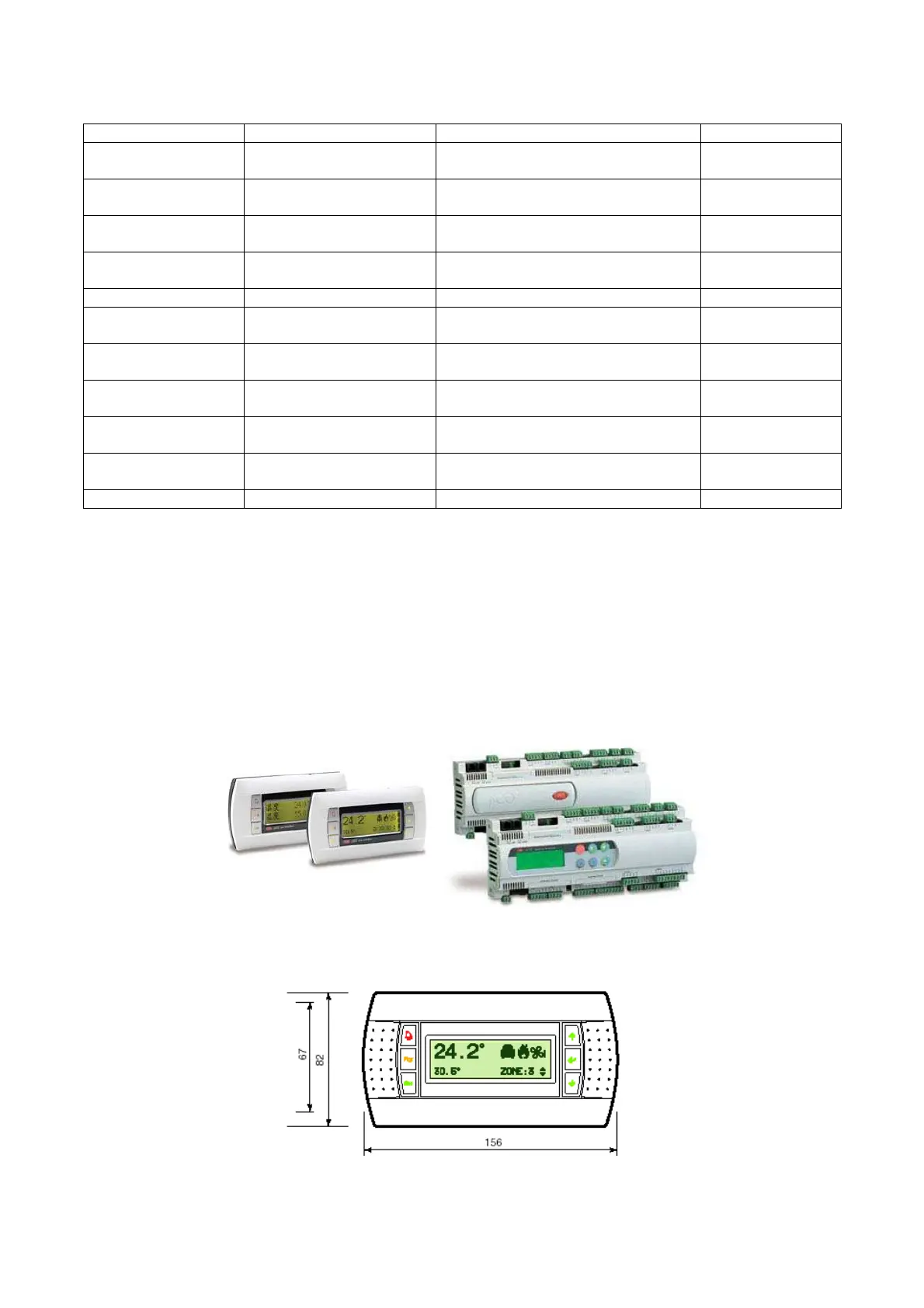

Hardware configuration
Board Type Function Mandatory
pCO
e
#1
Large
Built In display (*)
Unit control
Compressors #1 & #2 control
Y
pCO
e
#2 Large
Compressors #3 & #4 control Only on 3 & 4
compressors units
pCO
e
#1 -
Additional hardware for compressors #1
& 2 or for compressors #3 & #4 (**)
N
pCO
e
#2 -
Heat recovery or Heat pump control
(***)
N
pCO
e
#3 - Water pump control N
pCO
e
#4 -
Additional fan steps for compressors #1
& #2 or for compressors #3 & #4 (**)
N
EEXV driver #1 EVD200
Electronic expansion valve control for
compressor #1
N
EEXV driver #2 EVD200
Electronic expansion valve control for
compressor #2
N
EEXV driver #3 EVD200
Electronic expansion valve control for
compressor #3
N
EEXV driver #4 EVD200
Electronic expansion valve control for
compressor #4
N
Additional display PGD Special characters or additional display N
(*) The contemporaneous presence of built-in display and additional PGD may be accepted.
(**) Depending on the pLAN address of the controller where the expansion is connected
(***) pCO
e
#2 connected to ASDU01C #2 is foreseen only for heat pump control
Control Panel
Control Panel is constituted by a backlight display 4 lines by 20 characters with a 6 key
keypad whose functions will be illustrated in the following.
This display can be built-in as a part of the master controller (standard option), or it can be
optionally a separate device based on the control panel PGD serigraphic technology.
Figure 2 - Control panel – PGD and Built-in display option
No setting is required for the built in display, while PGD device require addressing based on
a procedure through keypad (see plan appendix for details).
Fig. 3 – PGD Display
