D–EOMCP00104-14EN - 72/82
APPENDIX D: COMMUNICATION
The control supports communication on the serial port with the following protocols :
•
Carel Proprietary protocol (local and remote), and MODEM/GSM modem through it
•
MODbus Standard RTU
•
LONTalk FTT10A (chiller profile)
•
BACnet MS/TP & IP (single master points list)
•
EKCSCII communication over proprietary protocol for unit and site optimization,
monitoring and sequencing
Your preferred protocol is Menu selectable under User Password (Protocol Selectability™ )
Protocol Menu is reacheable through the arrow keys under Settings/USER/Setpoints menu.
To perform the right communication the serial card inserted in the serial plug of the
controller must comply with the protocol selected.

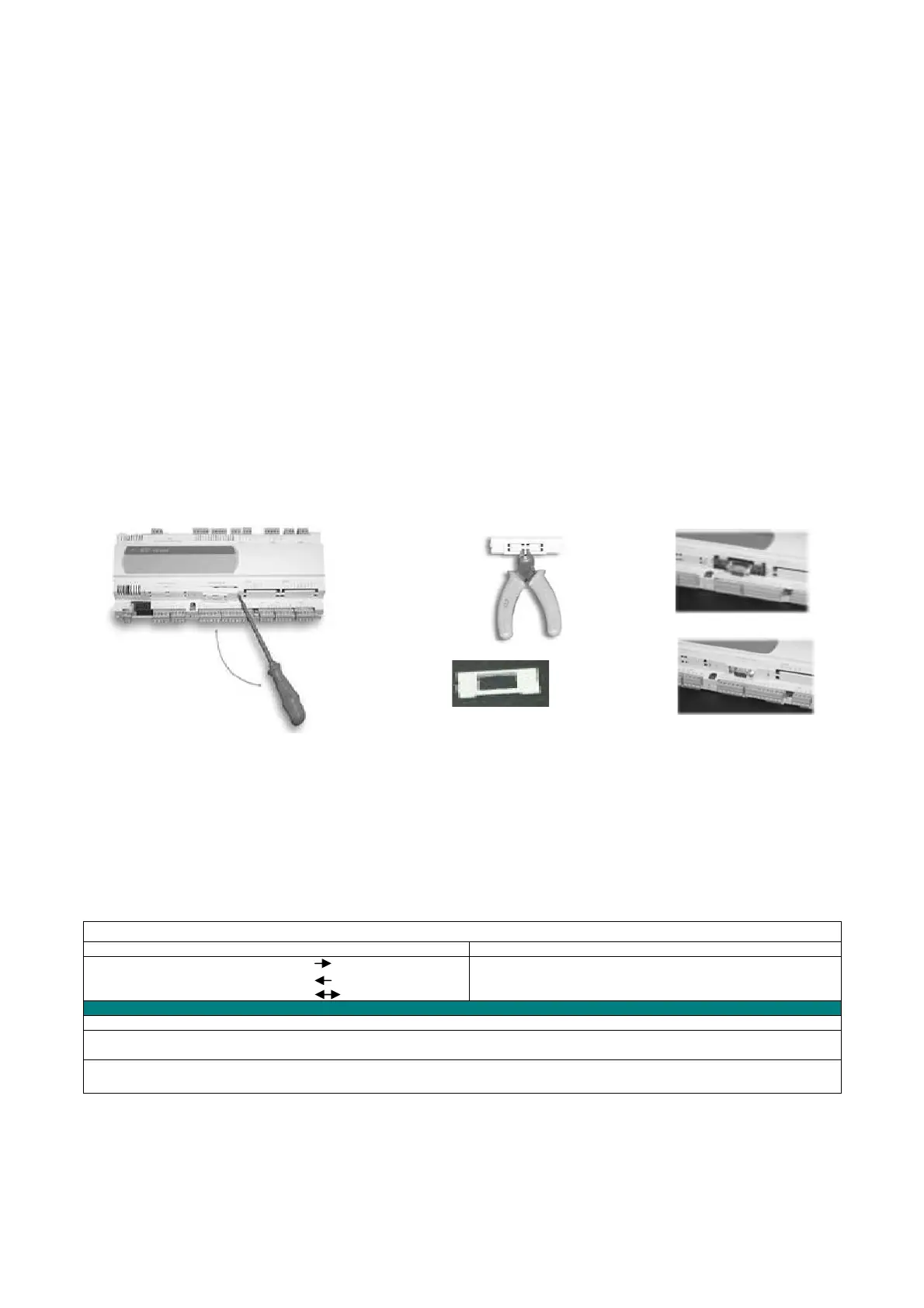

As per the pictures above, to properly plug-in the card, open the cover of the serial card plug
at the bottom of the controller, securely plug-in the card and close it back.
D. 1 Supervisor List Maps
Supervisory System
Chiller Profile Units (
4-Jul-2007)
For Daikin Aircooled Screw units based on Carel pCO3 technology
This is the full list of variables managed by the supervisory system.
LEGENDA
Flow Type
I
: Supervisor pCO
D
: Digital
O
: Supervisor pCO
I
: Integer
I/O
: Supervisor pCO
A
: Analog
Green Boxes
: CHILLER PROFILE variables
RED Lines: Not Available on all versions
Grey, Yellow, Blue boxes are local variables subject to
modification on release base
Variable format b0b1…b15
refers to word of digitals to be
interpreted bitwise
Variables with single location for multiple circuits (symbol #1234)
are indexed through the COMPSELECT variable index I32
D. 1. 1 Supervisor List: Digital Variables
