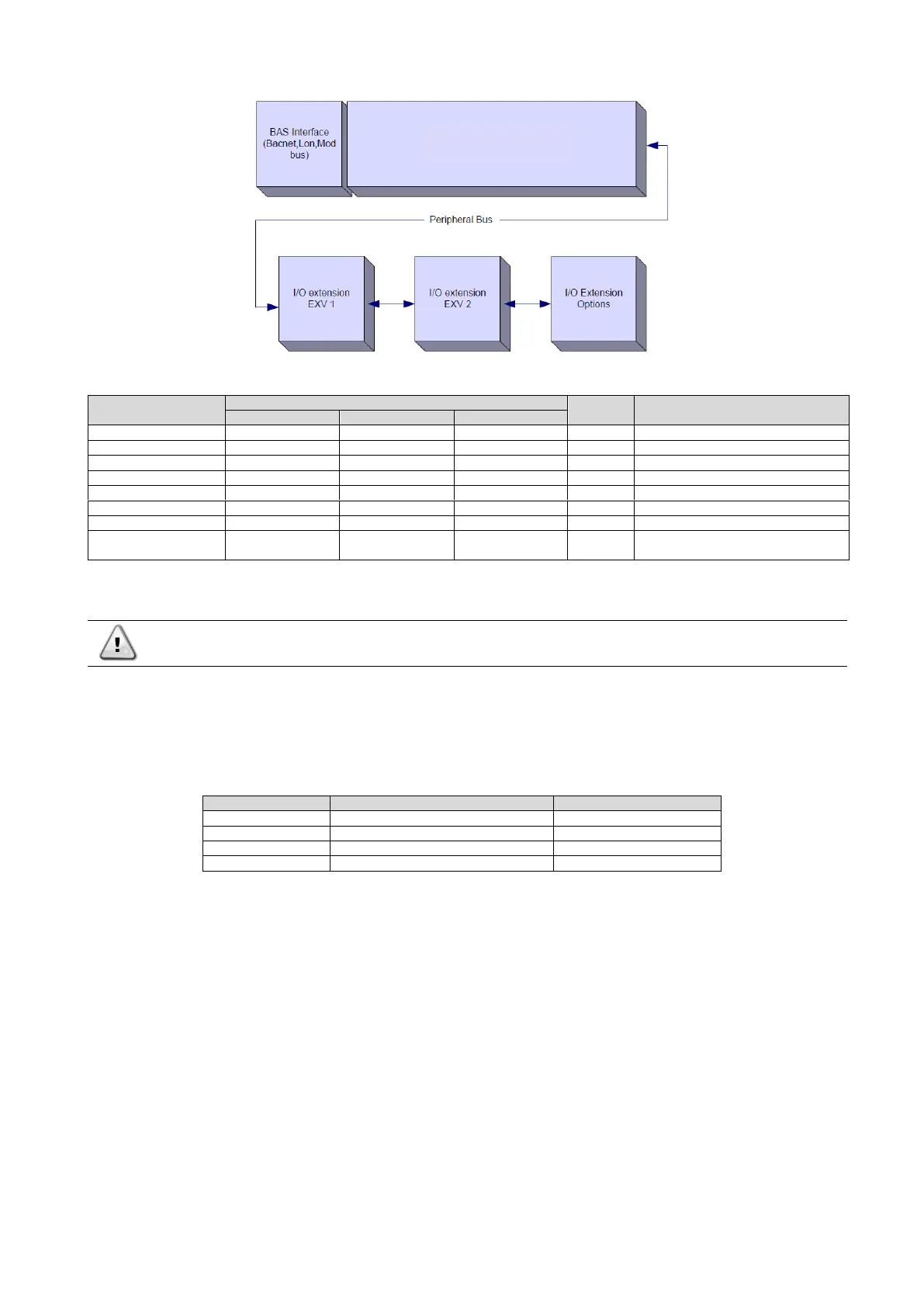

D-EOMZC00106-17_07EN - 12/67
Controller/
Extension Module
Siemens Part Number
Address
Usage
EWAD TZ
EWAD/H TZ B
EWWD/H-VZ
Main Controller
POL687.70/MCQ
POL687.70/MCQ
POL687.00/MCQ
n/a
Used on all configurations
Extension Module
-
-
POL965.00/MCQ
2
Used on all configurations
EEXV Module 1
POL94U.00/MCQ
POL98U.00/MCQ
POL94U.00/MCQ
3
Used on all configurations
EEXV Module 2
POL94U.00/MCQ
POL98U.00/MCQ
-
4
Used when configured for 2 circuits
Extension Module
-
-
POL965.00/MCQ
4
Used when configured for 2 circuits
EEXV Module 2
-
-
POL94U.00/MCQ
5
Used when configured for 2 circuits
Extension Module
POL965.00/MCQ
-
-
5
Used on all configurations
Rapid Restart
Module
POL945.00/MCQ
-
POL945.00/MCQ
22
Used with Rapid Restart option
All boards are supplied from a common 24 Vac source. Extension boards can be directly powered by the Unit Controller.
All boards can be also supplied by a 24Vdc source.
CAUTION: Maintain the correct polarity when connecting the power supply to the boards, otherwise the peripheral
bus communication will not operate and the boards may be damaged.
2.5 Communication Modules
Any of the following modules can be connected directly to the left side of the main controller to allow a BAS or other remote
interface to function. Up to three can be connected to the controller at a time. The controller should automatically detect
and configure itself for new modules after booting up. Removing modules from the unit will require manually changing the
configuration.
Module
Siemens Part Number
Usage
BacNet/IP
POL908.00/MCQ
Optional
Lon
POL906.00/MCQ
Optional
Modbus
POL902.00/MCQ
Optional
BACnet/MSTP
POL904.00/MCQ
Optional
MicroTech™ Main Controller
