EWWP045~065KAW1M + ECB2+3MUAW
Packaged water-cooled water chillers
4PW61664-1
ANNEX II

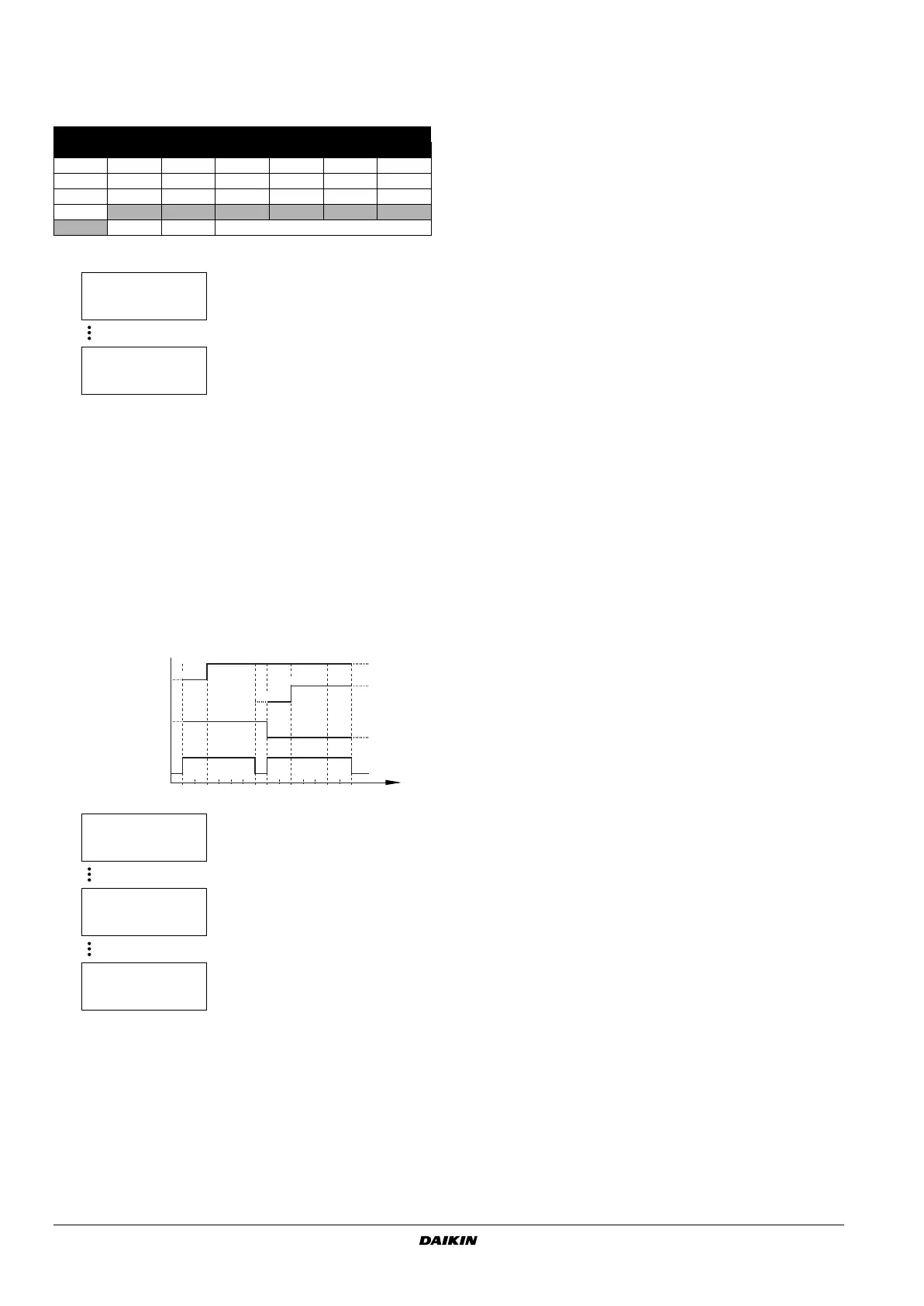

Schedule timer example
To come to the schedule above following settings have to be made:
All days assigned to the same group will work according to the
settings of this group.
In this example setting:
■ all Mondays, Tuesdays, Thursdays and Fridays will work accord-
ing to the settings in group 1 (G1),
■ all Wednesdays will work according to the settings in group 2
(G2),
■ all Saturdays and Sundays will work according to the group 3
(G3),
■ all holiday days will work according to the settings in the holiday
group (H).
All group settings of groups G1, G2, G3, G4 and H work similar as
following example (settings for group 1):
MARCH
MON TUE WED THU FRI SAT SUN
1 G1 2 G1 3 G2 4 G1 5 G1 6 G3 7 G3
8 G1 9 G1 10 G2 11 G1 12 G1 13 G3 14 G3
15 G1 16 G1 17 G2 18 G1 19 G1 20 G3 21 G3
22 G1
23 H 24 H 25 H 26 H 27 H 28 H
29 H 30 G1 31 G2
Screen 1
Screen 2
Screen 3
BX SCHEDULE TIMER
MON : G1 THU : G1 SAT : G3
TUE : G1 FRI : G1 SUN : G3
WED : G2
BX HD PERIOD : 01 TO 03
01 : 23/03 TO 29/03
02 : 00/00 TO 00/00
03 : 00/00 TO 00/00
14.0°C
68 1213 15 18 20
14.0
14.0
°C30.0°C
35.0°C
12.0°C
Cooling inlet setpoint 1
Heating inlet setpoint 1
Cooling
Heating
On
Off
time (h)
BX GROUP1 : 01 TO 03
1 : 06h00 ISP1 E : 12.0
2 : 06h00 ON COOL
3 : 08h00 ISP1 E : 14.0
BX GROUP1 : 04 TO 06
4 : 12h00 OFF
5 : 13h00 ISP1 C : 30.0
6 : 13h00 ON HEAT
BX GROUP1 : 07 TO 09
7 : 15h00 ISP1 C : 35.0
8 : 20h00 OFF
9 : 00h00 - -
