D–EIMAC01905-23_06EN - 27/65
The lifting mode is the same regardless of the number of fans.
Unit with 12 lifting points
The drawing shows only the 24 fans version.
The lifting mode is the same regardless of the number of fans.

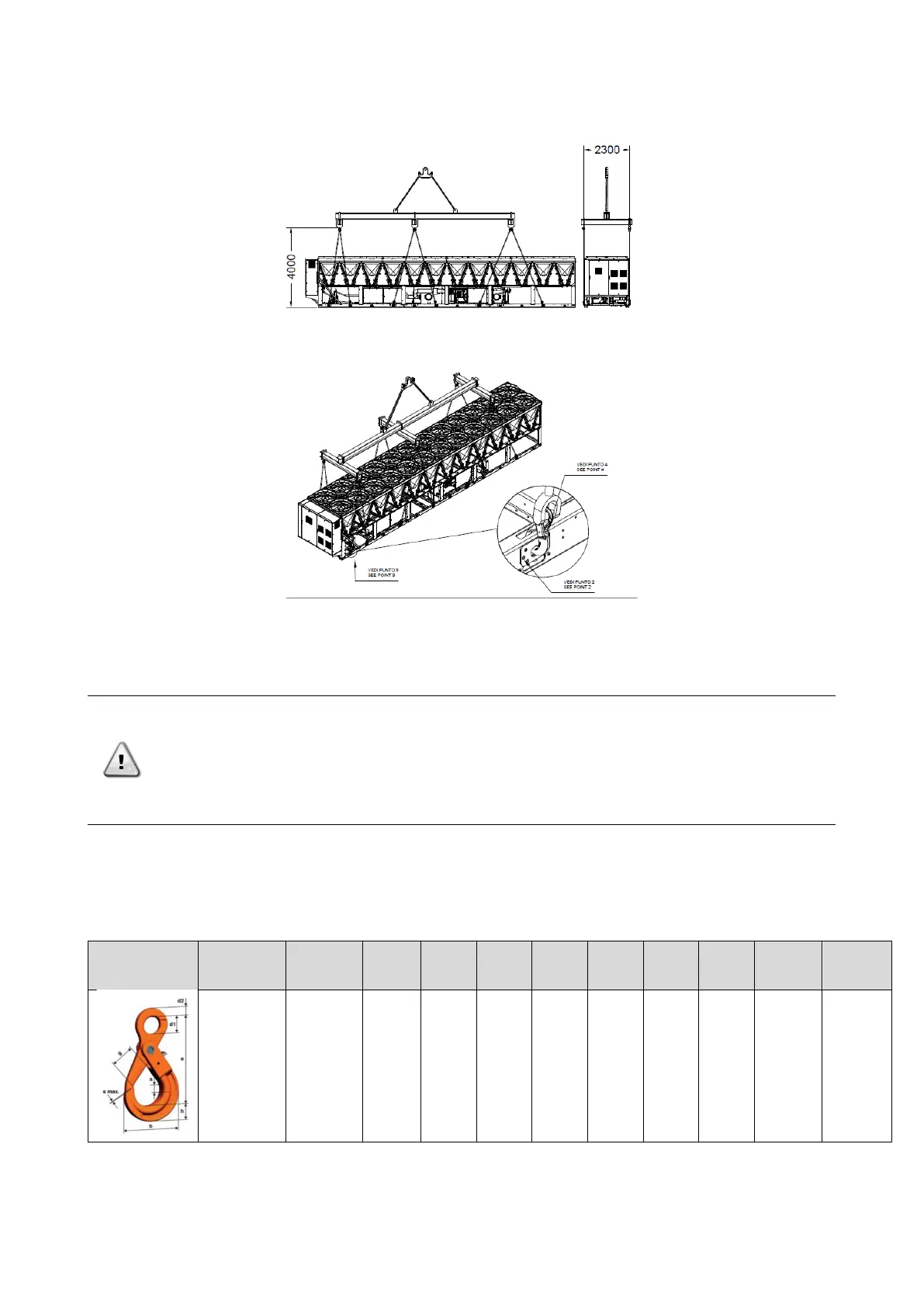

Fig. 19– Lifting instructions
Consult the dimensional drawing for the hydraulic and electrical connection of the units.
The overall dimensions of the machine, as well as the weights described in this manual, are purely
indicative. For some unit models, some components might be installed on an external skid linked to
the main base frame, resulting in an unit longer than the standard one. Always refer to the
dimensional drawing for the right value.
The contractual dimensional drawing and the related electrical scheme are delivered to the customer
when ordering.
It is forbidden to lift the unit below -20°C ambient temperature.
4.2.1 Safety hook
The characteristics of the hook to be used for lifting the units are as follows (a hook with the same or better characteristics
can also be used, the load capacity, in fact, can be greater, but the hook dimensions have to be the same as those shown
in the picture below).
LHW Safety
Hook
Model
Load
capacity
[kg]
e
[mm]
h
[mm]
a
[mm]
b
[mm]
d1
[mm]
d2
[mm]
g
[mm]
s max.
[mm]
weight
[kg/pc.]
LHW10
4,000
168
30
29
107
33
16
45
1
1,57
