6.6 LHS PANEL SPECIFICATIONS
LHS PANEL is an option on the standard VFD PANEL for all TZ-D / MZ-D machines, so as to meet TDDI<5%.
It is provided with an internal Shunt Active Filter that monitors the supply current including any distortion. From this signal
the control system reacts producing same current harmonics with opposite sign cancelling out distortions on current from
the grid.
The Series cover the ranges from 90kW to 800kW (electrical power) with single or double VFD.
Control and status of the VFD can be done via digital and analogue I/O, serial bus communication alone or a combination
of both. The serial connection using Modbus (RTU) via RS485 using VFD Nav (Software) gives access to more detailed
information about the VFD.
6.6.1 Product Identification
The VFD LHS is identified by its label, which contains the following information:
• Recognized company Trademark
• Type: Inverter Model
• Serial Number
• Application Software
• Production Date
• Nominal Ratings

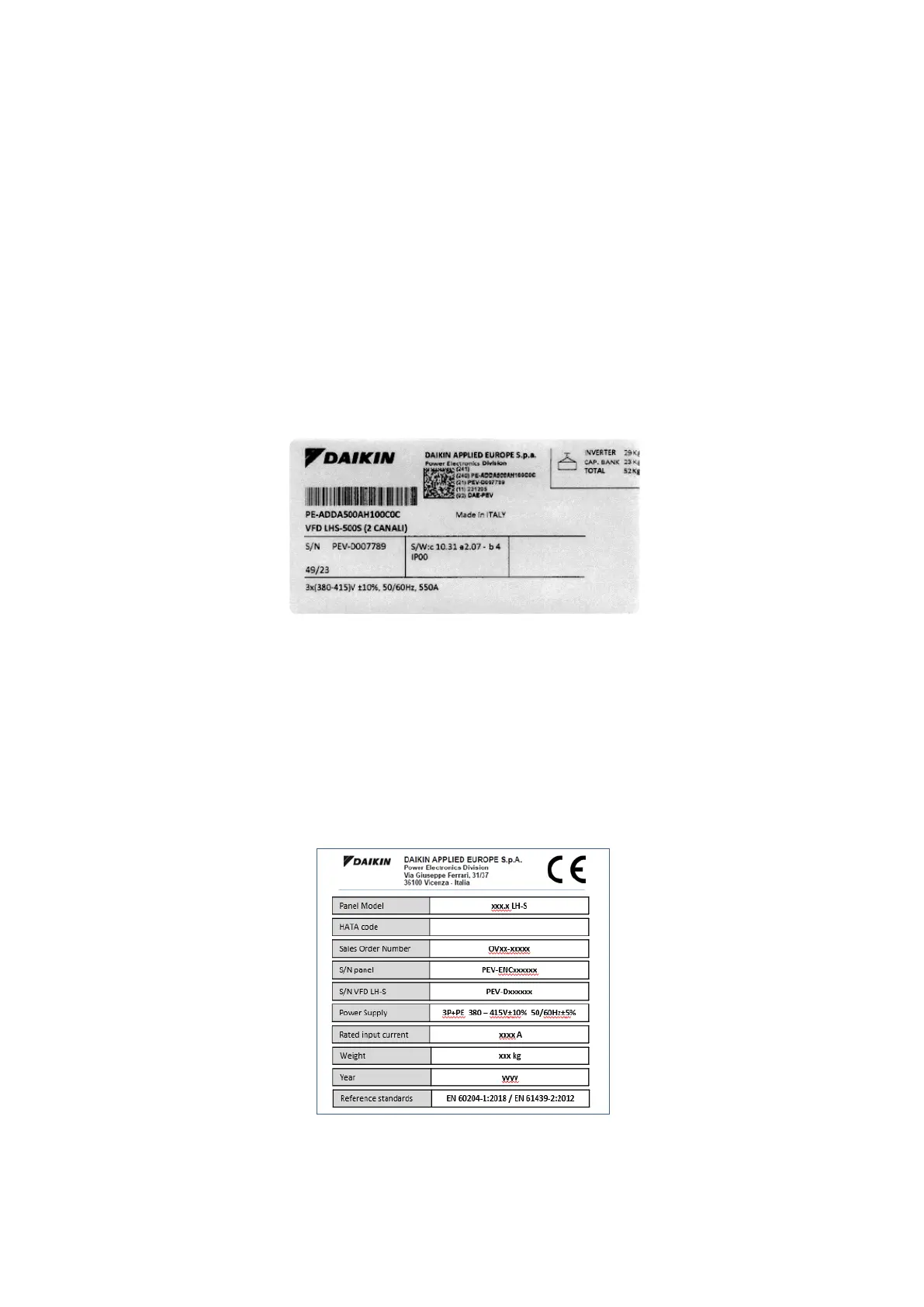

Fig. 29– VFD LHS Identification Label
The Electrical Panel is identified by its label too, which contains the following information:
• Recognized company Trademark
• Panel Model
• Hata Code
• Sales Order Number
• S/N panel
• S/N VFD LH-S
• Power Supply
• Rated input current
• Weight
• Year
• Reference standards
Fig. 30- Electrical Panel identification Label
