5.1.4 Free cooling external piping installation

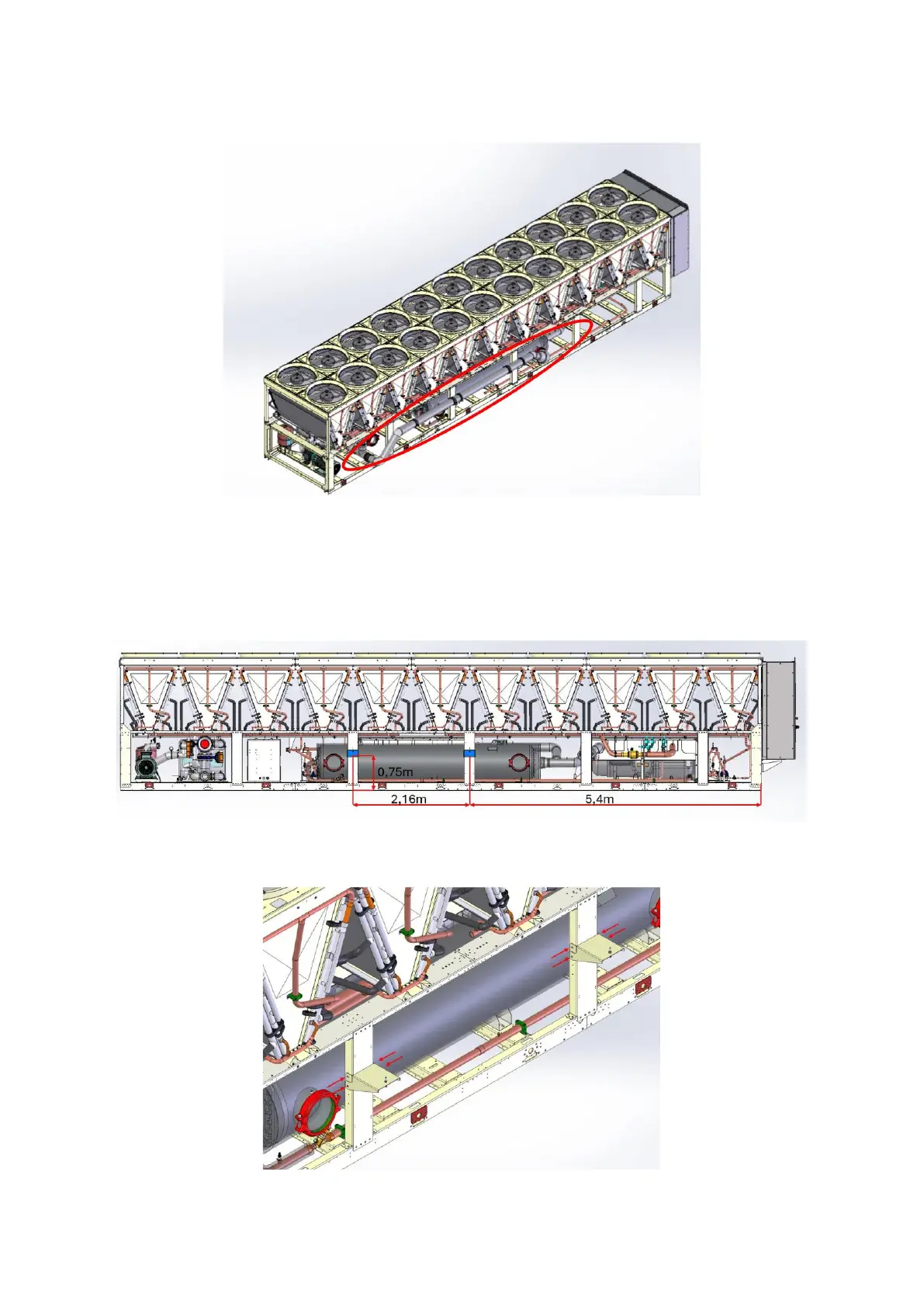

Following models have a pipework outside unit footprint (circled in red in the figure):
Tab. 17 – Unit models with external piping
The assembly is shipped in a dedicated box together with the unit and an instruction (xxx) for the assembly on site.
Accessories such as the supports are shipped loose and put on the unit itself. Following procedure has to be carried out
to install the external piping.
STEP 1: position two metal supports (blue in figure):
N.B. Quotes are the same for all units, regardless the number of fans.
STEP 2: fix the supports with rivets:
STEP 3: install pipe clamps (blue in figure):
