The series is composed by MONO (one circuit) and DUAL (two circuits) units.
Table 4– Units PS and TS
REFRIGERANT
PED/PER
GROUP
LINE
PS [bar]
TS [°C]
R134a
R1234ze
R513a
2
HIGH PRESSURE GAS
25.5
+10/+120°C
HIGH PRESSURE LIQ
25.5
-10/+80°C
LOW PRESSURE
15.5
-20°C(BRINE) -10°C (STD)/+80°C
WATER CIRCUITS
WATER IN/OUT
10
-15/+55°C

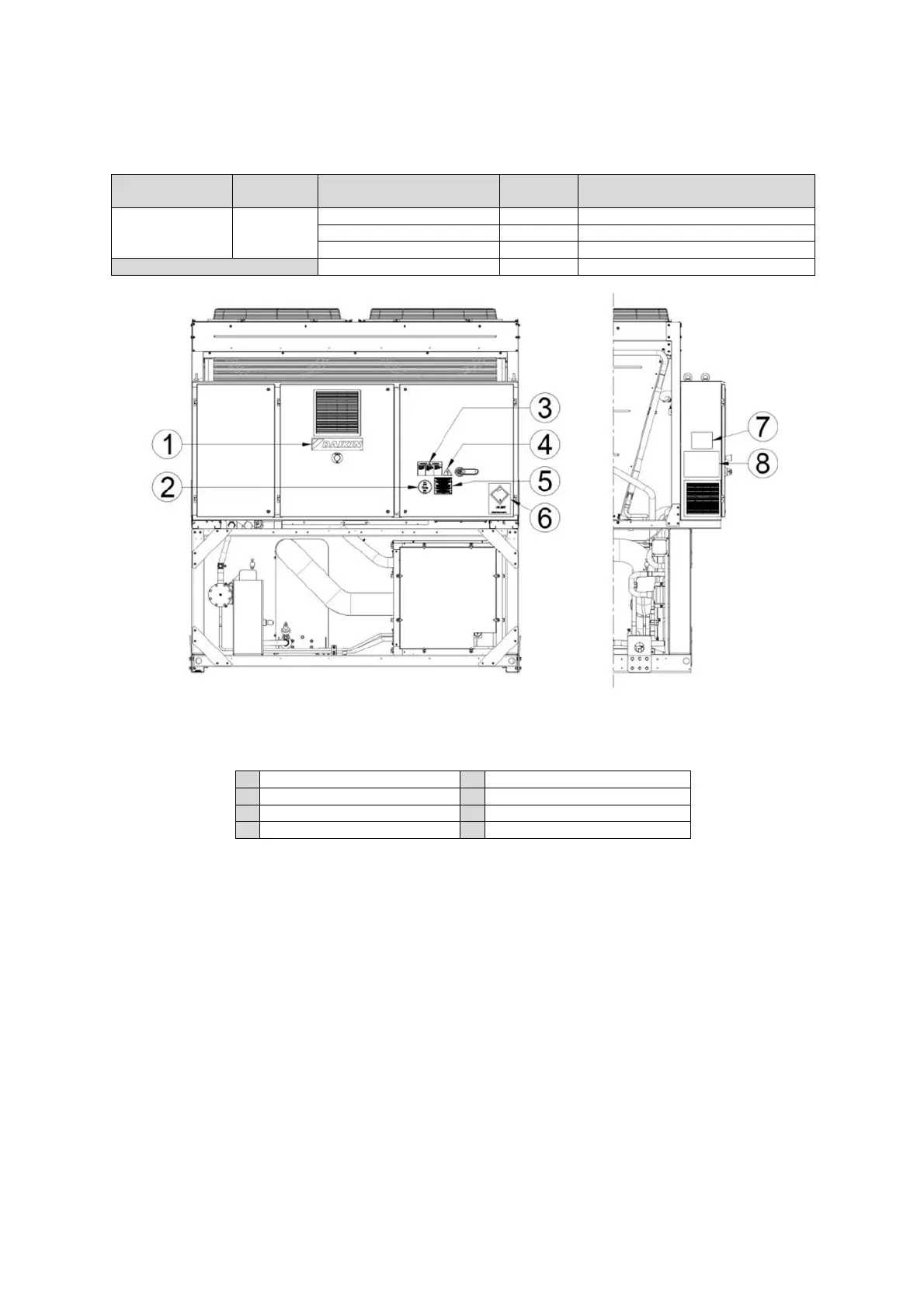

Fig. 4. - Description of the labels applied to the electrical panel
Table 5- Label Identification
1
– Manufacturer’s logo
5
– Cable tightening warning
2
– Gas type
6
– Transportation Label UN2857
3
– Hazardous Voltage warning
7
– Unit nameplate data
4
– Electrical hazard symbol
8
– Lifting instruction
