Figure 13 - External pressure head of High Lift Pump
External static pressure refers to unit equipped with hydronic kit, defined as difference between pump external static
pressure and evaporator and water filter pressure drop. Water flow range refer to pump only. For water flow limits of the
unit refer to water flow section.
Pump low lift
Model
Pump curve
EWAT/EWYT016CZP-A1
A
EWAT/EWYT021CZP-A1
B
EWAT/EWYT025CZP-A1
B
EWAT/EWYT032CZP-A1
C
EWAT/EWYT040CZP-A1
C
EWAT/EWYT040CZP-A2
D
EWAT/EWYT050CZP-A2
D
EWAT/EWYT064CZP-A2
E
EWAT/EWYT090CZP-A2
F
Pump high lift
Model
Pump curve
EWAT/EWYT016CZHA1
A
EWAT/EWYT021CZHA1
B
EWAT/EWYT025CZHA1
B
EWAT/EWYT032CZHA1
C
EWAT/EWYT040CZHA1
C
EWAT/EWYT040CZHA2
D
EWAT/EWYT050CZHA2
D
EWAT/EWYT064CZHA2
E
EWAT/EWYT090CZHA2
F
Table 6 - Pump curve associated with each unit size
4.11 Operation limits
Operation out of the mentioned limits may damage the unit. In case of any doubt contact the manufacturer
representative. In the following figure are illustrated the operation ranges both in cooling and heating mode, in terms of
Leaving water temperature (LWT) and Ambient temperature (OAT).

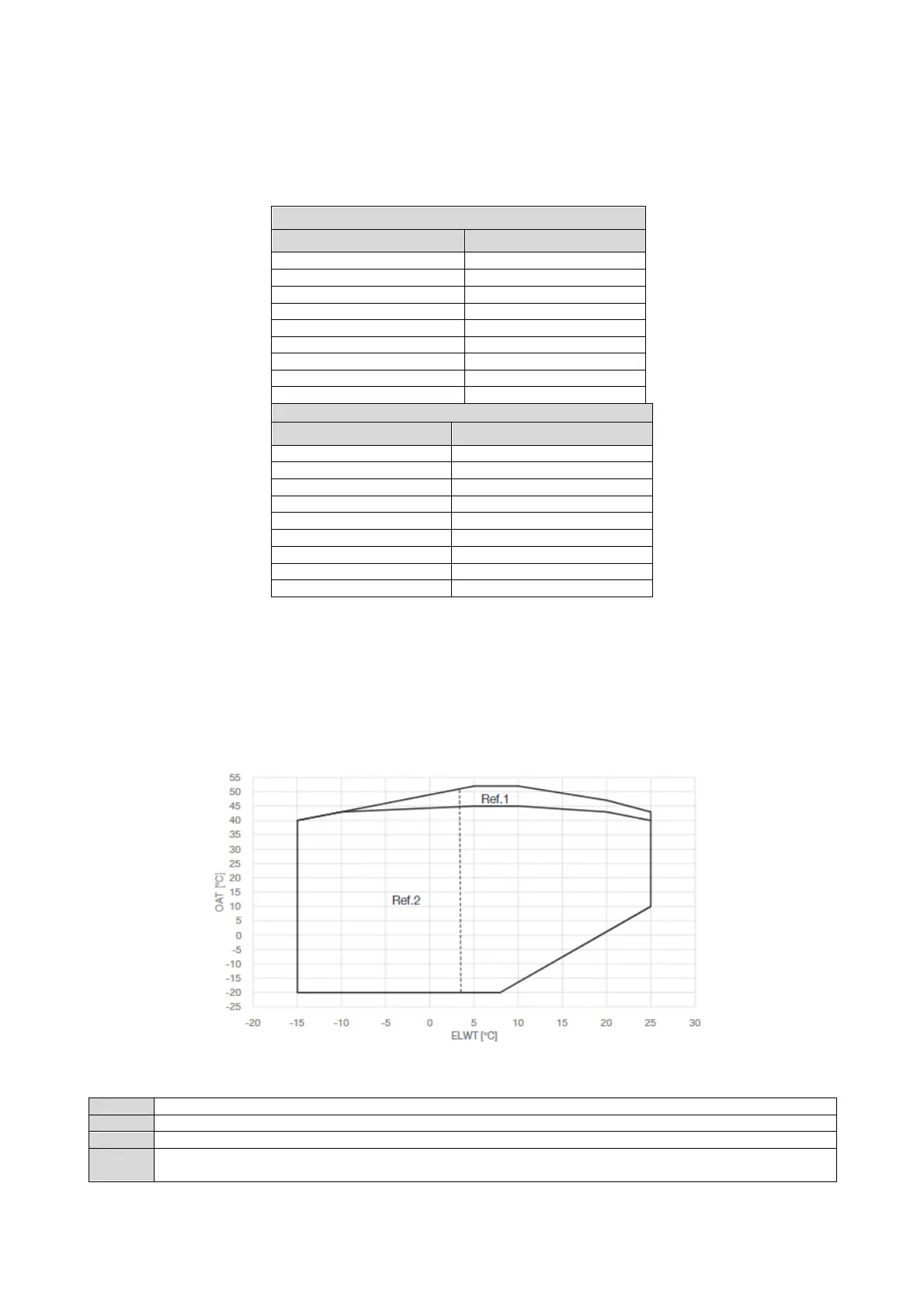

OPERATION RANGE COOLING – EWAT-CZ
Figure 14 – Operating limits on EWATCZ
OAT
Outside ambient temperature
ELWT
Evaporator Leaving water temperature
Ref. 1
Unit operations in this area require OP. 192 HIGH AMBIENT TEMPERATURE KIT.
Ref. 2
Unit operations in this area require the enabling of the Brine version in the controller and the use of the
proper amount of glycol.
