2. A compressor can stop only if since the last start-up or shut-down of any other compressor
the Stage Dn Delay has expired.
3. A compressor can start only if since its previous start-up the Start to Start Delay has
expired
4. A compressor can start only if since its previous stop the Stop to Start Delay has expired
The unit capacity remains constant if the controlled temperature is within the interval:
[ Setpoint - Stage Up DT ÷ Setpoint + Stage Down DT ]
The following table summarize the conditions for compressors start and shut down explained
above.
Cool Mode
Heat Mode
First Compressor Start
Controlled Temperature > Setpoint + Start Up DT
Controlled Temperature < Setpoint - Start Up DT
Other Compressor Start
Controlled Temperature > Setpoint + Stage Up DT
Controlled Temperature < Setpoint - Stage Up DT
Last Compressor Off
Controlled Temperature < Setpoint - Shut Dn DT
Controlled Temperature > Setpoint - Shut Dn DT
Other Compressor Off
Controlled Temperature < Setpoint - Stage Dn DT
Controlled Temperature > Setpoint - Stage Dn DT

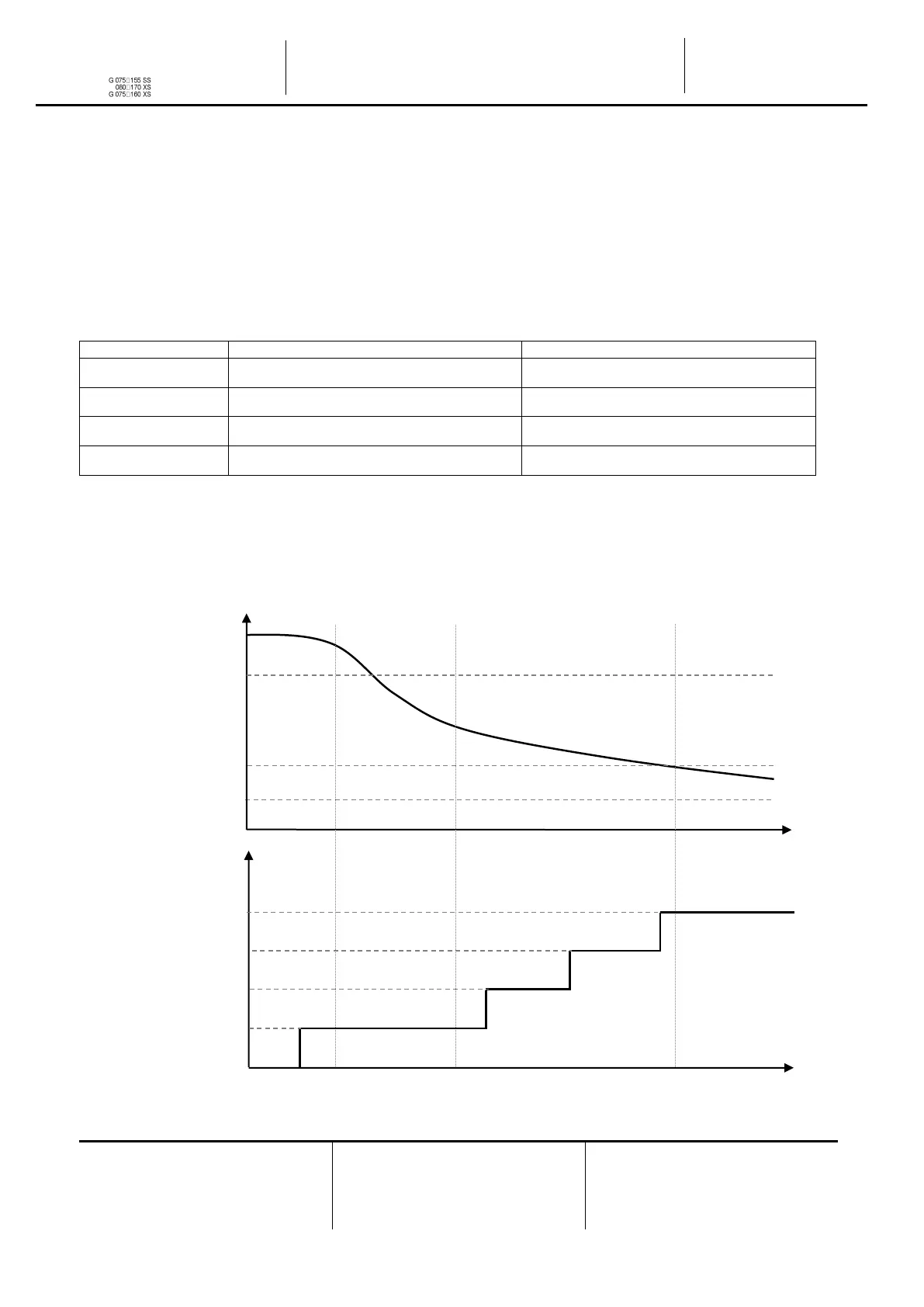

A qualitative example of compressors start-up sequence in cool mode operation is shown in the
graph below.
SP
SP+StageUpΔT
SP+StartUpΔT
ELWT [°C]
First
Compressor
On
Other Compressors On
Compressor starting
inhibited for maximum
pull down rate
Dead band
zone
# Compressors On
1
2
3
4
Compressors start-up sequence - Cool mode
Time
Time
