D-EOMAC01905-23_01EN- 11/78

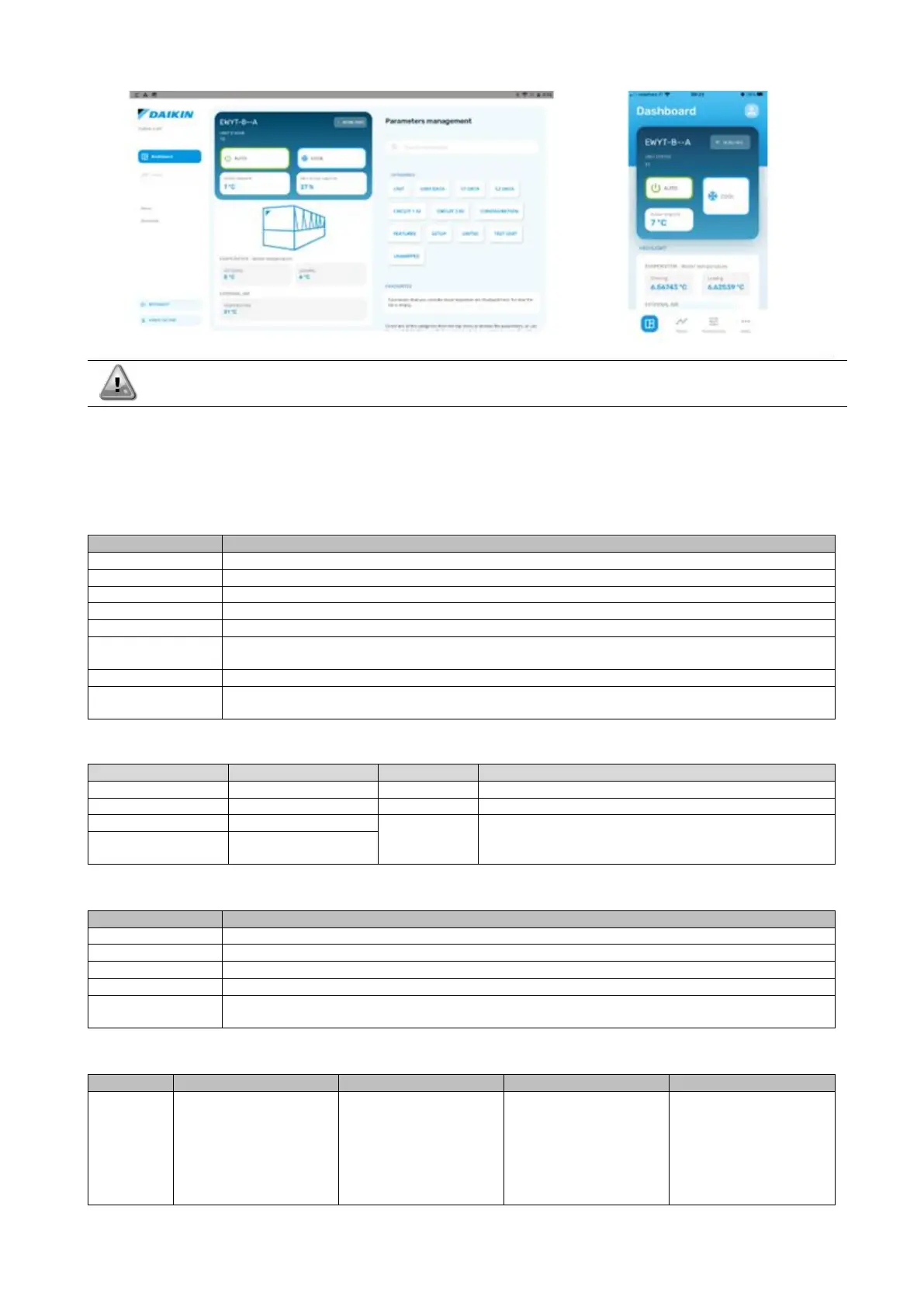

For further information consult the Quick Guide Daikin Map 1.0 - D-EPMAP00101-23_EN.
3.5 Basic Control System Diagnostic
Microtech controller, extension modules and communication modules are equipped with two status LED (BSP and BUS)
to indicate the operational status of the devices. The BUS LED indicates the status of the communication with the controller.
The meaning of the two status LED is indicated below.
Main Controller (UC)
BSP LED
Mode
Solid Green
Application running
Solid Yellow
Application loaded but not running (*) or BSP Upgrade mode active
Solid Red
Hardware Error (*)
Flashing Green
BSP startup phase. The controller needs time for starting.
Flashing Yellow
Application not loaded (*)
Flashing
Yellow/Red
Fail safe mode (in case that the BSP upgrade was interrupted)
Flashing Red
BSP Error (software error*)
Flashing
Red/Green
Application/BSP update or initialization
(*) Contact Service.
Extension modules
BSP LED
Mode
BUS LED
Mode
Solid Green
BSP running
Solid Green
Communication running, I/O working
Solid Red
Hardware Error (*)
Solid Red
Communication down (*)
Flashing Red
BSP Error (*)
Solid Yellow
Communication running but parameter from the
application wrong or missing, or incorrect factory
calibration
Flashing Red/Green
BSP upgrade mode
Communication modules
BSP LED (same for all modules)
BSP LED
Mode
Solid Green
BPS running, communication with controller
Solid Yellow
BSP running, no communication with controller (*)
Solid Red
Hardware Error (*)
Flashing Red
BSP Error (*)
Flashing
Red/Green
Application/BSP update
(*) Contact Service.
BUS LED
BUS LED
LON
Bacnet MSTP
Bacnet IP
Modbus
Solid
Green
Ready for
Communication. (All
Parameter loaded;
Neuron configured).
Doesn't indicate a
communication with
other devices.
Ready for
Communication. The
BACnet Server is
started. It doesn't
indicate an active
communication.
Ready for
Communication. The
BACnet Server is
started. It doesn't
indicate an active
communication.
All Communication
running
