BAS Integration Guide-BACnet protocol
Document name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H -
T/MZD
Product name:
EWAD/H-T/MZD & EWFD/H-
T/MZD
Page 8 / 53
Software name:
ETRA / OMEGA

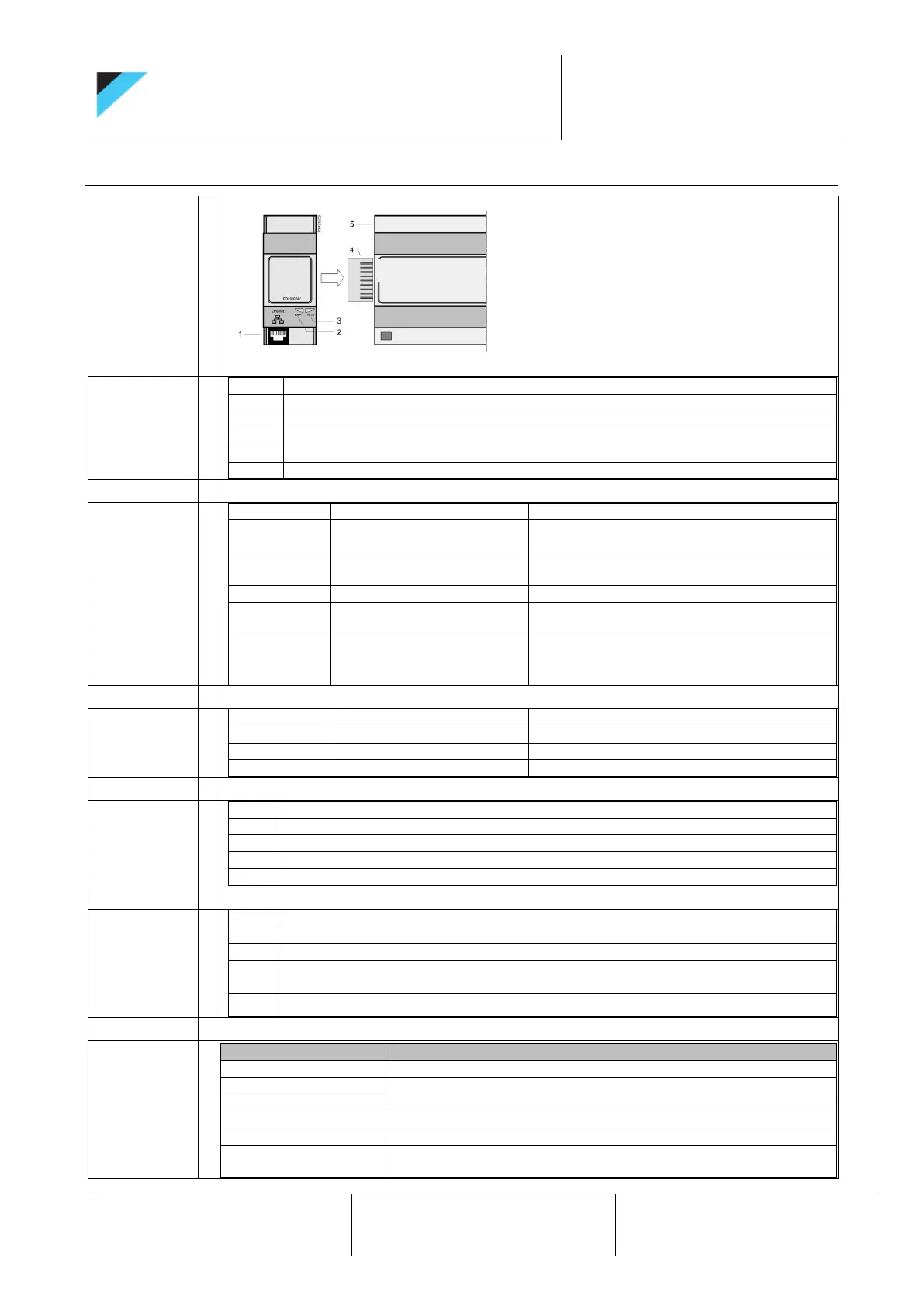

4.2 BACnet IP module (POL908)
Module
description
Part
Description
1
Ethernet interface 10/100 Mbit (IEEE 802.3U), RJ45 plug, 8-pin.
2
Status display “BSP” (Board Support Package).
3
Status display “BUS” (bus connections / bus traffic o.k.).
4
Plug connection “Communication extension bus”.
5
Microtech controller.
BSP Led
Color
Flashing frequency
Meaning
Green
Steady on
BSP operating and communication with
controller working.
Yellow
Steady on
BSP operating, but no communication with
controller.
Red
Steady on
Hardware fault.
Red/Yellow
Flashing at 1 Hz
(1 second on/ 1 second off)
Upgrade mode running.
Red
Flashing at 2 Hz
(0,5 second on/ 0,5 second
off)
BSP error (software error).
BUS Led
Color
Flashing frequency
Meaning
Green
Steady on
Communication active.
Yellow
Steady on
Initializing
Red
Steady on
Communication interrupted.
Module
connection
Step
Action
1
Power off the controller
2
Connect POL908 module to the controller via plug connection (part 4).
3
Connect the TCP/IP bus cable to the POL908.
4
Power on the controller
Configuration
Step
Action
1
Check that BUS led status is steady on green coloured.
2
Navigate the unit’s keypad/display to the main menu page and set the “service” password
3
Navigate the unit’s keypad/display following the path below:
Main menu→Commissioning→BACNetIP Setup
4
Set parameters in the table below as needed according to the local network
Parameter
Default value
Device Instance
1
UDP Port Number
47808 (BAC0)
DHCP
(1)
OFF
Given IP Address
2
127.0.0.1
Given IP Subnet Mask
2
255.255.255.000
Given Gateway
Address
2
127.0.0.1
