BAS Integration Guide-BACnet protocol
Document name:
D-EIGOC00103-
23_01EN_EWAD/H_EWFD/H -
T/MZD
Product name:
EWAD/H-T/MZD & EWFD/H-
T/MZD
Page 46 / 53
Software name:
ETRA / OMEGA

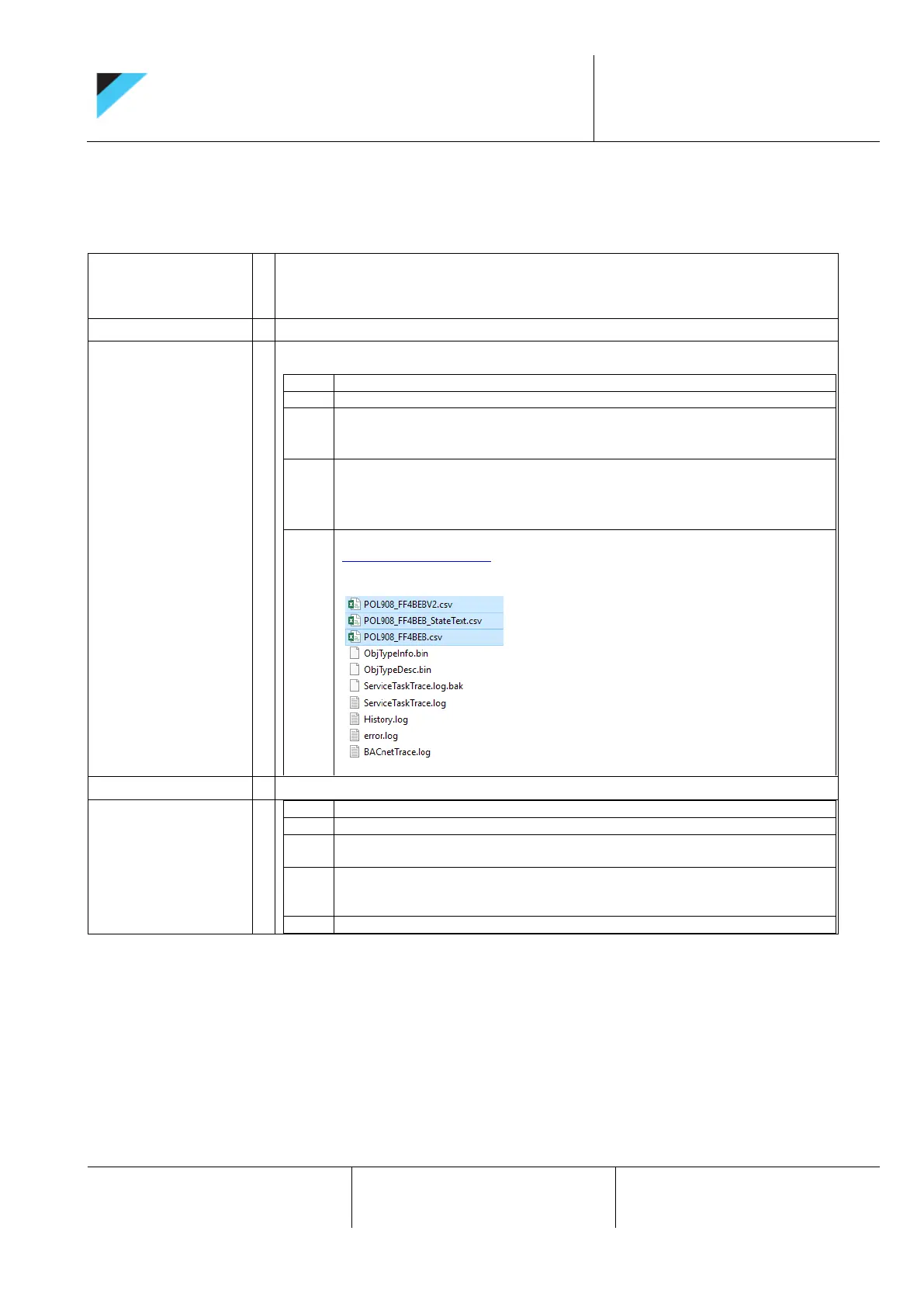

6. Annex 2 – EDE files for BACnet
Premise
The EDE files are created by the BACnet server each time the server is started.
Download and import new files if s any change in controller configuration is done. Some
BACnet objects could be no more available or new objects could be added. Also change
in BACnet settings affect the new EDE file.
EDE file from
BACnet IP module
(POL908.00)
EDE files from POL908 module can be exported via ftp as it follows:
Step
Action
1
Connect POL908 module to the controller via plug connection.
2
Connect to the POL908 TCP/IP port the bus cable from:
• a LAN if DHCP of the module is set to ON
• a PC with static IP address if DHCP of the module is set to OFF
3
Set proper IP address and Subnet mask of the module and apply changes. i.e.
IP
192.168.1.45
Subnet mask
255.255.255.0
4
Open a resource explorer instance and type the module IP address. i.e.
ftp://192.168.1.45/Temp. In the folder “Temp” the EDE files in .csv format are
available:
EDE file
from both modules:
BACnet MS/TP
(POL904.00)
BACnet IP
(POL908.00)
Step
Action
1
Connect POL904/908 module to the controller via plug connection.
2
Connect PC to POL904 by mean of a RS485-USB converter or to POL908 by
mean of ethernet cable.
3
A BACnet explorer tool is needed in order to access the module and export the
EDE files
from it. Freeware tools are available on the internet, i.e. YABE
4
From YABE the EDE export option is available in functions menu.
