3 | About the system
User reference guide
10
ETSH/X(B)16P30+50E
Daikin Altherma 3 H HT ECH₂O
4P679470-1A – 2022.09
3 About the system
Depending on the system layout, the system can:
▪ Heat up a space
▪ Cool down a space
▪ Produce domestic hot water
INFORMATION
Cooling is only applicable in case of reversible models.
INFORMATION
If underfloor heating is installed in the main zone, then in cooling mode the main
zone can only provide refreshment. Real cooling is then NOT allowed.

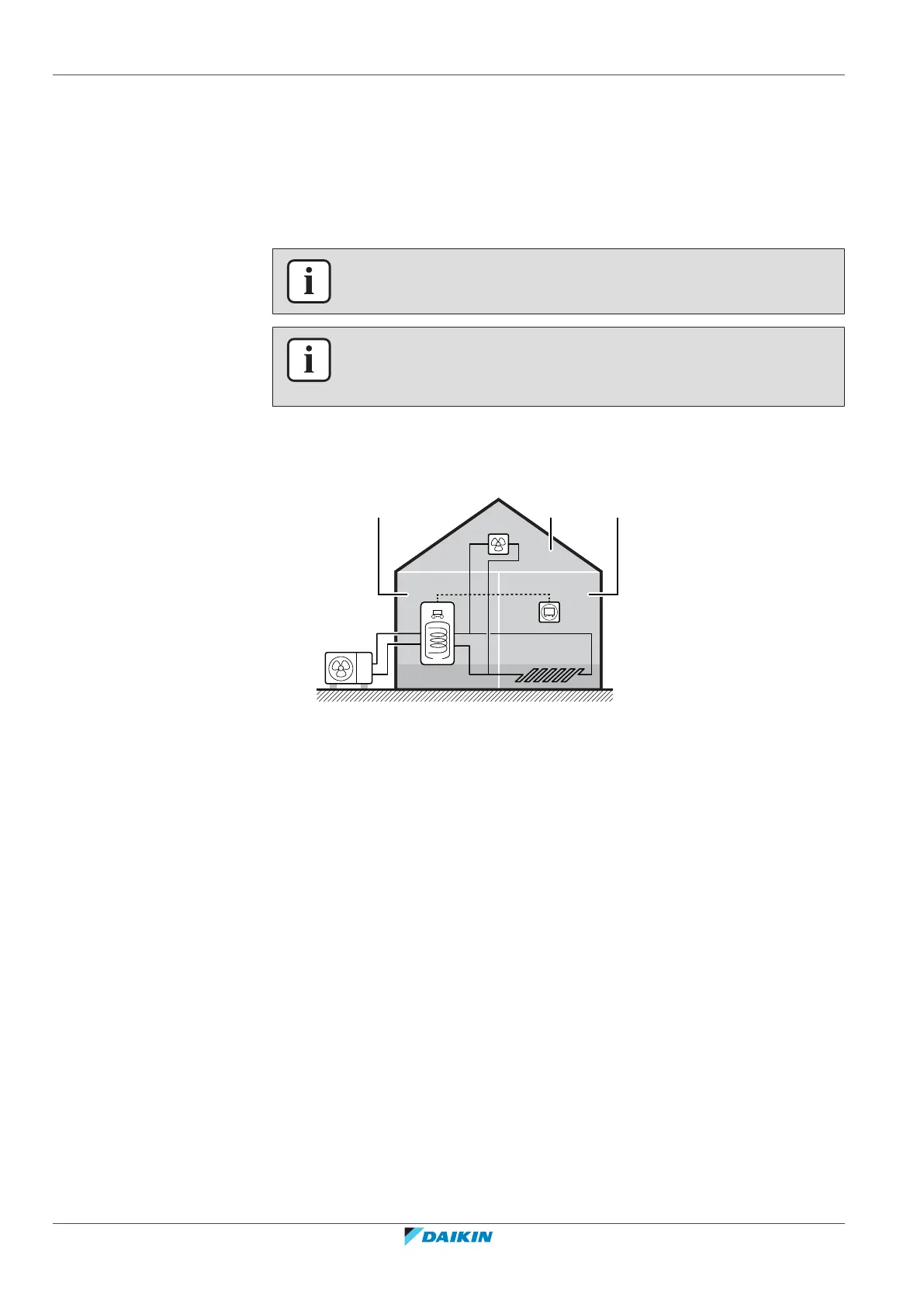

3.1 Components in a typical system layout
g
A
db
a
f
e
c
BC
A Main zone. Example: Living room.
B Additional zone. Example: Bedroom.
C Technical room. Example: Garage.
a Outdoor unit heatpump
b Indoor unit heatpump
c Energy storage tank
d User interface of the indoor unit
e Dedicated Human Comfort Interface (BRC1HHDA used as room thermostat)
f Underfloor heating
g Radiators, heatpump convectors, or fancoil units
