8 | Electrical installation
Installer reference guide
97
EPRA14~18DAV3+W1 + ETBH/X16DA6V+9W
Daikin Altherma 3 H HT W
4P587501-1A – 2020.01
L N PE
1 2

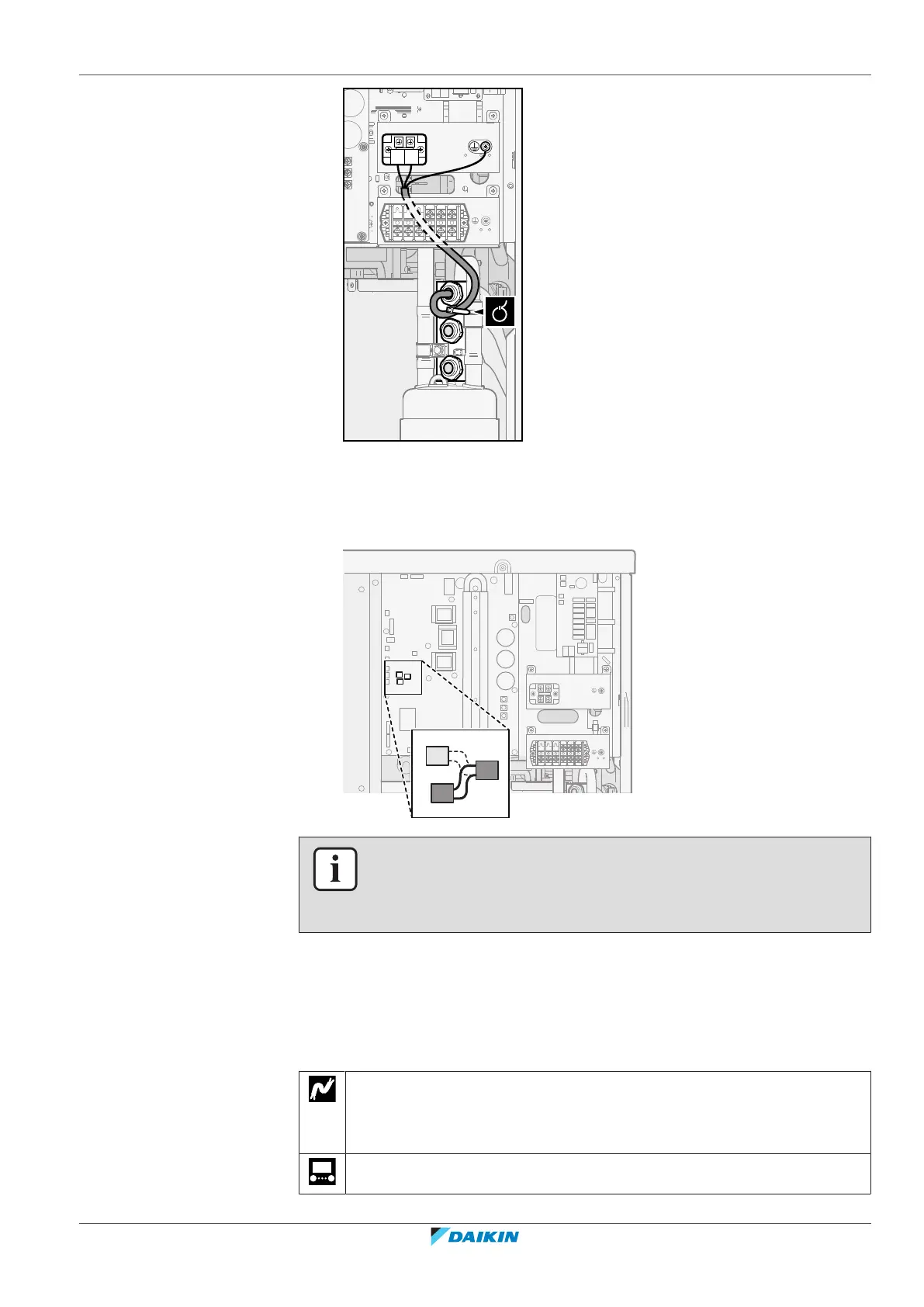

4 (Optional) Power saving function: If you want to use the power saving
function:
▪ Disconnect X804A from X805A.
▪ Connect X804A to X806A.
X806A
X804A
X805A
INFORMATION
Power saving function. The power saving function is only applicable for V3 models.
For more information about the power saving function ([9.F] or overview field setting
[E‑08]), see "Power saving function"[4197].
In case of W1 models
1 Power supply cable:
▪ Use the factory-mounted cable, which is already routed through the frame.
▪ Connect the wires to the terminal block.
▪ Fix the cable with a cable tie.
Use the factory-mounted cable.
Wires: 3N+GND
Maximum running current: Refer to name plate on unit.
—
