7 | Piping installation
Installer reference guide
78
EPRA14~18DAV3+W1 + ETBH/X16DA6V+9W
Daikin Altherma 3 H HT W
4P587501-1A – 2020.01
▪ Piping length. It is recommended to avoid long runs of piping between the
domestic hot water tank and the hot water end point (shower, bath,…) and to
avoid dead ends.
▪ Piping diameter. Select the water piping diameter in relation to the required
water flow and the available external static pressure of the pump. See
"15Technical data"[4236] for the external static pressure curves of the indoor
unit.
▪ Water flow. You can find the minimum required water flow for indoor unit
operation in the following table. In all cases, this flow needs to be guaranteed.
When the flow is lower, the indoor unit will stop operation and display error 7H.
Minimum required flow rate
25l/min
▪ Field supply components – Water. Only use materials that are compatible with
water used in the system and with the materials used in the indoor unit.
▪ Field supply components – Water pressure and temperature. Check that all
components in the field piping can withstand the water pressure and water
temperature.
▪ Water pressure. The maximum water pressure is 4 bar. Provide adequate
safeguards in the water circuit to ensure that the maximum pressure is NOT
exceeded.
▪ Water temperature. All installed piping and piping accessories (valve,
connections,…) MUST withstand the following temperatures:
INFORMATION

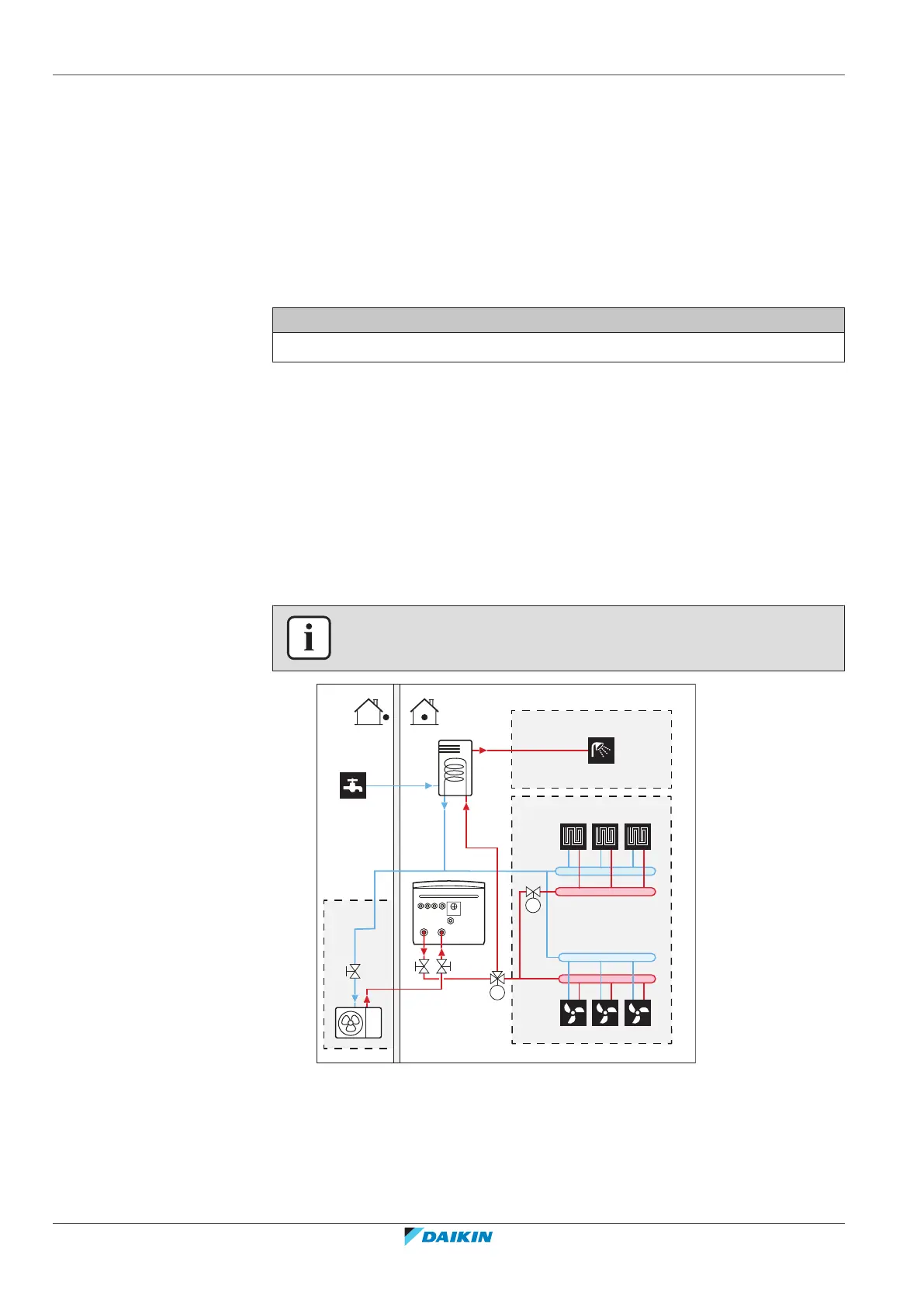

The following illustration is an example and might NOT match your system layout.
75°C
89°C
65°C
M
M
▪ Drainage – Low points. Provide drain taps at all low points of the system in order
to allow complete drainage of the water circuit.
▪ Drainage – Pressure relief valve. Connect the drain hose properly to the drain to
avoid water dripping out of the unit. See "6.4.4To connect the drain hose to the
drain"[476].
