4 | About the units and options

Installer reference guide

22

EPRA14~18DAV3+W1 + ETBH/X16DA6V+9W

Daikin Altherma 3 H HT W

4P587501-1A – 2020.01

4 About the units and options

In this chapter

4.1 Overview: About the units and options ................................................................................................................................. 22

4.2 Identification........................................................................................................................................................................... 22

4.2.1 Identification label: Outdoor unit .......................................................................................................................... 22

4.2.2 Identification label: Indoor unit ............................................................................................................................. 23

4.3 Combining units and options.................................................................................................................................................. 23

4.3.1 Possible combinations of indoor unit and outdoor unit ....................................................................................... 23

4.3.2 Possible combinations of indoor unit and domestic hot water tank.................................................................... 23

4.3.3 Possible options for the outdoor unit.................................................................................................................... 24

4.3.4 Possible options for the indoor unit ...................................................................................................................... 24

4.1 Overview: About the units and options

This chapter contains information about:

▪ Identifying the outdoor unit

▪ Identifying the indoor unit

▪ Combining the outdoor unit with options

▪ Combining the indoor unit with options

4.2 Identification

NOTICE

When installing or servicing several units at the same time, make sure NOT to switch

the service panels between different models.

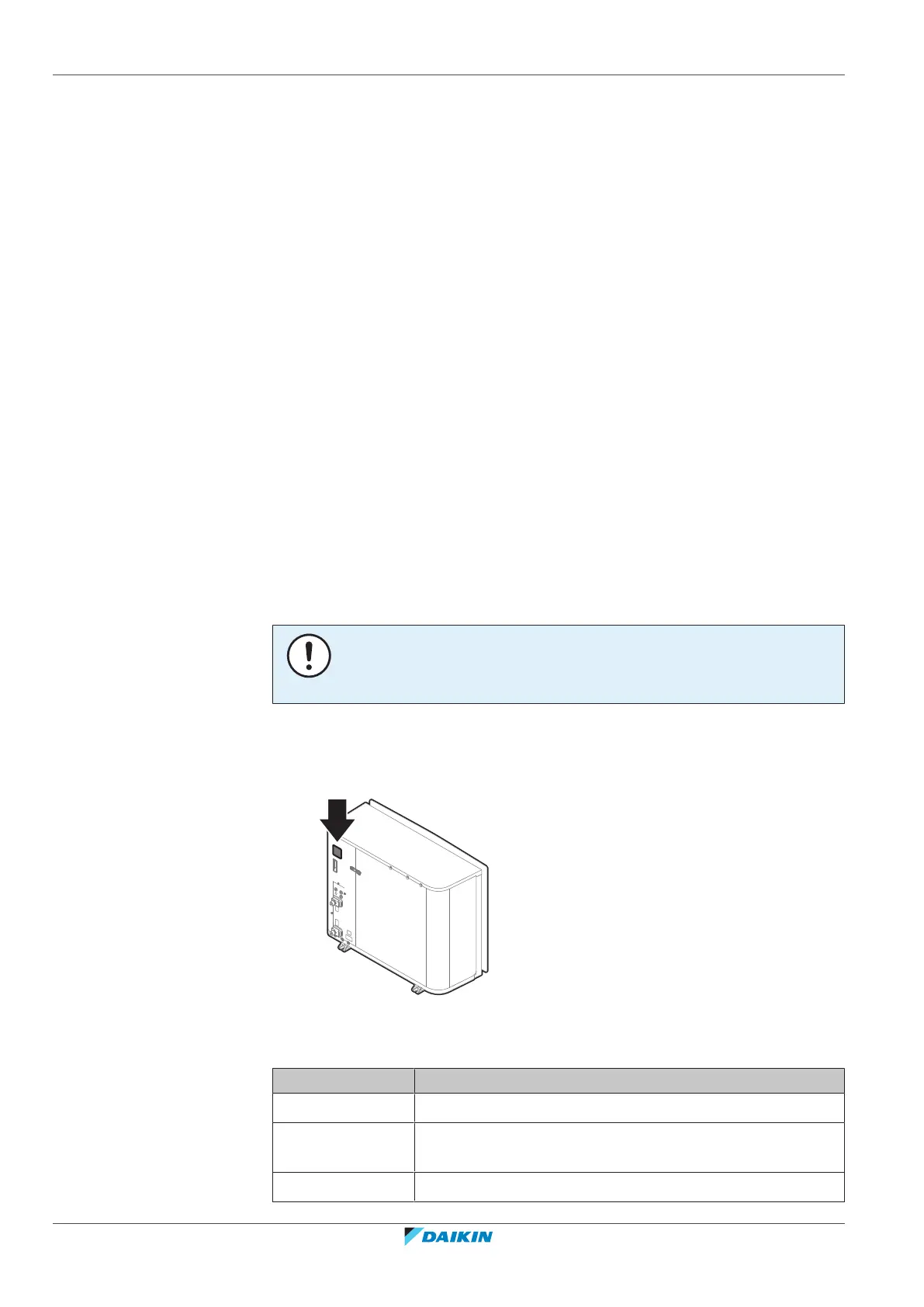

4.2.1 Identification label: Outdoor unit

Location

Model identification

Example: EPRA14DAV3

Code Explanation

EP European hydro-split outdoor pair heat pump

R High water temperature – ambient zone 2 (see operation

range)

A Refrigerant R32
