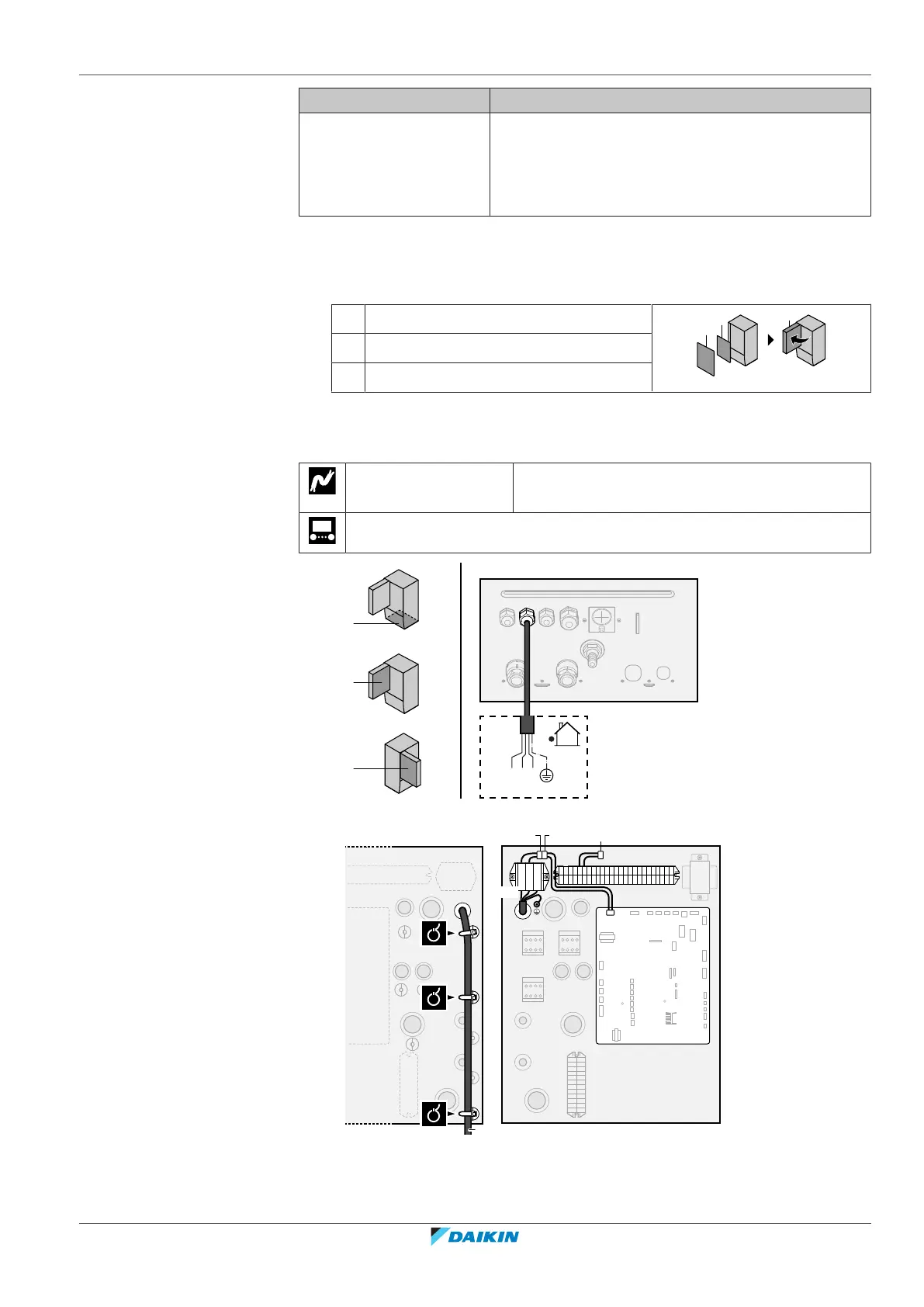

8 | Electrical installation
Installer reference guide
105
EPRA14~18DAV3+W1 + ETBH/X16DA6V+9W
Daikin Altherma 3 H HT W
4P587501-1A – 2020.01
Item Requirement
Power consumption
control settings
On the user interface, make sure to set:
▪ [9.9.1]=1 (Power consumption control =
Continuous)
▪ [9.9.2]=1 (Type = kW)
8.3.1 To connect the main power supply
1 Open the following (see "6.2.5To open the indoor unit"[465]):
1 Front panel
1
2
3
2 Switch box cover
3 Switch box
2 Connect the main power supply.
In case of normal kWh rate power supply
Interconnection cable
(=main power supply)
Wires: (3+GND)×1.5mm²
—
B
C
A
A
a
1 2 3
a Interconnection cable (=main power supply)
CB
1 2 3
X11YA X11YB
X11Y
X1A
A1P
X2M
X1M
X2M
A1P
a
X1M
a Interconnection cable (=main power supply)
