If a leak is detected
1 Recover the refrigerant, repair the joint, and repeat the test.
2 Perform the leak tests see "15.3.2To perform a leak test"[429].
3 Charge refrigerant.
4 Check for refrigerant leaks after charging (see above).

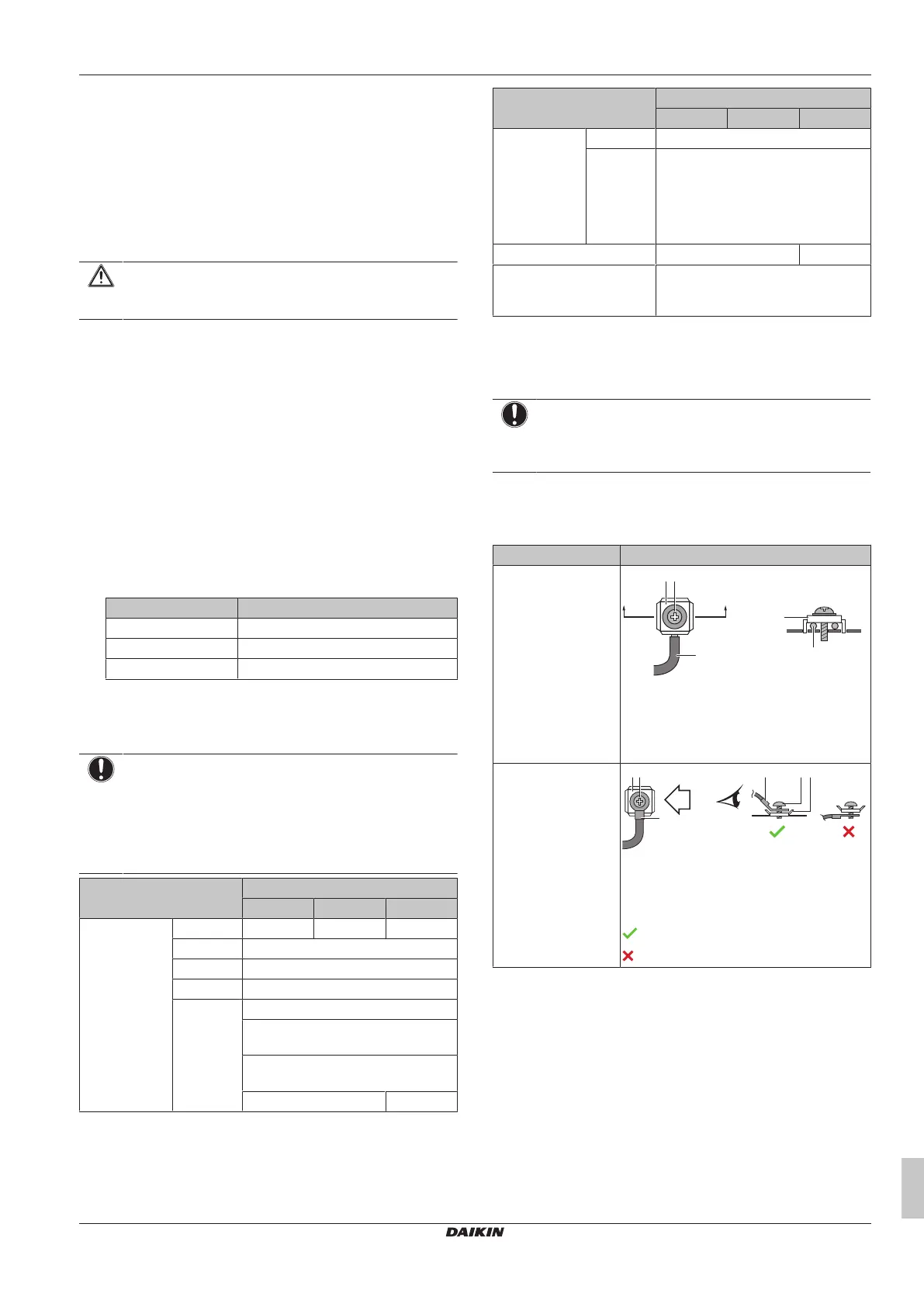

17 Electrical installation
CAUTION
See "2 Specific installer safety instructions" [4 5] to make
sure this installation complies with all safety regulations.
17.1 About electrical compliance
This equipment complies with:
▪ EN/IEC 61000‑3‑12 provided that the short-circuit power S
sc
is
greater than or equal to the minimum S
sc
value at the interface
point between the user's supply and the public system.
▪ EN/IEC 61000‑3‑12 = European/International Technical
Standard setting the limits for harmonic currents produced by
equipment connected to public low-voltage systems with input
current >16A and ≤75A per phase.
▪ It is the responsibility of the installer or user of the equipment to
ensure, by consultation with the distribution network operator if
necessary, that the equipment is connected ONLY to a supply
with a short-circuit power S
sc
greater than or equal to the
minimum S
sc
value.
Model Minimum S
sc
value
ERA200 2685kVA
ERA250 3137kVA
ERA300 3422kVA
17.2 Specifications of standard wiring
components
NOTICE
We recommend using solid (single-core) wires. If stranded
wires are used, slightly twist the strands to consolidate the
end of the conductor for either direct use in the terminal
clamp or insertion in a round crimp-style terminal. Details
are described in "Guidelines when connecting the electrical
wiring" in the installer reference guide.
Component Outdoor unit
ERA200 ERA250 ERA300
Power supply
cable
MCA
(a)
18.5A 22A 24A
Voltage 380-415 / 400V
Phase 3N~
Frequency 50/60Hz
Wire size 5 core cable
Must comply with national wiring
regulation.
Wire size based on the current, but
not less than:
2.5mm² 4mm²
Component Outdoor unit
ERA200 ERA250 ERA300
Interconnection
cable
Voltage 220-240V
Wire size Only use harmonised wire providing
double insulation and suitable for
applicable voltage.
2-core shielded cable
0.75-1.5mm²
Recommended field fuse 25A 32A
Earth leakage circuit
breaker/ residual current
circuit breaker
Must comply with national wiring
regulation.
(a)
MCA=Minimum circuit ampacity. Stated values are maximum
values.
Please use the table above to specify the requirements for the power
supply wiring.
NOTICE
When using residual current operated circuit breakers, be
sure to use a high-speed type 300 mA rated residual
operating current.
17.3 Connecting the electrical wiring
Use the following methods for installing wires:
Wire type Installation method
Single-core wire
Or
Stranded conductor
wire twisted to "solid-
like" connection
c b
c
aa
A
AA´
A´
a Curled wire (single-core or twisted
stranded conductor wire)
b Screw
c Flat washer
Stranded conductor
wire with round crimp-
style terminal
c b ba c
a
B
B
a Terminal
b Screw
c Flat washer
Allowed
NOT allowed
For earth connections, use the following method:
