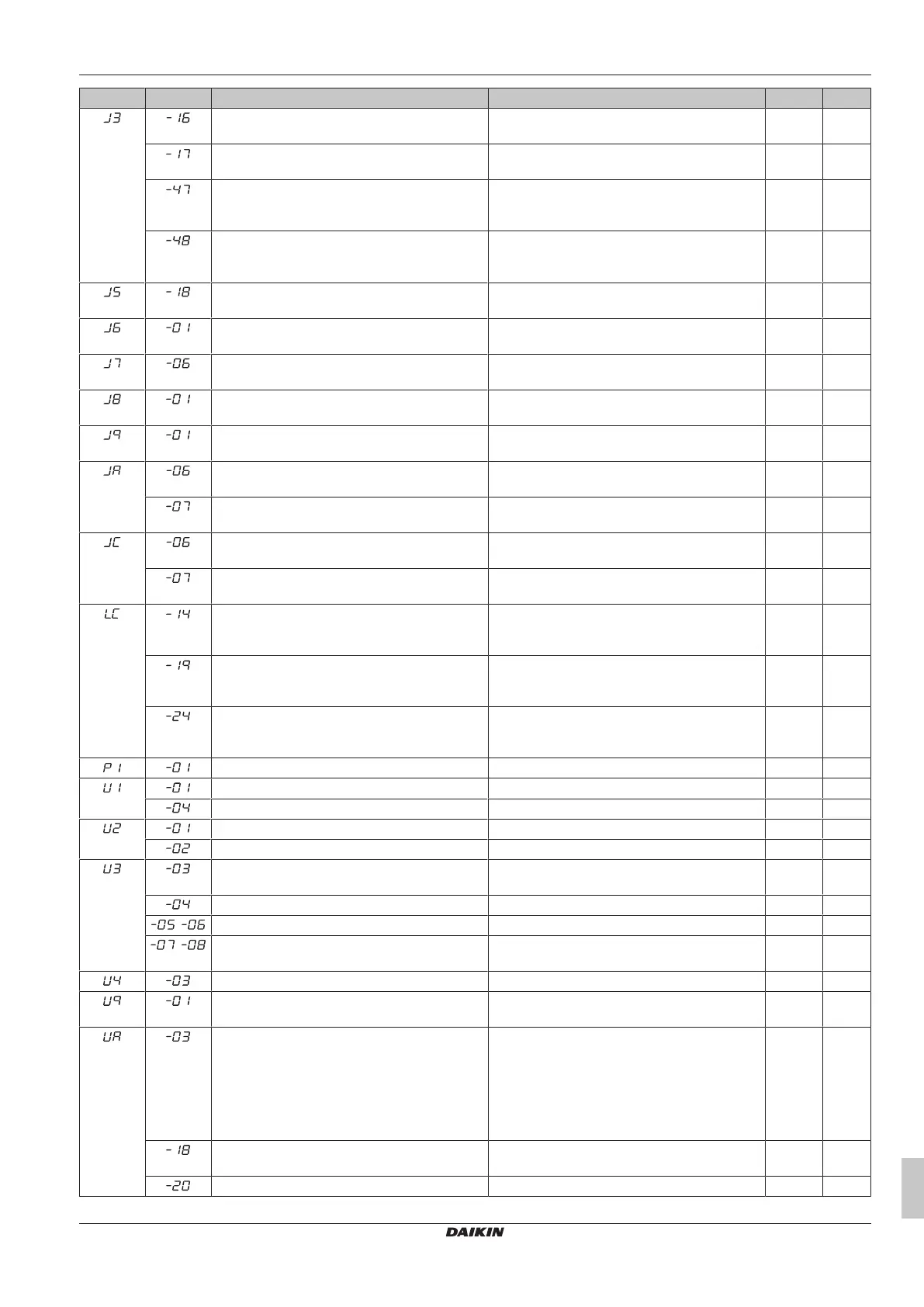

22 Troubleshooting
Installation and operation manual
43
ERA200~300AMYFB
Inverter outdoor unit for AHU option kit and air curtains
4P780153-1 – 2024.07
Main code Sub code Cause Solution SVEO
(a)
SVS
(b)
Discharge temperature sensor malfunction
(R21T): open circuit – main PCB (X33A)
Check connection on PCB or actuator.
Discharge temperature sensor malfunction
(R21T): short circuit - main PCB (X33A)
Check connection on PCB or actuator.
Compressor casing temperature sensor
malfunction (R8T): open circuit - main PCB
(X33A)
Check connection on PCB or actuator.
Compressor casing temperature sensor
malfunction (R8T): short circuit - main PCB
(X33A)
Check connection on PCB or actuator.
Suction temperature sensor (R3T) – main PCB
(X30A)
Check connections on PCB or actuator.
Heat exchanger deicer temperature sensor (R7T)
– main PCB (X30A)
Check connection on PCB or actuator
Subcool heat exchanger – liquid - temperature
sensor (R5T) - main PCB (X30A)
Check connection on PCB or actuator.
Heat exchanger – liquid -temperature sensor
(R4T ) - main PCB (X30A)
Check connection on PCB or actuator.
Subcool heat exchanger – gas - temperature
sensor (R6T) – main PCB (X30A)
Check connection on PCB or actuator.
High pressure sensor malfunction (S1NPH):
open circuit - main PCB (X32A)
Check connection on PCB or actuator.
High pressure sensor malfunction (S1NPH):
short circuit - main PCB (X32A)
Check connection on PCB or actuator.
Low pressure sensor malfunction (S1NPL): open
circuit - main PCB (X31A)
Check connection on PCB or actuator.
Low pressure sensor malfunction (S1NPL): short
circuit - main PCB (X31A)
Check connection on PCB or actuator.
Transmission outdoor unit - inverter: INV1
transmission trouble - main PCB (X20A, X28A,
X40A)
Check connection.
Transmission outdoor unit - inverter: FAN1
transmission trouble - main PCB (X20A, X28A,
X40A)
Check connection.
Transmission outdoor unit - inverter: FAN2
transmission trouble - main PCB (X20A, X28A,
X40A)
Check connection.
INV1 unbalanced power supply voltage Check if power supply is within range.
Reversed power supply phase malfunction Correct phase order.
Reversed power supply phase malfunction Correct phase order.
INV1 voltage power shortage Check if power supply is within range.
INV1 power phase loss Check if power supply is within range.
Malfunction code: system test run not yet
executed (system operation not possible)
Execute system test run.
An error occurred during the test run Re-execute the test run.
, Test run aborted Re-execute the test run.
, Test run aborted due to communication issues Check the communication wires and re-execute
the test run.
Indoor unit communication error Check user interface connection.
Warning because there is an error on another
indoor unit
Check if other indoor units have a malfunction
and confirm if indoor unit mix is allowed.
Connection malfunction over indoor units or type
mismatch
Check the type of indoor unit that is currently
connected. Make sure that a correct indoor unit
(only one EKEA or one compatible air curtain) is
connected. If an incorrect type of indoor unit is
connected, replace it with the correct one. After
the correct indoor unit is connected long-press
BS3 to complete the identification of indoor unit.
Connection malfunction over indoor units or type
mismatch
Check if other indoor units have a malfunction
and confirm if indoor unit mix is allowed.
Wrong outdoor unit connected Disconnect the outdoor unit.
