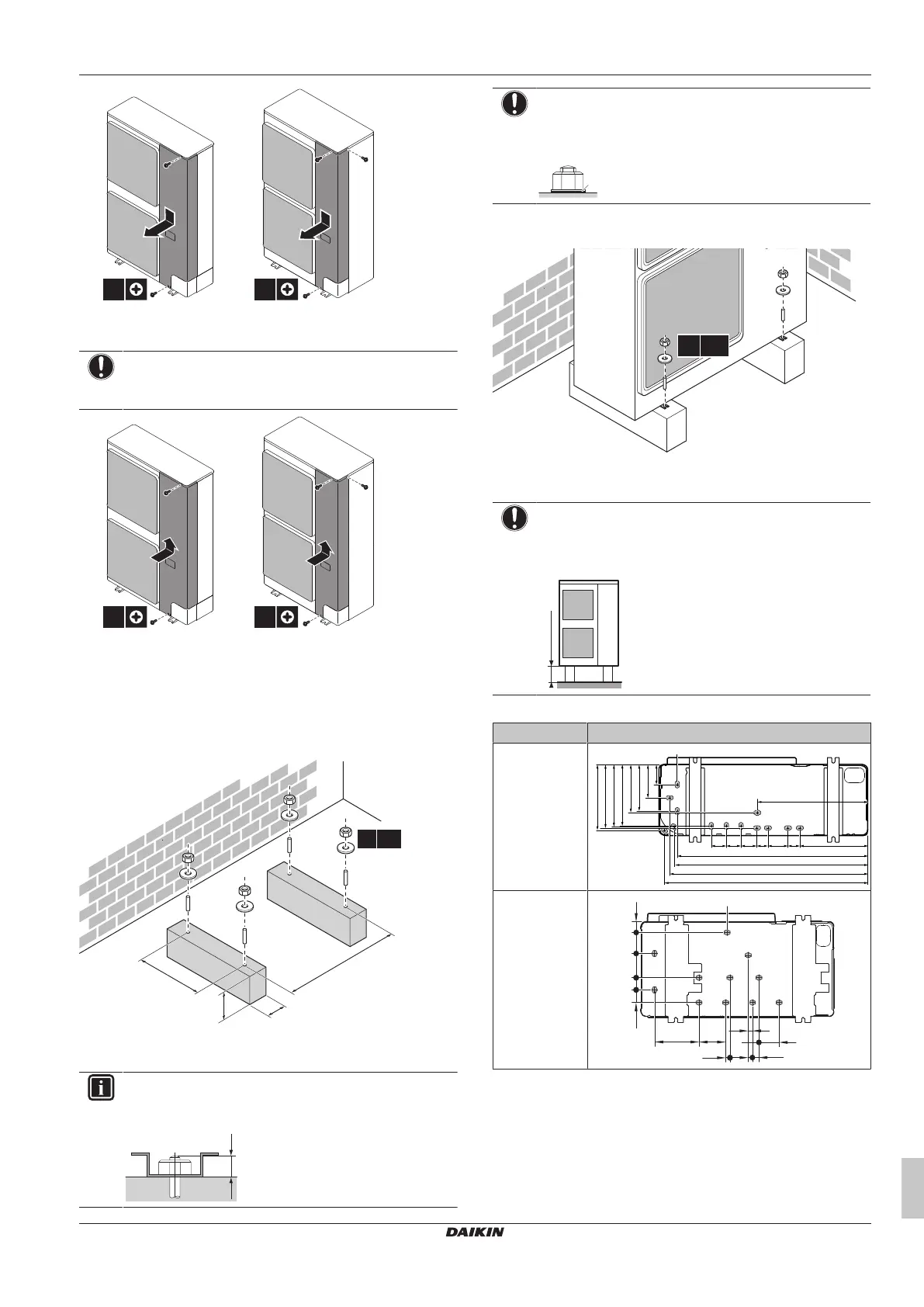

14 Unit installation
Installation and operation manual
25
ERA200~300AMYFB
Inverter outdoor unit for AHU option kit and air curtains
4P780153-1 – 2024.07
2× 3×
ERA200
ERA250+300
14.2.2 To close the outdoor unit
NOTICE
When closing the outdoor unit cover, make sure that the
tightening torque does NOT exceed 4.1N•m.
2× 3×
ERA200 ERA250+300
14.3 Mounting the outdoor unit
14.3.1 To provide the installation structure
Prepare four sets of anchor bolts, nuts, and washers (field supply) as
follows:
[mm]
>150
620
ERA200: 350 (345~355)
ERA250+300: 490 (485~495)
4×
M12
a
a Make sure not to cover the drain holes of the bottom
plate of the unit.
INFORMATION
The recommended height of the upper protruding part of
the bolts is 20mm.
20
NOTICE
Fix the outdoor unit to the foundation bolts using nuts with
resin washers (a). If the coating on the fastening area is
stripped off, the metal can rust easily.
a
14.3.2 To install the outdoor unit
4× M12
14.3.3 To provide drainage
NOTICE
If drain holes of the outdoor unit are covered by a mounting
base or by floor surface, raise the unit to provide a free
space of more than 150mm under the outdoor unit.
≥150
mm
Drain holes (dimensions in mm)
Model Bottom view [mm]
ERA200
307
858
872
892
916
5490497266
91
151
211
277
286
297
68
498
218
281
a
ERA250+300
102
118
62
59
216
130
21
20
32
52
98
89
a
a Drain holes
14.3.4 To prevent the outdoor unit from falling
over
In case the unit is installed in places where strong wind can tilt the
unit, take following measure:
